隔膜閥


DIAPHRAGM VALVE

Material : TFM





Model Ball valve
How to use Hand
Action Stem90°
Highest pressure 0.7mpa
Highest temperature 120°C
Lowest temperature -50°C
Constant temperature 60°C

ITEM PART NAME MATERIAL
1 DIAPHRAGM TFM
2 BODY TFM
3 UNION NUT TFM
4 PULL ROD PVDF
5 CYLINDER PVDF,PP
6 O-RING VITON
7 SEAL PTFE
8 HAND PP,PVDF
9 SPRING SUS316

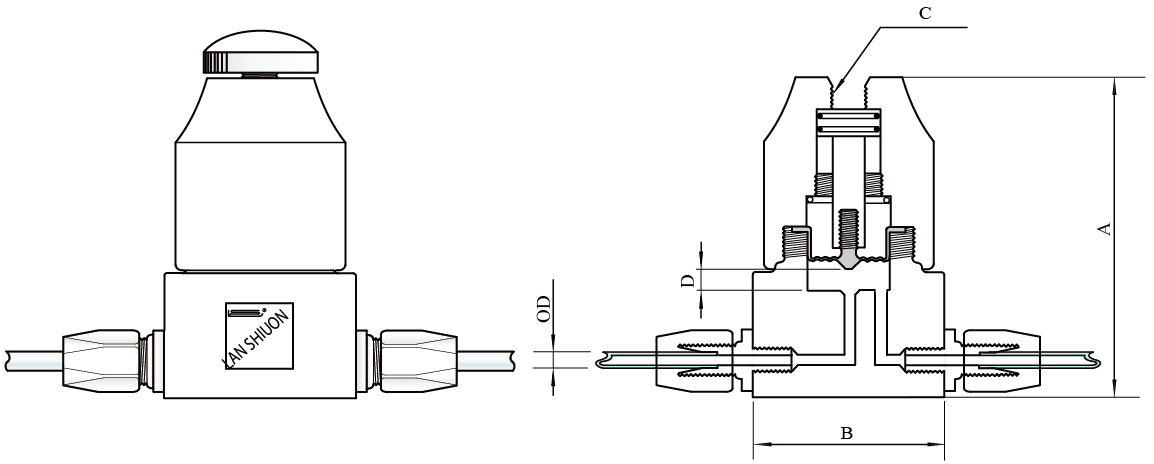

Mm Tube type
NO. OD×ID A B C.NPT D
3PAD-N002 4×2 60 48 1/4" 1.5
3PAD-N004 6×4 70 48 1/4" 1.5
3PAD-N006 8×6 70 50 1/2" 2
3PAD-N008 10×8 96 50 1/2" 2
3PAD-N0010 12×10 96 56 1/2" 2
3PAD-N0016 19×15.8 110 70 1/2" 2.5
3PAD-N0022 25×22 125 85 1/2" 2.5

Inch Tube type
NO. OD×ID A B C.NPT D
3PAD-I004 1/8"×0.086" 60 48 1/4" 1.5
3PAD-I006 1/4"×5/32" 70 48 1/4" 1.5
3PAD-I008 3/8"×1/4" 70 50 1/2" 2
3PAD-I0010 1/2"×3/8" 96 56 1/2" 2
3PAD-I0016 3/4"×5/8" 110 70 1/2" 2.5
3PAD-I0022 1"×7/8" 125 85 1/2" 2.5
