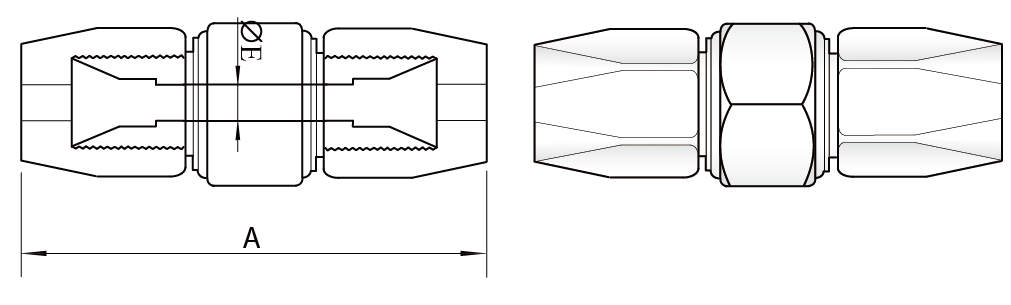

E-TYPE-UNION
Material : TFM
| Model (E-TYPE) |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |
| Mm Tube type |
| NO. |
OD×ID |
A |
ØE |
| E-WY100 |
3×2 |
36.6 |
2.1 |
| E-WY101 |
4×3 |
36.4 |
3.1 |
| E-WY102 |
6×4 |
46 |
4.4 |
| E-WY103 |
8×6 |
51.8 |
6.5 |
| E-WY104 |
10×8 |
60.4 |
8 |
| E-WY105 |
12×10 |
67 |
10 |
| E-WY106 |
19×15.8 |
88.8 |
16 |
| E-WY107 |
25×22 |
105 |
22.2 |
| Inch Tube type |
| NO. |
OD×ID |
A |
ØE |
| E-WY108 |
1/8"×0.086" |
36.6 |
2.1 |
| E-WY109 |
1/4"×5/32" |
46 |
4.4 |
| E-WY110 |
3/8"×1/4" |
60.4 |
8 |
| E-WY111 |
1/2"×3/8" |
67 |
10 |
| E-WY112 |
3/4"×5/8" |
88.8 |
16 |
| E-WY113 |
1"×7/8" |
105 |
22.2 |
| Model (EH-TYPE) |
| Highest pressure |
0.7mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |
| Inch Tube type (EH-TYPE) |
| NO. |
OD×ID |
A |
ØE |
| EH-WY108 |
1/8"×0.086" |
36.6 |
2.1 |
| EH-WY109 |
1/4"×5/32" |
46 |
4.4 |
| EH-WY110 |
3/8"×1/4" |
60.4 |
8 |
| EH-WY111 |
1/2"×3/8" |
67 |
10 |
| EH-WY112 |
3/4"×5/8" |
88.8 |
16 |
| EH-WY113 |
1"×7/8" |
105 |
22.2 |
