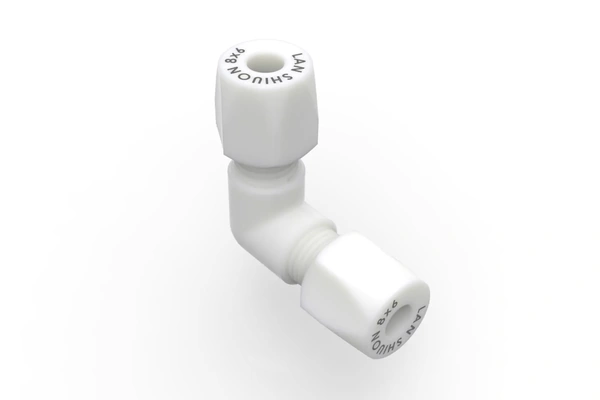

L TYPE UNION ELBOW
Material : TFM
| Model (L-TYPE PTFE UNION ELBOW) |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

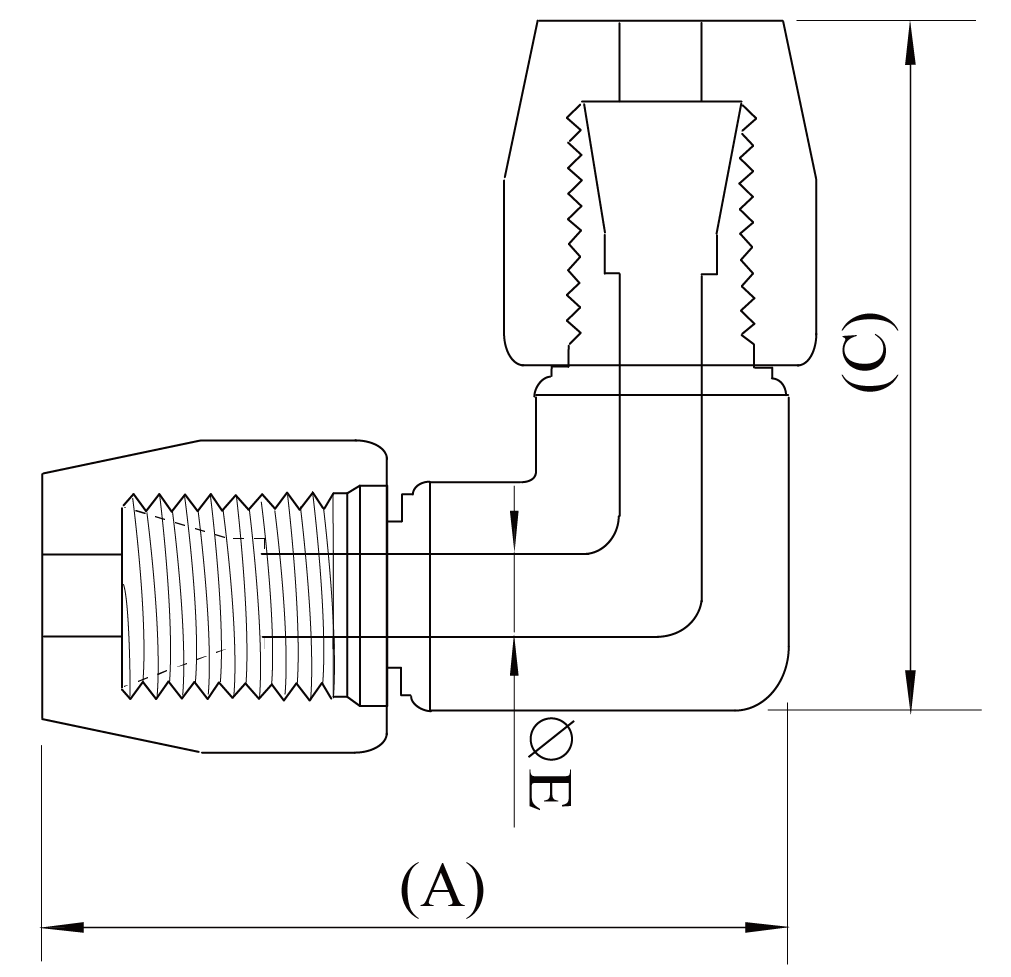

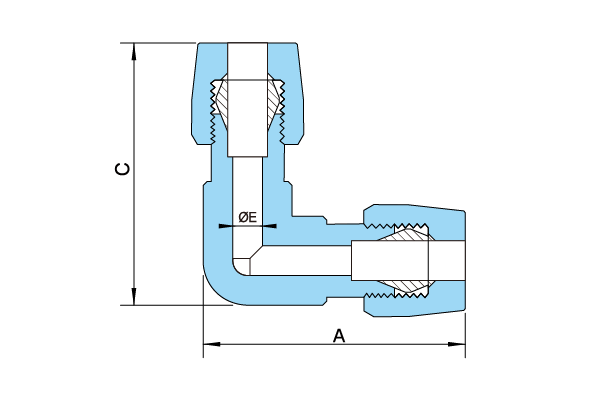

| Mm Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE |
| L-WY010 |
3×2 |
22.8 |
22.8 |
2.1 |
| L-WY011 |
4×3 |
22.7 |
22.7 |
3.1 |
| L-WY012 |
6×4 |
30 |
30 |
4.4 |
| L-WY013 |
8×6 |
35.9 |
35.9 |
6.5 |
| L-WY014 |
10×8 |
38.2 |
38.2 |
8 |
| L-WY015 |
12×10 |
47 |
47 |
10 |
| L-WY016 |
19×15.8 |
60.4 |
60.4 |
16 |
| L-WY017 |
25×22 |
69 |
69 |
22.2 |
| Inch Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE |
| L-WY018 |
1/8"×0.086" |
22.8 |
22.8 |
2.1 |
| L-WY019 |
1/4"×5/32" |
30 |
30 |
4.4 |
| L-WY020 |
3/8"×1/4" |
38.2 |
38.2 |
8 |
| L-WY021 |
1/2"×3/8" |
47 |
47 |
10 |
| L-WY022 |
3/4"×5/8" |
60.4 |
60.4 |
16 |
| L-WY023 |
1"×7/8" |
69 |
69 |
22.2 |

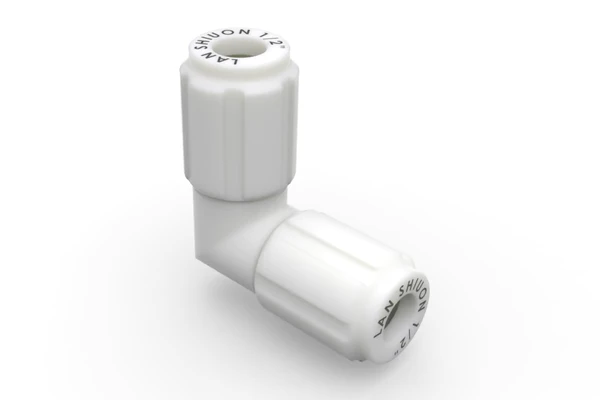

| Model (LH-TYPE PTFE UNION ELBOW) |
| Highest pressure |
0.7mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

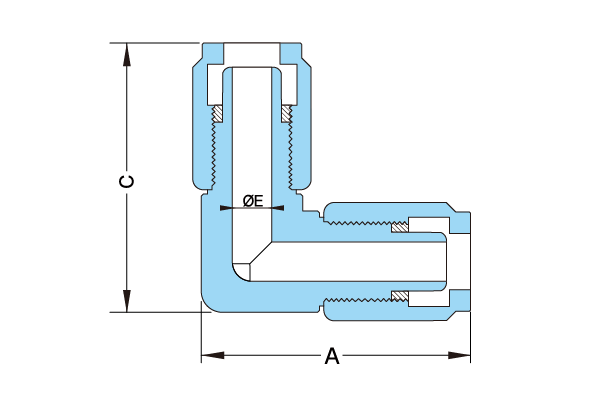

| Inch Tube type (LH-TYPE UNION ELBOW) |
| NO. |
OD×ID |
(A) |
(C) |
ØE |
| LH-WY018 |
1/8"×0.086" |
22.8 |
22.8 |
2.1 |
| LH-WY019 |
1/4"×5/32" |
30 |
30 |
4.4 |
| LH-WY020 |
3/8"×1/4" |
38.2 |
38.2 |
8 |
| LH-WY021 |
1/2"×3/8" |
47 |
47 |
10 |
| LH-WY022 |
3/4"×5/8" |
60.4 |
60.4 |
16 |
| LH-WY023 |
1"×7/8" |
69 |
69 |
22.2 |
