P-TYPE-UNION
Material : TFM
| Model (P-TYPE) |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

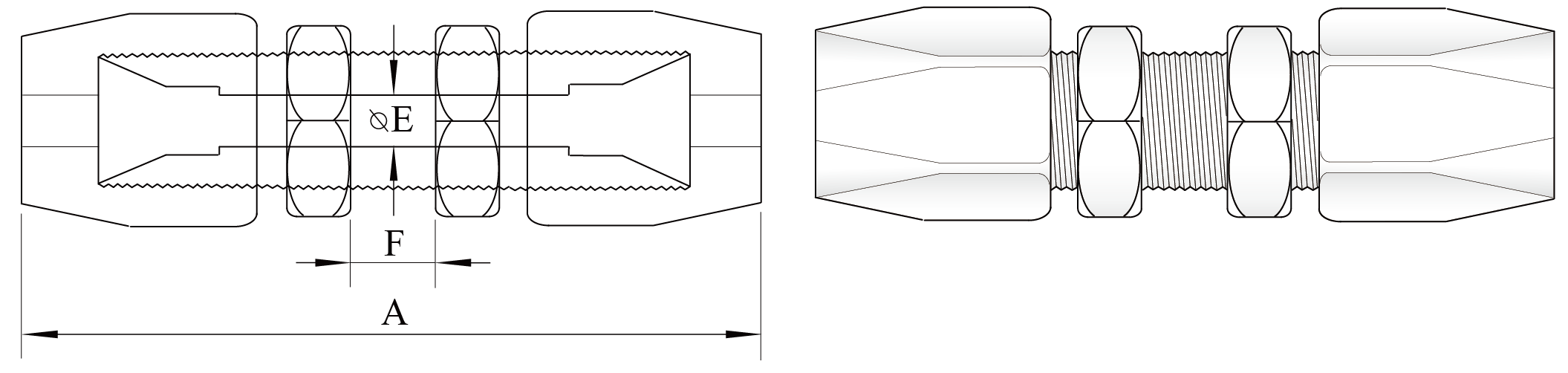

| Mm Tube type |
| NO. |
OD×ID |
A |
ØE |
F |
| P-WY111 |
3×2 |
40 |
2.1 |
3-5 |
| P-WY112 |
4×3 |
40 |
3.1 |
3-5 |
| P-WY113 |
6×4 |
50 |
4.3 |
5-8 |
| P-WY114 |
8×6 |
53 |
6.3 |
5-8 |
| P-WY115 |
10×8 |
64 |
8.2 |
6-10 |
| P-WY116 |
12×10 |
70 |
10.2 |
6-10 |
| P-WY117 |
19×15.8 |
95 |
16 |
8-12 |
| P-WY118 |
25×22 |
115 |
22.2 |
8-12 |
| Inch Tube type |
| NO. |
OD×ID |
A |
ØE |
F |
| P-WY119 |
1/8"×0.086" |
40 |
2.1 |
3-5 |
| P-WY120 |
1/4"×5/32" |
50 |
4.3 |
5-8 |
| P-WY121 |
3/8" |
64 |
6.3 |
6-10 |
| P-WY122 |
1/2"×3/8" |
70 |
9.6 |
6-10 |
| P-WY123 |
3/4"×5/8" |
95 |
16 |
8-12 |
| P-WY124 |
1"×7/8" |
115 |
22.2 |
8-12 |
