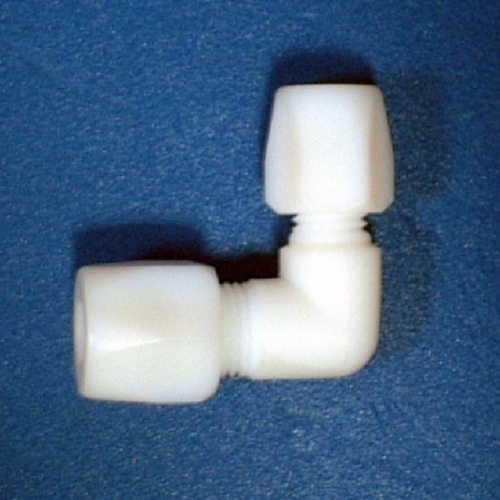

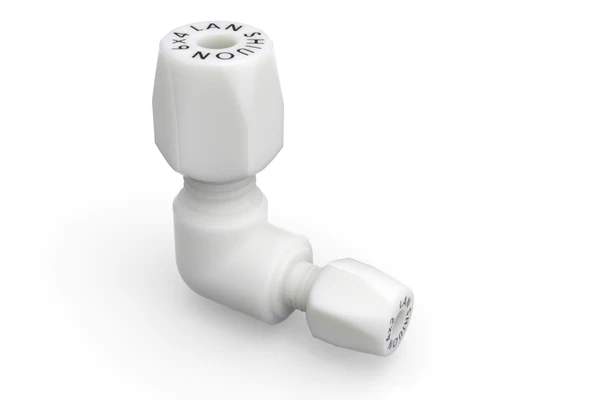

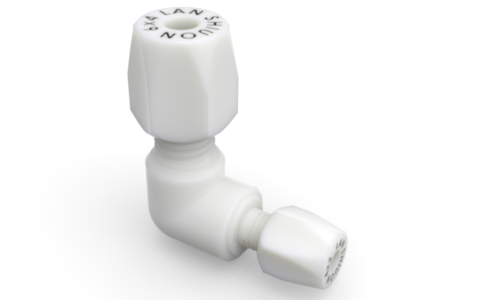

RL-TYPE-REDUCING-ELBOW
Material : TFM
| Model (RL-TYPE) | |
|---|---|
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |
| Mm Tube type | ||||||||
|---|---|---|---|---|---|---|---|---|

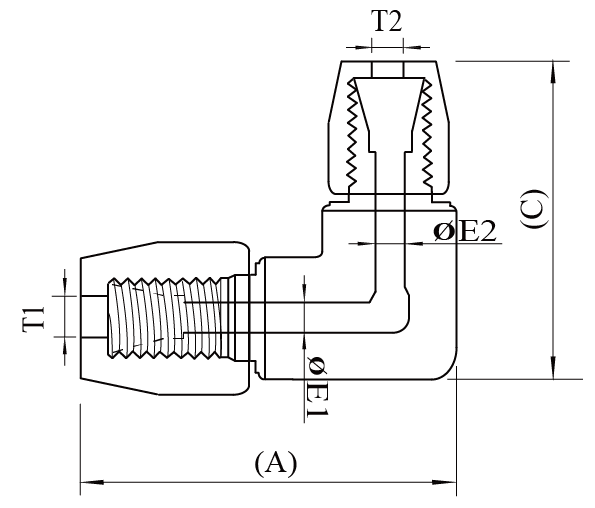

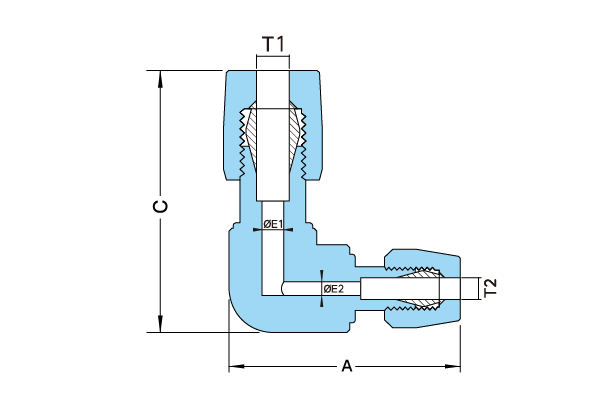

| NO. | T1 | T2 | (A) | (C) | ØE1 | ØE2 | ||
| RL-WY620 | 4×3 | 3×2 | 22.7 | 22.7 | 3.1 | 2.1 | ||
| RL-WY621 | 6×4 | 4×2 4×3 3×2 |
38.2 | 38.2 | 4 | 2 | ||
| RL-WY622 | 8×6 | 6×4 | 38.2 | 38.2 | 6 | 4 | ||
| RL-WY623 | 10×8 | 6×4 | 38.2 | 38.2 | 8 | 4.4 | ||
| RL-WY624 | 12×10 | 10×8 | 47 | 47 | 10 | 8 | ||
| RL-WY625 | 19×15.8 | 12×10 | 70 | 70 | 16 | 10 | ||
| RL-WY626 | 25×22 | 19×15.8 | 80 | 80 | 22.2 | 16 | ||
| Inch Tube type | ||||||
|---|---|---|---|---|---|---|
| NO. | T1 | T2 | (A) | (C) | ØE1 | ØE2 |
| RL-WY627 | 1/4"×5/32" | 1/8"×0.086" | 38.2 | 38.2 | 4 | 2 |
| RL-WY628 | 3/8"×1/4" | 1/4"×5/32" | 38.2 | 38.2 | 8 | 4.4 |
| RL-WY629 | 1/2"×3/8" | 3/8"×1/4" | 47 | 47 | 10 | 8 |
| RL-WY630 | 3/4"×5/8" | 1/2"×3/8" | 70 | 70 | 16 | 10 |
| RL-WY631 | 1"×7/8" | 3/4"×5/8" | 80 | 80 | 22.2 | 16 |
