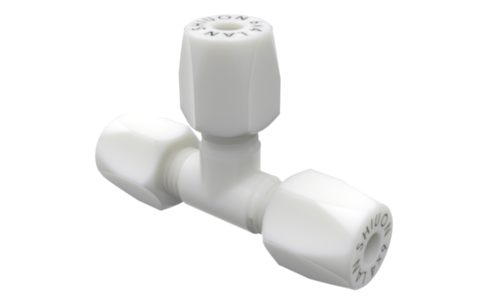

T-TYPE-UNION-TEE
Material : TFM
| Model |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

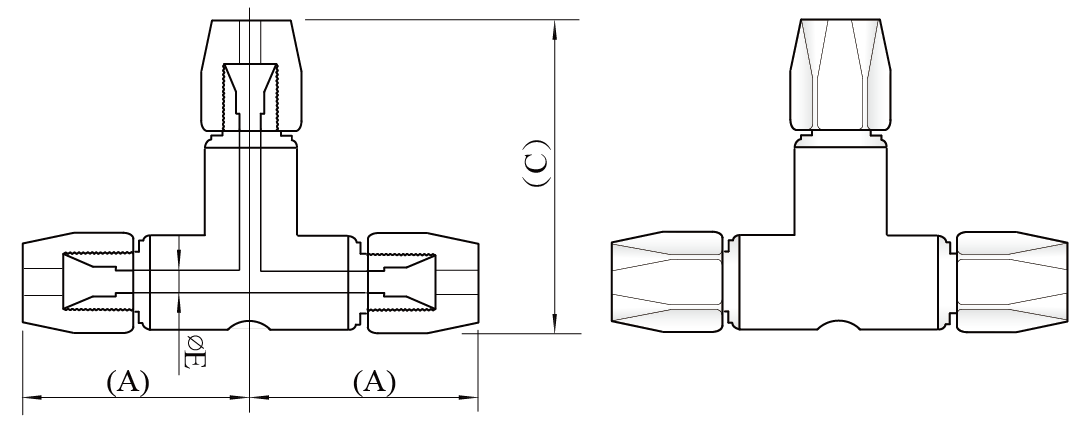

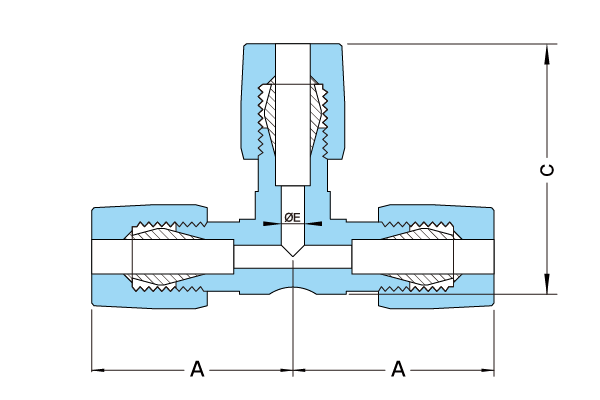

| Mm Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE |
| T-WY201 |
3×2 |
22.8 |
22.8 |
2.1 |
| T-WY202 |
4×3 |
22.7 |
22.7 |
3.1 |
| T-WY203 |
6×4 |
30 |
30 |
4.4 |
| T-WY204 |
8×6 |
35.9 |
35.9 |
6.5 |
| T-WY205 |
10×8 |
38.2 |
38.2 |
8 |
| T-WY206 |
12×10 |
47 |
47 |
10 |
| T-WY207 |
19×15.8 |
60.4 |
60.4 |
16 |
| T-WY208 |
25×22 |
69 |
69 |
22.2 |
| Inch Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE |
| T-WY209 |
1/8"×0.086" |
22.8 |
22.8 |
2.1 |
| T-WY210 |
1/4"×5/32" |
30 |
30 |
4.4 |
| T-WY211 |
3/8"×1/4" |
38.2 |
38.2 |
8 |
| T-WY212 |
1/2"×3/8" |
47 |
47 |
10 |
| T-WY213 |
3/4"×5/8" |
60.4 |
60.4 |
16 |
| T-WY214 |
1"×7/8" |
69 |
69 |
22.2 |
