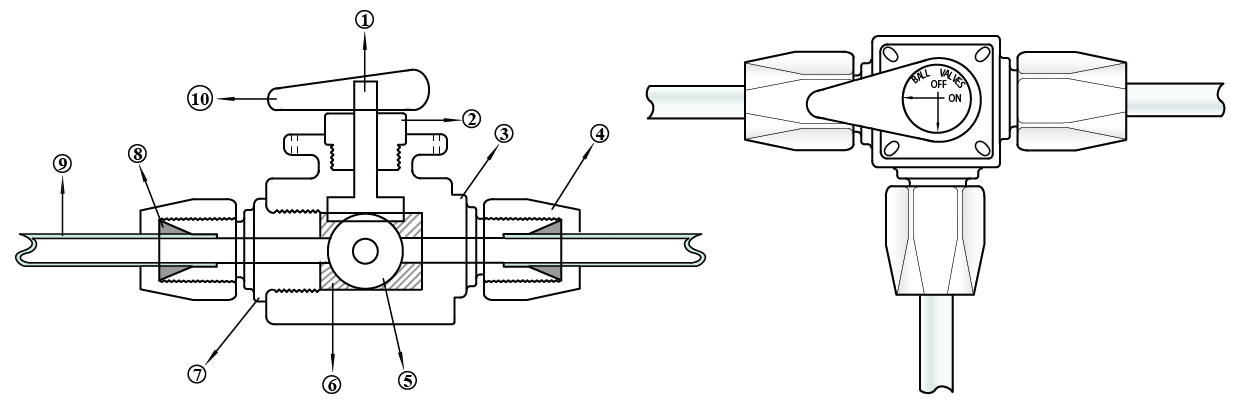

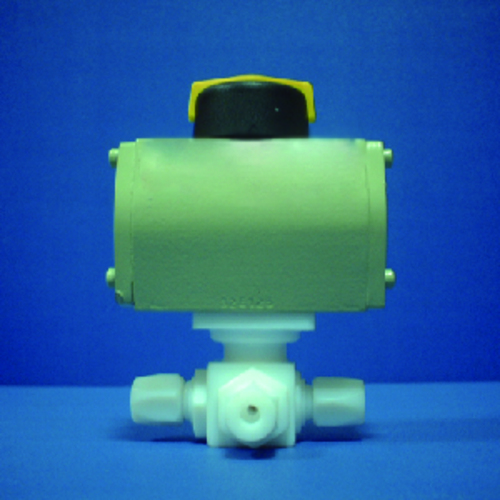

ITEM | PART NAME | MATERIAL | ||
---|---|---|---|---|
1 | STEM | PEEK,PCTFE,PVDF | ||
2 | GLAND | TFM | ||
3 | BODY | TFM | ||
4 | CAP | TFM | ||
5 | BALL | PEEK,PCTFE,PVDF | ||
6 | SEAT | PTFE | ||
7 | UNION NUT | TFM | ||
8 | PRIMARY SEAL | PTFE | ||
9 | TUBE | PFA,PTFE,FEP | ||
10 | HANDLE | PVDF,POM |
Model | Change Ball valve |
---|---|
How to use | Hand pneumatic electromagnetic valve |
Action | Stem90° |
Highest pressure | 0.7mpa |
Highest temperature | 120°C |
Lowest temperature | -50°C |
Constant temperature | 60°C |
KIMDS | PART NAME | MATERIAL | |
---|---|---|---|
It's the part of
contacting of liquid. |
7 | UNION NUT | TFM |
9 | TUBE | PFA,PTFE,FEP | |
6 | SEAT | PTFE | |
5 | BALL | PEEK,PCTFE,PVDF | |
1 | STEM | PEEK,PCTFE,PVDF | |
3 | BODY | TFM |

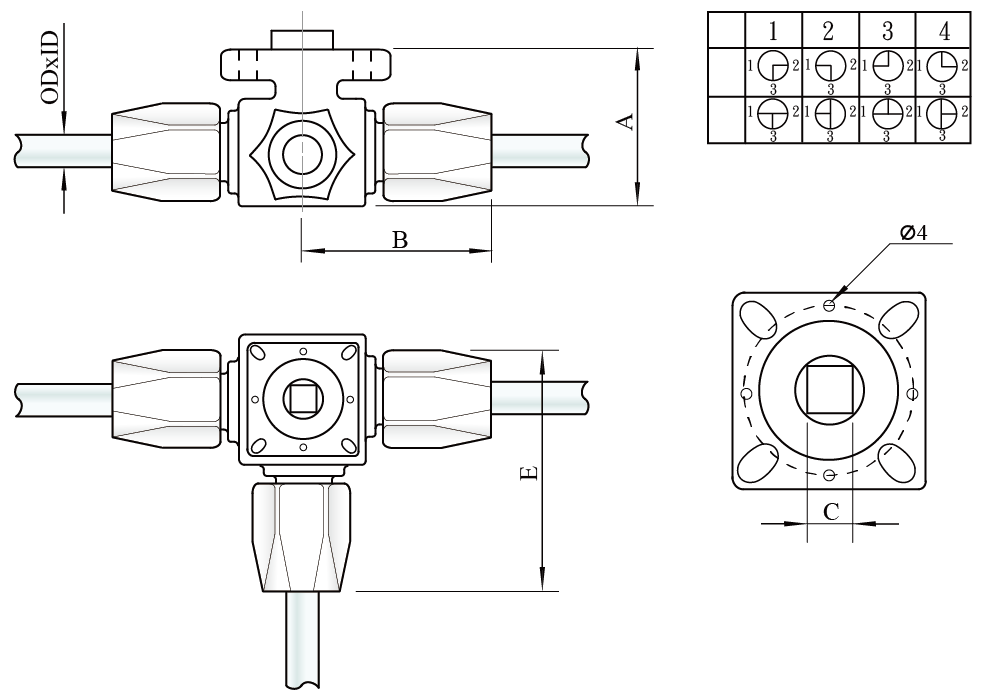

Mm Tube type | ||||||||
---|---|---|---|---|---|---|---|---|
NO. | OD×ID | A | B | C | E | D-ISO-5211E | ||
3PAB-N002 | 4×2 | 40 | 30 | 9 | 56 | F03/F04 | ||
3PAB-N004 | 6×4 | 47 | 33 | 9 | 61 | F03/F04 | ||
3PAB-N006 | 8×6 | 60 | 50 | 9 | 61 | F03/F04 | ||
3PAB-N008 | 10×8 | 60 | 50 | 9 | 68 | F03/F04 | ||
3PAB-N0010 | 12×10 | 60 | 50 | 9 | 85 | F03/F04 | ||
3PAB-N0016 | 19×15.8 | 60 | 56 | 9 | 85 | F03/F04 | ||
3PAB-N0022 | 25×22 | 75 | 70 | 11 | 105 | F04/F05 |
Inch Tube type | ||||||
---|---|---|---|---|---|---|
NO. | OD×ID | A | B | C | E | D-ISO-5211E |
3PAB-I004 | 1/8"×0.086" | 40 | 30 | 9 | 56 | F03/F04 |
3PAB-I006 | 1/4"×5/32" | 47 | 33 | 9 | 61 | F03/F04 |
3PAB-I008 | 3/8"×1/4" | 60 | 50 | 9 | 61 | F03/F04 |
3PAB-I0010 | 1/2"×3/8" | 60 | 50 | 9 | 68 | F03/F04 |
3PAB-I0016 | 3/4"×5/8" | 60 | 56 | 9 | 85 | F03/F04 |
3PAB-I0022 | 1"×7/8" | 75 | 70 | 11 | 105 | F04/F05 |
