BS TYPE

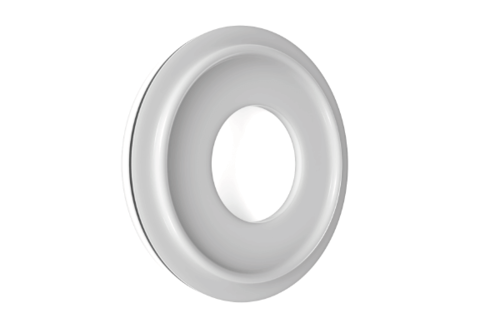

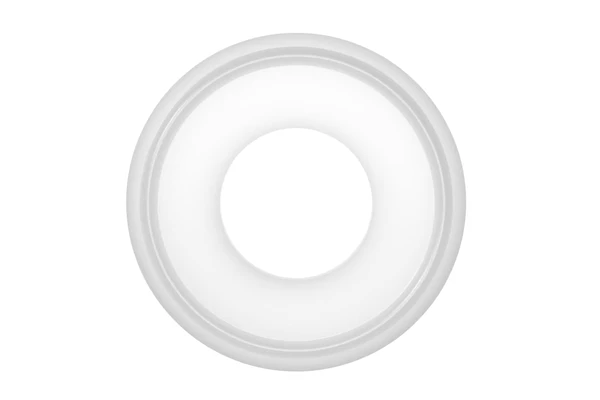

BS-TYPE CLAMP GASKET
Tri Clamp PTFE Envelope Gaskets
Material: 100% PTFE O-RING
Rubber gasket material：VITON with FDA EPDM
| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 4 | 21.8 | 4 | 4.6 |
| 6 | 21.8 | 6 | 4.6 |
| 8 | 21.8 | 8 | 4.6 |
| 10a | 21.8 | 9.4 | 4.6 |
| 10b | 21.8 | 10 | 4.6 |
| 12 | 21.8 | 12 | 4.6 |
| 14 | 21.8 | 14 | 4.6 |
Material:100% PTFE
Rubber gasket material：VITON with FDAEPDM
| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 1" | 50.2 | 22.5 | 4.6 |
| 1-1/2" | 50.2 | 34.9 | 4.6 |
| 2" | 63.5 | 47.6 | 4.6 |
| 2-1/2" | 77.7 | 60.5 | 4.6 |
| 3" | 90.5 | 73.2 | 4.6 |
| 4" | 118.4 | 97.7 | 4.6 |
Material:100% PTFE
Rubber gasket material：VITON with FDA EPDM
| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 25 | 50.5 | 22.8 | 5.12 |
| 32 | 50.5 | 31.5 | 5.12 |
| 40 | 50.5 | 35.8 | 5.12 |
| 50 | 64 | 48.8 | 5.12 |
| 65 | 77.5 | 60.5 | 5.12 |
| 80 | 91 | 73.2 | 5.12 |
| 85 | 106 | 85.1 | 5.12 |
| 100 | 119 | 97.9 | 5.12 |
| 120 | 130 | 110.5 | 5.12 |
| 140 | 155 | 135.9 | 5.12 |
| 165 | 183 | 163.3 | 5.12 |
| 200 | 233.5 | 214.1 | 5.12 |
