KIMDS | PART NAME | MATERIAL | |
---|---|---|---|
It's the part of contacting of liquid. |
1 | CAP | TFM |
2 | SPRING | SUS316 | |
3 | BODY | TFM | |
4 | BALL | PTFE | |
7 | TUBE | PFA,PTFE,FEP |

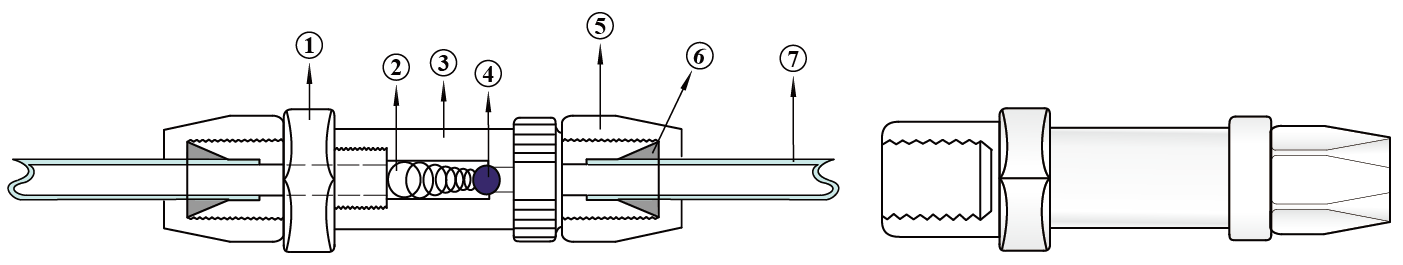

ITEM | PART NAME | MATERIAL |
---|---|---|
1 | CAP | TFM |
2 | SPRING | SUS316 |
3 | BODY | TFM |
4 | BALL | PTFE |
5 | UNION NUT | TFM |
6 | PRIMRY SEAL | PTFE |
7 | TUBE | PFA,EFP,PTFE |

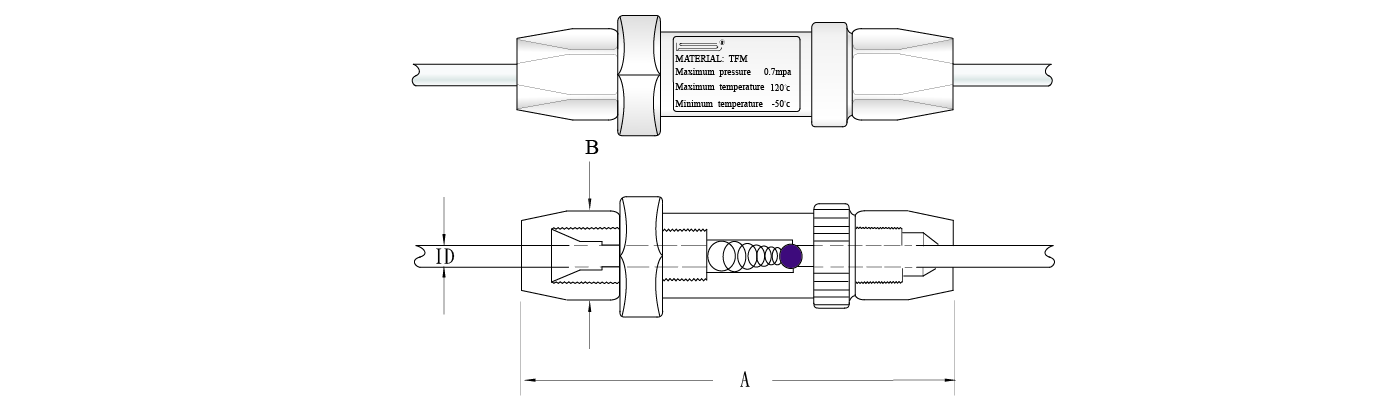

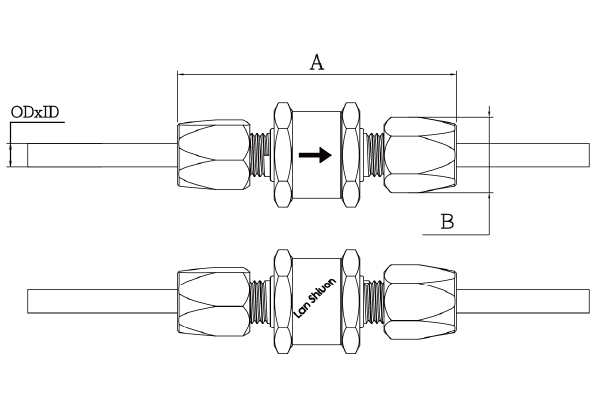

Mm Tube Type | |||
---|---|---|---|
NO. | OD×ID | A | B |
CPAB-N002 | 4×2 | 50 | 12 |
CPAB-N004 | 6×4 | 58 | 16 |
CPAB-N006 | 8×6 | 63.5 | 18.55 |
CPAB-N008 | 10×8 | 70 | 22 |
CPAB-N010 | 12×10 | 80 | 25 |
CPAB-N016 | 19×15.8 | 90 | 45 |
CPAB-N022 | 25×22 | 105 | 50 |
Inch Tube Type | |||
---|---|---|---|
NO. | OD×ID | A | B |
CPAB-I004 | 1/8"×0.086" | 50 | 16 |
CPAB-I006 | 1/4"×5/32" | 63.5 | 18.55 |
CPAB-I008 | 3/8"×1/4" | 70 | 22 |
CPAB-I010 | 1/2"×3/8" | 80 | 25 |
CPAB-I016 | 3/4"×5/8" | 90 | 45 |
CPAB-I022 | 1"×7/8" | 105 | 50 |
Model | Cheek valve |
---|---|
How to use | Automatic |
Action | Stem90° |
Highest pressure | 0.7mpa |
Highest temperature | 120°C |
Lowest temperature | -50°C |
Constant temperature | 60°C |
