CS TYPE

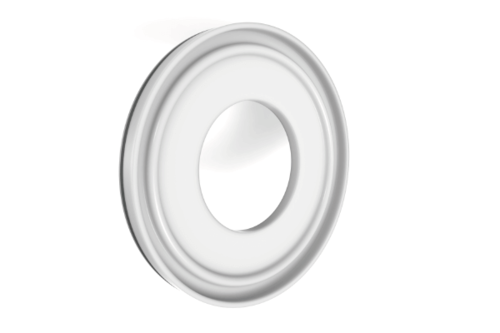

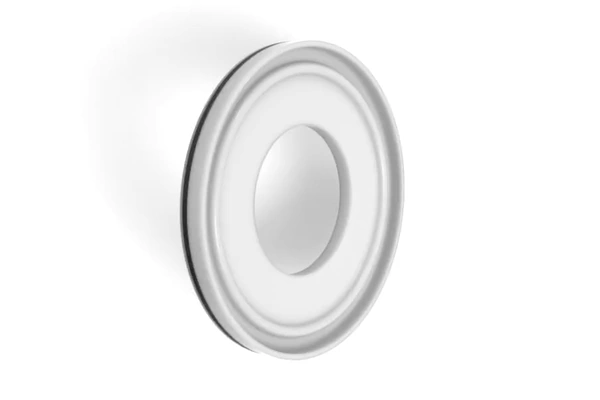

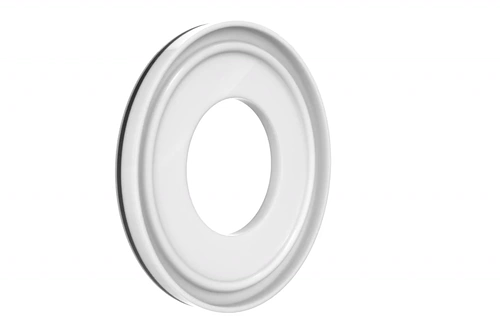

CS-TYPE CLAMP GASKET
(ES)DIN
Material : 100% PTFE
TFM+50%SS316

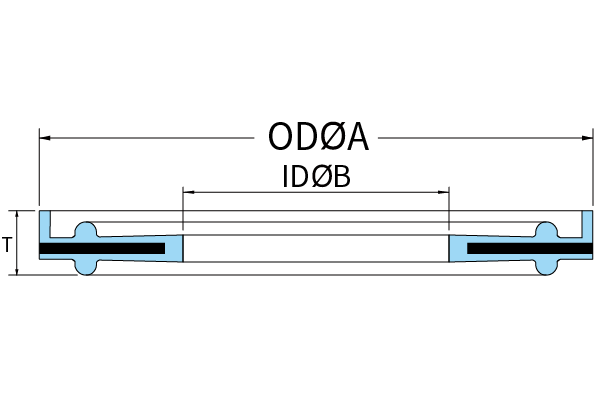

| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 8 | 36.2 | 8 | 6.2 |
| 10 | 36.2 | 10 | 6.2 |
| 15 | 36.2 | 16 | 6.2 |
| 20 | 36.2 | 20 | 6.2 |
| 10 | 52.7 | 10 | 6.2 |
| 15 | 52.7 | 16 | 6.2 |
| 20 | 52.7 | 20 | 6.2 |
| 25 | 52.7 | 26 | 6.2 |
| 32 | 52.7 | 32 | 6.2 |
| 40 | 52.7 | 38 | 6.2 |
| 50 | 66.2 | 50 | 6.2 |
| 65 | 93.2 | 66 | 6.2 |
| 80 | 108.2 | 81 | 6.2 |
| 100 | 121.2 | 100 | 6.2 |
| 125 | 157.2 | 125 | 6.2 |
| 150 | 185.2 | 150 | 6.2 |
| 200 | 235.7 | 200 | 6.2 |
