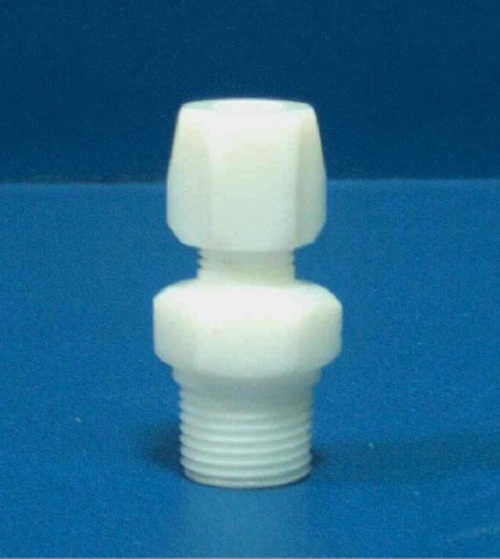

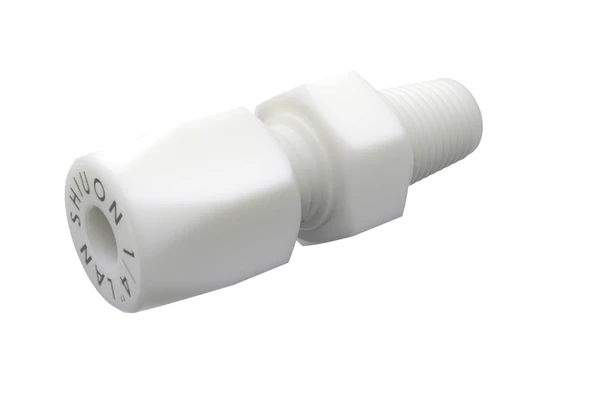

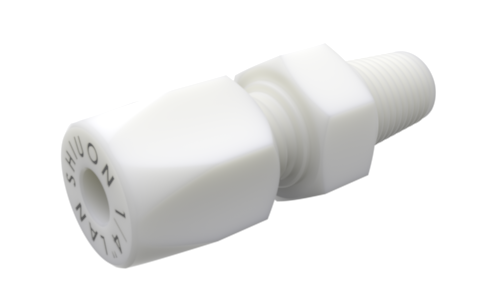

D-TYPE MALE CONNECTOR
Material : TFM

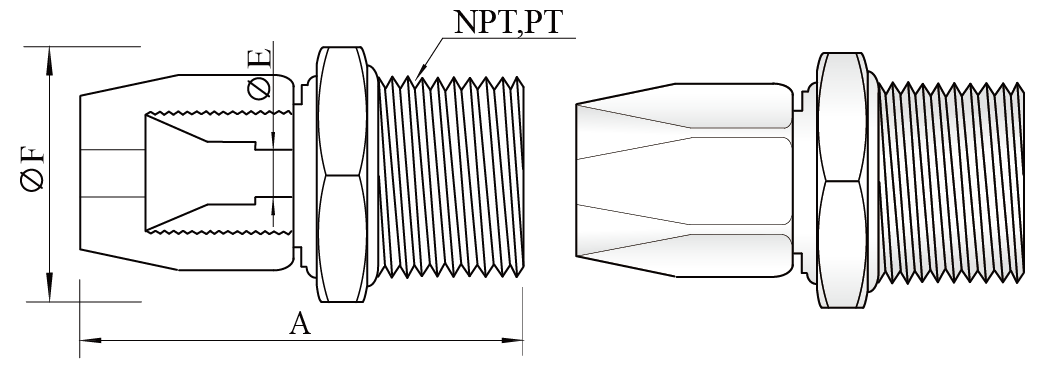

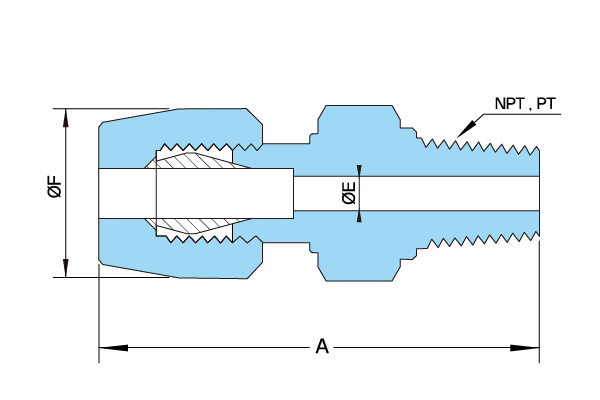

D-TYPE MALE CONNECTOR
| mm Tube Type | |||||||
|---|---|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT | ||
| D-WY001 | 3×2 | 30.8 | 2.1 | 12 | 1/8" | ||
| D-WY002 | 4×3 | 30.7 | 3.1 | 12 | 1/8" | ||
| D-WY003 | 6×4 | 35.5 | 4.2 | 16 | 1/4" | ||
| D-WY004 | 8×6 | 42.4 | 6.2 | 19 | 3/8" | ||
| D-WY005 | 10×8 | 50.7 | 8.1 | 19 | 3/8" | ||
| D-WY006 | 12×10 | 56 | 10.2 | 22 | 1/2" | ||
| D-WY007 | 19×15.8 | 68.4 | 16 | 38 | 3/4" | ||
| D-WY008 | 25×22 | 82 | 22.2 | 50 | 1" | ||
| Inch Tube Type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT |
| D-WY009 | 1/8"×0.086" | 30.8 | 2.1 | 12 | 1/8" |
| D-WY0010 | 1/4"×5/32" | 35.5 | 4.2 | 16 | 1/4" |
| D-WY0011 | 3/8"×1/4" | 46.7 | 6.2 | 19 | 3/8" |
| D-WY0012 | 1/2"×3/8" | 56 | 10.2 | 22 | 1/2" |
| D-WY0013 | 3/4"×5/8" | 68.4 | 16 | 38 | 3/4" |
| D-WY0014 | 1"×7/8" | 82 | 22.2 | 50 | 1" |

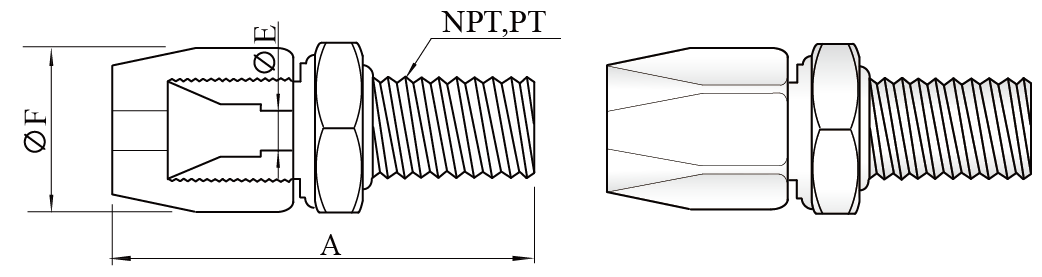

D-TYPE MALE CONNECTOR
| mm Tube Type | |||||||
|---|---|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT | ||
| D-WY0015 | 3×2 | 30.8 | 2.1 | 12 | 1/4" | ||
| D-WY0016 | 4×3 | 30.7 | 3.1 | 12 | 1/4" | ||
| D-WY0017 | 6×4 | 35.5 | 4.2 | 16 | 1/8"，1/2" | ||
| D-WY0018 | 8×6 | 42.4 | 6.2 | 19 | 1/2"，3/4" | ||
| D-WY0019 | 10×8 | 50.7 | 8.1 | 19 | 1/2"，3/4" | ||
| D-WY0020 | 12×10 | 56 | 10.2 | 22 | 3/4" | ||
| D-WY0021 | 19×15.8 | 68.4 | 16 | 38 | 1" | ||
| D-WY0022 | 25×22 | 82 | 22.2 | 50 | 1" | ||
| Inch Tube Type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT |
| D-WY0023 | 1/8"×0.086" | 30.8 | 2.1 | 12 | 1/4" |
| D-WY0024 | 1/4"×5/32" | 35.5 | 4.2 | 16 | 3/8" |
| D-WY0025 | 3/8"×1/4" | 46.7 | 6.2 | 19 | 1/2" |
| D-WY0026 | 1/2"×3/8" | 56 | 10.2 | 22 | 3/4" |
| D-WY0027 | 3/4"×5/8" | 68.4 | 16 | 38 | 1" |
| D-WY0028 | 1"×7/8" | 82 | 22.2 | 50 | 1" |

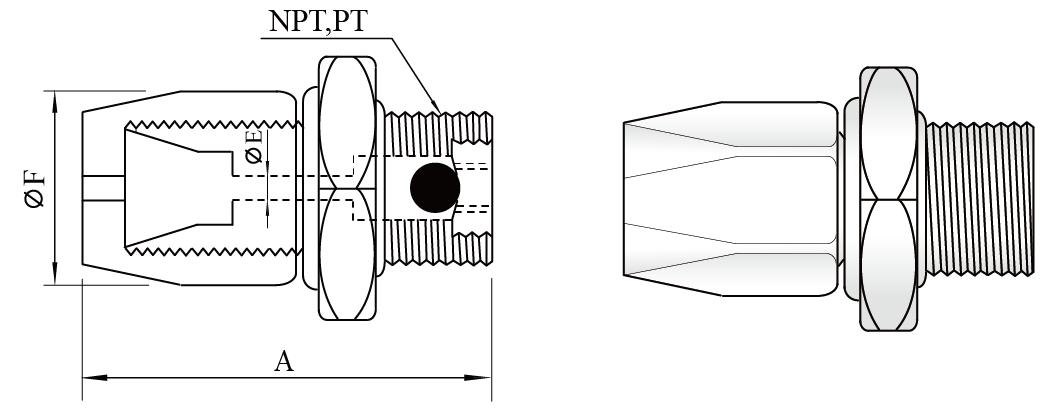

D-TYPE - CHECK VALVE
| mm Tube Type | |||||||
|---|---|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT | ||
| D-WY001 | 3×2 | 30.8 | 2.1 | 12 | 1/8" | ||
| D-WY002 | 4×3 | 30.7 | 3.1 | 12 | 1/8" | ||
| D-WY003 | 6×4 | 35.5 | 4.2 | 16 | 1/4" | ||
| D-WY004 | 8×6 | 42.4 | 6.2 | 19 | 3/8" | ||
| D-WY005 | 10×8 | 50.7 | 8.1 | 19 | 3/8" | ||
| D-WY006 | 12×10 | 56 | 10.2 | 22 | 1/2" | ||
| D-WY007 | 19×15.8 | 68.4 | 16 | 38 | 3/4" | ||
| D-WY008 | 25×22 | 82 | 22.2 | 50 | 1" | ||
| Inch Tube Type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT |
| D-WY009 | 1/8"×0.086" | 30.8 | 2.1 | 12 | 1/8" |
| D-WY0010 | 1/4"×5/32" | 35.5 | 2.1 | 12 | 1/4" |
| D-WY0011 | 3/8"×1/4" | 46.7 | 6.2 | 19 | 3/8" |
| D-WY0012 | 1/2"×3/8" | 56 | 10.2 | 22 | 1/2" |
| D-WY0013 | 3/4"×5/8" | 68.4 | 16 | 38 | 3/4" |
| D-WY0014 | 1"×7/8" | 82 | 22.2 | 50 | 1" |

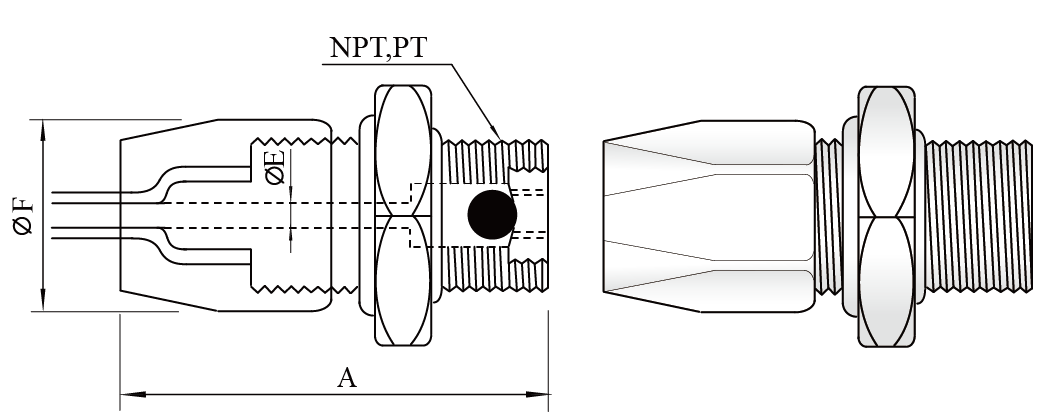

D-TYPE - CHECK VALVE
| mm Tube Type | |||||||
|---|---|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT | ||
| D-WY0015 | 3×2 | 30.8 | 2.1 | 12 | 1/4" | ||
| D-WY0016 | 4×3 | 30.7 | 3.1 | 12 | 1/4" | ||
| D-WY0017 | 6×4 | 35.5 | 4.2 | 16 | 1/8"‚1/2" | ||
| D-WY0018 | 8×6 | 42.4 | 6.2 | 19 | 1/2"‚3/4" | ||
| D-WY0019 | 10×8 | 50.7 | 8.1 | 19 | 1/2"‚3/4" | ||
| D-WY0020 | 12×10 | 56 | 10.2 | 22 | 3/4" | ||
| D-WY0021 | 19×15.8 | 68.4 | 16 | 38 | 1" | ||
| D-WY0022 | 25×22 | 82 | 22.2 | 50 | 1" | ||
| Inch Tube Type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ØF | NPT,PT |
| D-WY0023 | 1/8"×0.086" | 30.8 | 2.1 | 12 | 1/4" |
| D-WY0024 | 1/4"×5/32" | 35.5 | 4.2 | 16 | 3/8" |
| D-WY0025 | 3/8"×1/4" | 46.7 | 6.2 | 19 | 1/2" |
| D-WY0026 | 1/2"×3/8" | 56 | 10.2 | 22 | 3/4" |
| D-WY0027 | 3/4"×5/8" | 68.4 | 16 | 38 | 1" |
| D-WY0028 | 1"×7/8" | 82 | 22.2 | 50 | 1" |
| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
|
It's the part of
contacting of liquid. |
1 | CAP | TFM |
| 2 | FILTERABLE | SUS316 | |
| 3 | BODY | TFM | |
| 7 | TUBE | PFA‚PTFE‚FEP |
| ITEM | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| 1 | CAP | TFM | ||
| 2 | FILTERABLE | SUS316 | ||
| 3 | BODY | TFM | ||
| 5 | UNION NUT | TFM | ||
| 6 | PRIMRY SEAL | PTFE | ||
| 7 | TUBE | PFA‚FEP‚PTFE | ||
| Model | Change Ball valve |
|---|---|
| How to use | Automatic |
| Action | Stem90° |
| Highest pressure | 0.7mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |
| mm Tube Type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | ||
| CPAB-N002 | 4×2 | 50 | 12 | ||
| CPAB-N004 | 6×4 | 58 | 16 | ||
| CPAB-N006 | 8×6 | 63.5 | 18.55 | ||
| CPAB-N008 | 10×8 | 70 | 22 | ||
| CPAB-N0010 | 12×10 | 80 | 25 | ||
| CPAB-N0016 | 19×15.8 | 90 | 45 | ||
| CPAB-N0022 | 25×22 | 105 | 50 | ||
| Inch Tube Type | |||
|---|---|---|---|
| NO. | OD×ID | A | B |
| CPAB-I004 | 1/8"×0.086" | 50 | 16 |
| CPAB-I006 | 1/4"×5/32" | 63.5 | 18.55 |
| CPAB-I008 | 3/8"×1/4" | 70 | 22 |
| CPAB-I0010 | 1/2"×3/8" | 80 | 25 |
| CPAB-I0016 | 3/4"×5/8" | 90 | 45 |
| CPAB-I0022 | 1"×7/8" | 105 | 50 |
