(DS)ISO
(T tolerance:+0.2)
Material : 100% PTFE
NBR Material:VITON with FDA EPDM

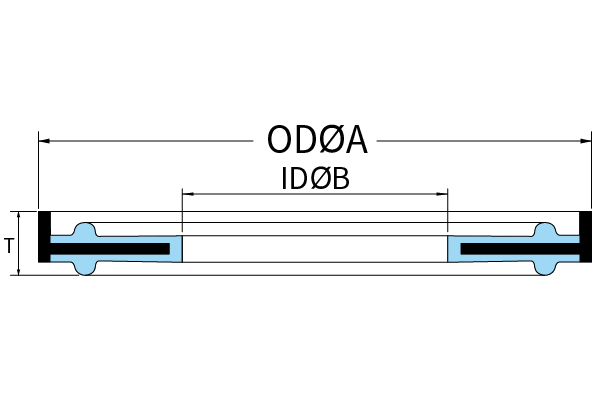

DN | OD | ID | T+0.3 |
---|---|---|---|
8 | 36.2 | 10.5 | 5.4 |
10 | 36.2 | 14.2 | 5.4 |
15 | 36.2 | 18.3 | 5.4 |
15 | 52.7 | 18.3 | 5.4 |
20 | 52.7 | 13.9 | 5.4 |
25 | 52.7 | 29.9 | 5.4 |
32 | 52.7 | 38.6 | 5.4 |
32 | 66.2 | 38.6 | 5.4 |
40 | 66.2 | 44.5 | 5.4 |
50 | 79.7 | 56.6 | 5.4 |
65 | 93.2 | 72.3 | 5.4 |
80 | 108.2 | 84.5 | 5.4 |
100 | 132.2 | 109.9 | 5.4 |
125 | 157.2 | 134.5 | 5.4 |
150 | 185.2 | 163.2 | 5.4 |
200 | 235.7 | 213.9 | 5.4 |
(DS)DIN
(T tolerance.:+0.2)
Material:100% PTFE
NBR Material:VITON with FDA EPDM
DN | OD | ID | T+0.3 |
---|---|---|---|
10 | 36.2 | 10.2 | 5.4 |
15 | 36.2 | 16.2 | 5.4 |
20 | 36.2 | 20.2 | 5.4 |
25 | 52.7 | 26.2 | 5.4 |
32 | 52.7 | 32.2 | 5.4 |
40 | 52.7 | 38.2 | 5.4 |
50 | 66.2 | 50.2 | 5.4 |
65 | 93.2 | 66.2 | 5.4 |
80 | 108.2 | 81.2 | 5.4 |
100 | 121.2 | 100.2 | 5.4 |
125 | 157.2 | 125.2 | 5.4 |
150 | 185.2 | 150.2 | 5.4 |
200 | 235.7 | 200.2 | 5.4 |
