E-TYPE-UNION-INDISE-LYHREAD  |Specifications|TFM Fitting

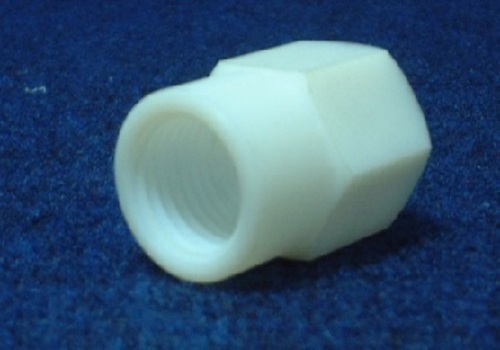

E-TYPE-UNION-INDISE-LYHREAD


Material : TFM

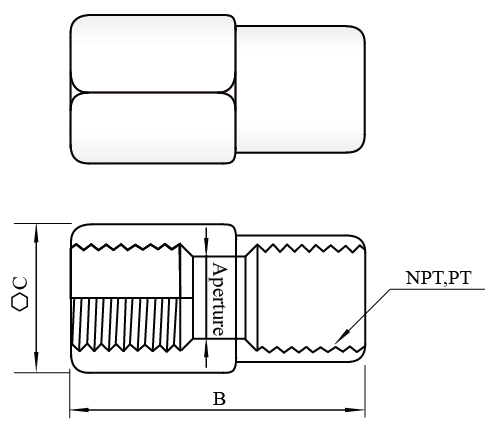

NO. NPT,PT B C Apertureh
E–ZX101 1/8" 28 20 6
E–ZX102 1/4" 34 28 8
E–ZX103 3/8" 34 30 10
E–ZX104 1/2" 45 35 16
E–ZX105 5/8" 48 40 19
E–ZX106 3/4" 55 50 22
E–ZX107 1" 60 55 25

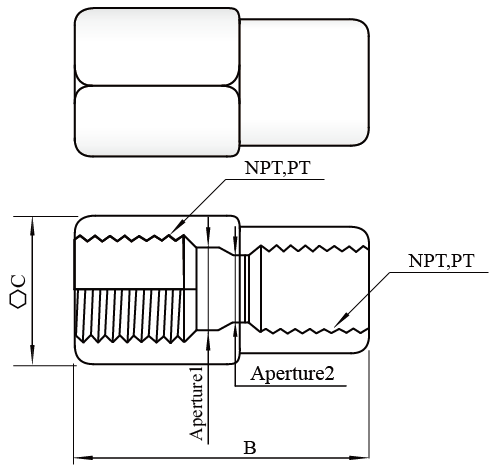

NO. NPT,PT NPT,PT B C Aperture1 Aperture2
RE–ZX211 1/4" 1/8" 34 28 8 4.4
RE–ZX212 3/8" 1/4" 34 30 10 6
RE–ZX213 1/2" 3/8" 45 35 16 8
RE–ZX214 5/8" 1/2" 48 40 19 10
RE–ZX215 3/4" 1/2" 55 50 22 16
RE–ZX216 1" 3/4" 60 55 25 19
