L TYPE-UNION-ELBOW-INDISE-LYHREAD
Material : TFM

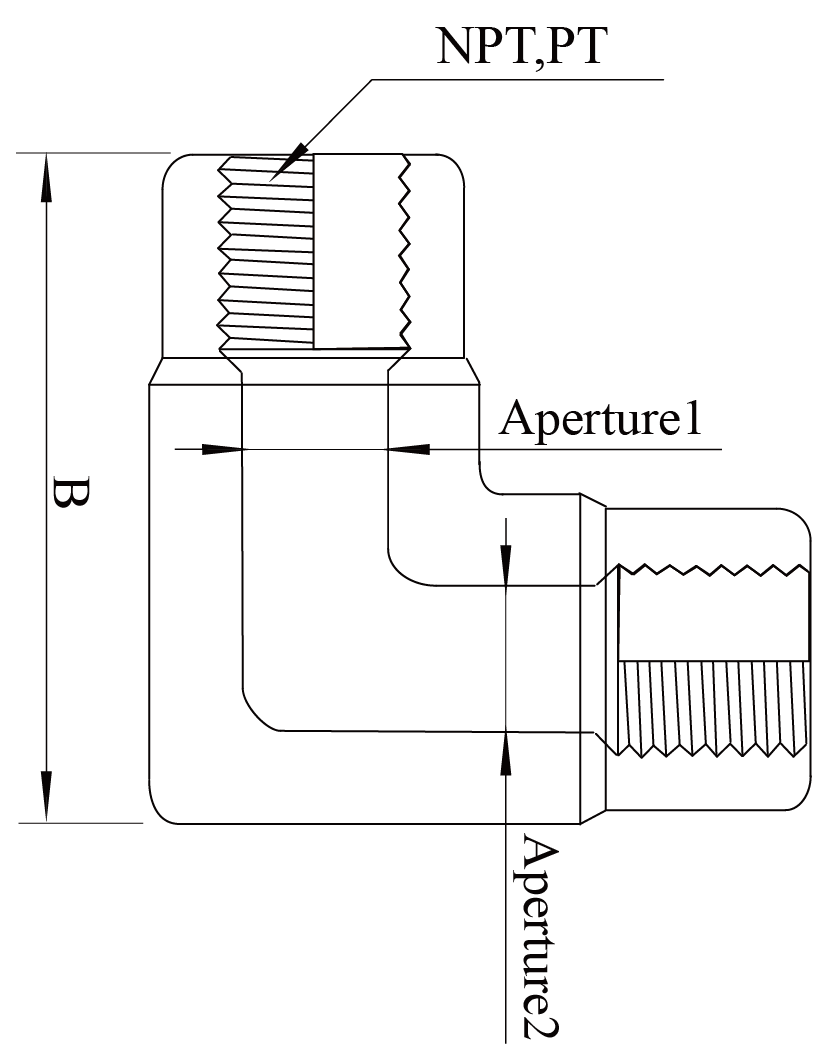

| NO. | NPT,PT(H) | NPT,PT(G) | B | Aperture1 | Aperture2 | ||
|---|---|---|---|---|---|---|---|
| L–ZX320 | 1/8" | 1/8" | 29 | 6 | 6 | ||
| L–ZX321 | 1/4" | 1/4" | 39 | 8 | 8 | ||
| L–ZX322 | 3/8" | 3/8" | 42 | 10 | 10 | ||
| L–ZX323 | 1/2" | 1/2" | 47 | 16 | 16 | ||
| L–ZX324 | 5/8" | 5/8" | 56 | 19 | 19 | ||
| L–ZX325 | 3/4" | 3/4" | 65 | 22 | 22 | ||
| L–ZX326 | 1" | 1" | 70 | 25 | 25 | ||

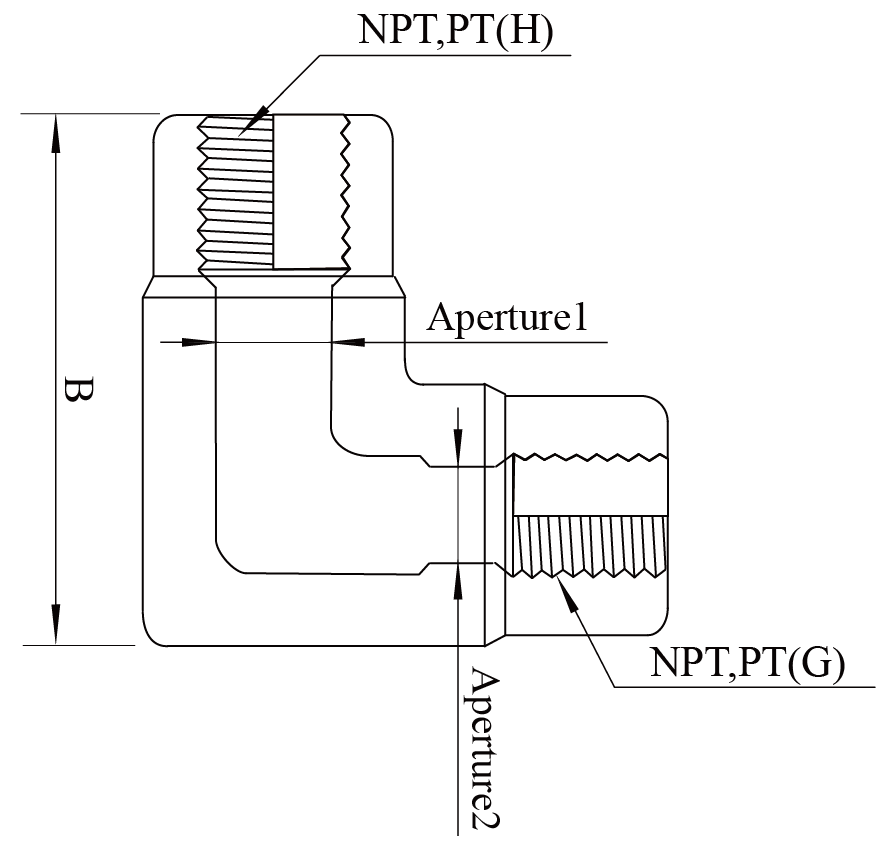

| NO. | NPT,PT(H) | NPT,PT(G) | B | Aperture1 | Aperture2 | ||
|---|---|---|---|---|---|---|---|
| RL–ZX431 | 1/4" | 1/8" | 39 | 4.4 | 2.1 | ||
| RL–ZX432 | 3/8" | 1/4" | 42 | 6 | 4.4 | ||
| RL–ZX433 | 1/2" | 3/8" | 47 | 8 | 9.5 | ||
| RL–ZX434 | 5/8" | 1/2" | 56 | 10 | 12 | ||
| RL–ZX435 | 3/4" | 5/8" | 65 | 16 | 16 | ||
| RL–ZX436 | 1" | 3/4" | 70 | 19 | 19 | ||
