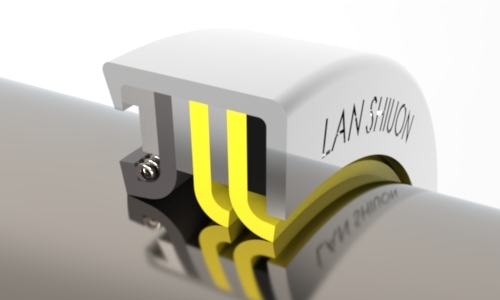

Lip Seal-MG

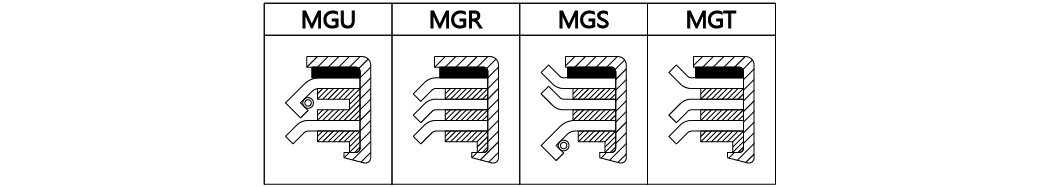

MG Series Shaft Seals:
• Focuses on a multi-lip structure for the primary lip.
• Designed to handle low rotational forces, bear the load of the lip seal,
and operate under negative atmospheric pressure conditions.
| 產品 編號 |
OD | ID | T |
|---|---|---|---|
| 92001 | 35 | 17 | 7 |
| 92002 | 40 | 19 | 6 |
| 92003 | 44 | 20 | 12 |
| 92004 | 42 | 22 | 12 |
| 92005 | 45 | 25 | 11 |
| 92006 | 49 | 25 | 12 |
| 92007 | 50 | 25 | 10 |
| 92008 | 55 | 28 | 8 |
| 92009 | 54 | 30 | 12 |
| 92010 | 52 | 32 | 11 |
| 92011 | 59 | 35 | 12 |
| 92012 | 60 | 35 | 12 |
| 92013 | 58 | 36 | 10 |
| 92014 | 60 | 38 | 12 |
| 92015 | 62 | 40 | 12 |
| 92016 | 65 | 40 | 12 |
| 92017 | 67 | 40 | 14 |
| 92018 | 66 | 42 | 12 |
| 92019 | 65 | 45 | 12 |
| 92020 | 68 | 45 | 12 |
| 92021 | 70 | 45 | 14 |
| 92022 | 72 | 45 | 14 |
| 92023 | 75 | 45 | 14 |
| 92024 | 72 | 50 | 12 |
| 92025 | 75 | 50 | 13 |
| 92026 | 77 | 50 | 14 |
| 92027 | 80 | 50 | 14 |
| 92028 | 78 | 55 | 12 |
| 92029 | 80 | 55 | 12 |
| 92030 | 82 | 55 | 14 |
| 92031 | 85 | 55 | 14 |
| 92032 | 80 | 58 | 14 |
| 92033 | 82 | 60 | 12 |
| 92034 | 87 | 60 | 14 |
| 92035 | 90 | 60 | 14 |
| 92036 | 92 | 65 | 14 |
| 92037 | 95 | 65 | 16 |
| 92038 | 86 | 70 | 9 |
| 92039 | 92 | 70 | 12 |
| 92040 | 100 | 70 | 16 |
| 92041 | 100 | 75 | 13 |
| 92042 | 105 | 75 | 16 |
| 92043 | 105 | 80 | 13 |
| 92044 | 110 | 80 | 16 |
| 92045 | 110 | 80 | 13 |
| 92046 | 115 | 85 | 16 |
| 92047 | 120 | 90 | 16 |
| 92048 | 125 | 95 | 16 |
| 92049 | 130 | 100 | 16 |
| 92050 | 133 | 100 | 18 |
| 92051 | 135 | 100 | 15 |
| 92052 | 138 | 105 | 18 |
| 92053 | 140 | 105 | 13 |
| 92054 | 140 | 105 | 15 |
| 92055 | 140 | 105 | 18 |
| 92056 | 140 | 110 | 12 |
| 92057 | 143 | 110 | 18 |
| 92058 | 145 | 110 | 18 |
| 92059 | 145 | 115 | 18 |
| 92060 | 150 | 115 | 18 |
| 92061 | 105 | 120 | 14 |
| 92062 | 153 | 120 | 18 |
| 92063 | 155 | 120 | 18 |
| 92064 | 155 | 125 | 14 |
| 92065 | 158 | 125 | 18 |
| 92066 | 160 | 125 | 18 |
| 92067 | 160 | 130 | 14 |
| 92068 | 163 | 130 | 18 |
| 92069 | 165 | 130 | 18 |
| 92070 | 168 | 135 | 18 |
| 92071 | 170 | 135 | 18 |
| 92072 | 173 | 140 | 18 |
| 92073 | 175 | 140 | 18 |
| 92074 | 177 | 140 | 16 |
| 92075 | 178 | 145 | 18 |
| 92076 | 180 | 145 | 18 |
| 92077 | 185 | 150 | 18 |
| 92078 | 186 | 150 | 20 |
| 92079 | 191 | 155 | 20 |
| 92080 | 195 | 160 | 18 |
| 92081 | 196 | 160 | 20 |
| 92082 | 201 | 165 | 20 |
| 92083 | 206 | 170 | 20 |
| 92084 | 210 | 170 | 20 |
| 92085 | 211 | 175 | 20 |
| 92086 | 216 | 180 | 20 |
| 92087 | 220 | 180 | 20 |
| 92088 | 230 | 190 | 20 |
| 92089 | 231 | 195 | 20 |
| 92090 | 230 | 200 | 16 |
| 92091 | 239 | 200 | 22 |
| 92092 | 240 | 200 | 20 |
| 92093 | 249 | 210 | 22 |
| 92094 | 265 | 210 | 23 |
| 92095 | 254 | 215 | 22 |
| 92096 | 260 | 220 | 20 |
| 92097 | 260 | 220 | 22 |
| 92098 | 269 | 230 | 22 |
| 92099 | 275 | 235 | 22 |
| 92100 | 280 | 240 | 20 |
| 92101 | 295 | 240 | 25 |
| 92102 | 290 | 250 | 20 |
| 92103 | 295 | 250 | 24 |
| 92104 | 300 | 255 | 24 |
| 92105 | 305 | 260 | 22 |
| 92106 | 310 | 260 | 24 |
| 92107 | 315 | 260 | 24 |
| 92108 | 315 | 265 | 24 |
| 92109 | 320 | 270 | 24 |
| 92110 | 320 | 275 | 24 |
| 92111 | 325 | 280 | 22 |
| 92112 | 325 | 280 | 24 |
| 92113 | 335 | 290 | 24 |
| 92114 | 345 | 300 | 22 |
| 92115 | 350 | 300 | 25 |
| 32116 | 355 | 310 | 24 |
| 92117 | 360 | 315 | 20 |
| 92118 | 365 | 315 | 25 |
| 92119 | 370 | 320 | 25 |
| 92120 | 375 | 320 | 25 |
| 92121 | 380 | 330 | 25 |
| 92122 | 390 | 340 | 25 |
| 92123 | 390 | 345 | 25 |
| 92124 | 400 | 350 | 25 |
| 92125 | 400 | 350 | 25.4 |
| 92126 | 405 | 355 | 25 |
| 92127 | 405 | 360 | 25 |
| 92128 | 420 | 370 | 25 |
| 92129 | 440 | 380 | 25 |
| 92130 | 435 | 390 | 25 |
| 92131 | 450 | 390 | 25 |
| 92132 | 450 | 400 | 25 |
| 92133 | 460 | 410 | 25 |
| 92134 | 470 | 410 | 25 |
| 92135 | 470 | 420 | 30 |
| 92136 | 480 | 430 | 30 |
| 92137 | 490 | 440 | 25 |
| 92138 | 500 | 450 | 25 |
| 92139 | 510 | 455 | 28 |
| 92140 | 515 | 460 | 28 |
| 92141 | 525 | 470 | 30 |
| 92142 | 525 | 475 | 25 |
| 92143 | 530 | 480 | 30 |
| 92144 | 540 | 480 | 25 |
| 92145 | 545 | 495 | 30 |
| 92146 | 550 | 500 | 20 |
| 92147 | 560 | 500 | 25 |
| 92148 | 570 | 520 | 24 |
| 92149 | 590 | 540 | 30 |
| 92150 | 600 | 550 | 25 |
| 92151 | 610 | 560 | 30 |
| 92152 | 630 | 570 | 30 |
| 92153 | 630 | 580 | 25 |
| 92154 | 650 | 600 | 30 |
| 92155 | 670 | 600 | 30 |
| 92156 | 660 | 610 | 30 |
| 92157 | 670 | 620 | 28 |
| 92158 | 705 | 635 | 30 |
| 92159 | 702 | 640 | 29 |
| 92160 | 705 | 650 | 20 |
| 92161 | 720 | 670 | 25 |
| 92162 | 740 | 680 | 30 |
| 92163 | 750 | 690 | 30 |
| 92164 | 770 | 700 | 30 |
| 92165 | 760 | 710 | 25 |
| 92166 | 780 | 720 | 25 |
| 92167 | 800 | 740 | 25 |
| 92168 | 810 | 750 | 30 |
| 92169 | 820 | 760 | 25 |
| 92170 | 830 | 770 | 30 |
| 92171 | 840 | 780 | 30 |
| 92172 | 860 | 800 | 30 |
| 92173 | 900 | 830 | 30 |
| 92174 | 940 | 870 | 30 |
| 92175 | 950 | 900 | 25 |
| 92176 | 1000 | 930 | 30 |
| 92177 | 1170 | 1100 | 30 |
| 92178 | 1334 | 1270 | 25 |
| 92179 | 1476.2 | 1400 | 19.1 |
