Lip Seal-NCN  |Specifications|LIP SEAL

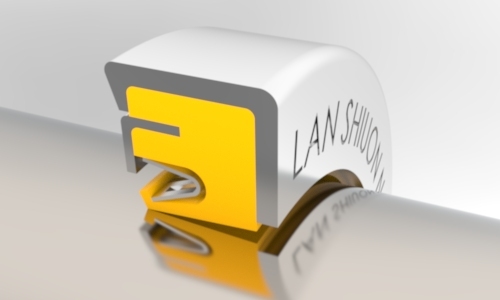

Lip Seal-NCN

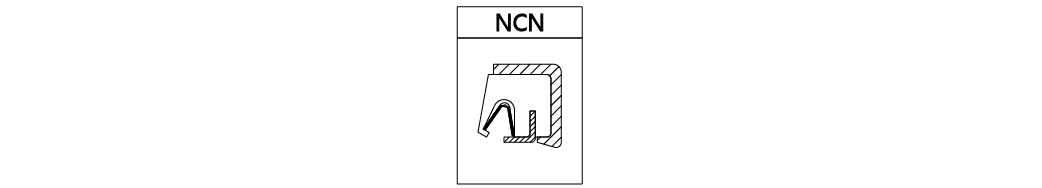

  NCN Shaft Seals:
    •    Suitable for larger size specifications.
    •    Designed to reduce instantaneous starting torque, which occurs when the shaft diameter
         generates torque during startup, causing slow rotation.
    •    Maximum pressure of up to 1,000 PSI.
    •    Rotational speed depends on the material.

NO. OD ID T
34001 22 8 7
34002 25 10 7
34003 25 12 7
34004 30 16 7
34005 32 17 8
34006 35 17 8
34007 35 18 8
34008 35 20 8
34009 36 20 7
34010 42 22 11
34011 40 25 8
34012 45 25 11
34013 48 28 11
34014 45 30 8
34015 50 30 11
34016 52 32 11
34017 50 35 8
34018 55 35 11
34019 58 38 11
34020 58 40 8
34021 62 40 11
34022 68 42 12
34023 62 45 9
34024 68 45 12
34025 70 48 12
34026 72 50 12
34027 70 52 9
34028 75 52 12
34029 72 55 9
34030 78 55 12
34031 77 57 12
34032 82 60 12
34033 88 65 12
34034 90 65 13
34035 88 70 12
34036 92 70 12
34037 95 70 13
34038 100 75 13
34039 100 80 12
34040 105 80 13
34041 110 85 13
34042 115 90 13
34043 120 95 13
34044 125 100 13
34045 135 105 14
34046 140 110 14
34047 145 115 14
34048 150 120 14
34049 155 125 14
34050 160 130 14
34051 165 135 14
34052 170 140 14
34053 175 145 14
34054 180 150 14
