LipSealTC  |Specifications|LIP SEAL

LipSealTC

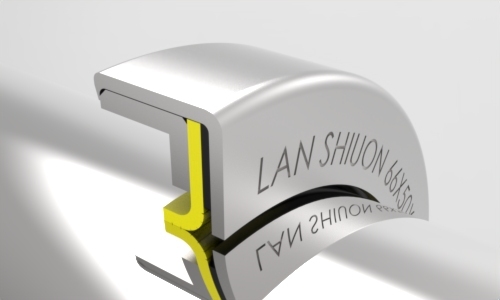

• The TC series lip seal is a single lip seal designed to replace rubber lip seals and address their limitations, such as noise and poor chemical resistance at low speeds. Additionally, it can operate reliably for extended periods in various environmental conditions.

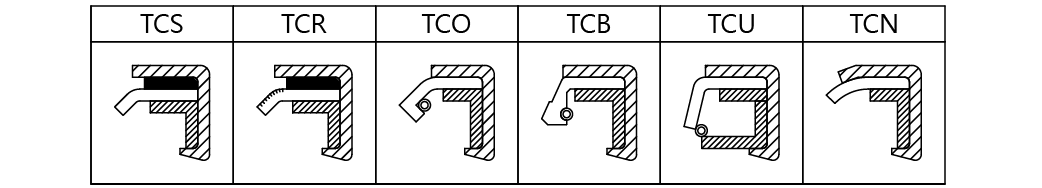

• The primary application of the TC series lip seal is in low-pressure environments, with a maximum pressure rating of 100 PSI and a PV value of 7,500 for sliding. It is primarily suitable for use outside gearboxes. Single lip designs are particularly effective in converting to high-pressure use, as shown in the diagram.

In air compressors or cylinders, compressed air can generate moisture. In such cases, metal outer rings are used to prevent rusting and damage to the primary lip. These metal outer rings are typically made of 304# or 316# stainless steel to ensure corrosion resistance.

The TC single lip seal is designed for high-speed and low-pressure applications. When operating at high speeds, it's crucial to ensure that the primary lip does not produce any powder due to friction. The seal can withstand speeds of up to 120,000 revolutions per minute (RPM) without the need for any lubricants (oil), thus enabling high-efficiency operation.

The TC series primary lip seal is widely used in various industries with either a dual lip or a single-acting primary lip. The metal casing, typically made of SUS304# or SUS316#, is suitable for lower-speed applications in industries such as chemical, medical, and food processing. This is because the primary lip requires excellent chemical resistance.

The primary lip of the shaft seal is structured with PTFE as the main material. When the shaft operates at high speeds, centrifugal forces are generated. PTFE primary lips act as effective lubricants, preventing contamination of the surrounding environment.


NO. OD ID T
61001 16 7 6
61002 20 7 5
61003 14 8 4
61004 18 8 4
61005 22 8 5
61006 22 9 5
61007 20 10 4
61008 25 10 5
61009 22 12 4
61010 25 12 5
61011 30 12 6
61012 32 12 5
61013 28 13 5
61014 24 14 4
61015 24 14 6
61016 28 14 5
61017 34 14 6
61018 25 15 4
61019 30 15 4
61020 30 15 5
61021 32 15 6
61022 35 15 6
61023 24 16 4
61024 28 16 4
61025 30 16 5
61026 30 17 5
61027 30 17 7
61028 32 17 6
61029 35 17 5
61030 30 18 5
61031 35 18 6
61032 38 18 7
61033 35 19 6
61034 40 19 6
61035 26 20 6
61036 32 20 5
61037 34 20 5
61038 35 20 5
61039 35 20 6
61040 40 20 5
61041 40 20 7
61042 42 20 6
61043 47 20 6
61044 40 21 7
61045 32 22 5
61046 34 22 5
61047 35 22 5
61048 38 22 6
61049 42 22 5
61050 47 22 7
61051 32 23 7
61052 42 23 6
61053 38 24 5
61054 40 24 6
61055 47 24 5
61056 35 25 5
61057 38 25 5
61058 40 25 5
61059 40 25 6
61060 41 25 6
61062 42 25 5
61064 45 25 5
61065 45 25 7
61066 47 25 5
61067 47 25 6
61068 50 25 5
61069 40 26 5
61070 42 26 6
61071 48 26 6
61072 42 27 7
61073 47 27 8
61074 40 28 5
61075 45 28 6
61076 47 28 5
61077 48 28 5
61078 48 28 6
61079 50 28 6
61080 40 30 5
61081 42 30 5
61082 45 30 6
61083 46 30 5
61084 48 30 6
61085 50 30 5
61086 50 30 8
61087 52 30 5
61088 55 30 5
61089 56 30 5
61090 45 32 5
61091 48 32 6
61092 52 32 5
61093 54 34 8
61094 45 35 5
61095 47 35 5
61096 48 35 5
61097 50 35 5
61098 50 35 6
61099 52 35 5
61100 55 35 5
61101 55 35 8
61102 60 35 5
61103 62 35 5
61104 50 38 5
61105 54 38 6
61106 55 38 6
61107 58 38 5
61108 58 38 8
61109 64 38 5
61110 52 40 5
61111 55 40 5
61112 58 40 6
61113 60 40 5
61114 62 40 5
61115 62 40 6
61116 62 40 8
61117 65 40 5
61118 65 40 6
61119 55 42 6
61120 60 42 7
61121 65 42 9
61122 60 45 6
61123 62 45 7
61124 65 45 5
61125 68 45 6
61126 68 45 9
61127 70 45 6
61128 72 45 6
61129 62 48 6
61130 62 48 8
61131 65 48 7
61132 70 48 6
61133 65 50 6
61134 68 50 7
61135 72 50 5
61136 72 50 6
61137 72 50 9
61138 80 50 6
61139 80 50 7
61140 65 52 6
61141 70 52 7
61142 75 52 9
61143 70 55 6
61144 72 55 7
61145 74 55 6
61146 78 55 9
61147 70 56 6
61148 72 58 6
61149 75 58 7
61150 80 58 5
61151 80 58 6
61152 80 58 9
61153 75 60 6
61154 78 60 7
61155 82 60 6
61156 82 60 9
61157 85 60 6
61158 90 60 7
61159 75 62 6
61160 85 62 6
61161 80 63 7
61162 85 65 9
61163 88 65 5
61164 88 65 6
61165 90 68 7
61166 88 70 7
61167 90 70 10
61168 92 70 5
61169 92 70 7
61170 92 70 12
61171 95 70 7
61172 95 74 7
61173 100 75 7
61174 100 75 8
61175 95 80 6
61176 100 80 7
61177 105 80 7
61178 110 80 7
61179 100 85 9
61180 105 85 9
61181 110 85 7
61182 110 85 8
61183 115 90 5
61184 115 90 13
61185 115 95 9
61186 120 95 8
61187 135 95 13
61188 125 100 8
61189 150 105 12
61190 140 110 8
61191 150 110 15
61192 130 112 7
61193 135 115 8
61194 140 115 13
61195 150 120 14
61196 165 135 14
61197 165 140 15
61198 170 140 10
61199 170 140 14
61200 190 165 13
61201 220 195 15
61202 230 200 16
61203 255 220 12
61204 280 240 15
