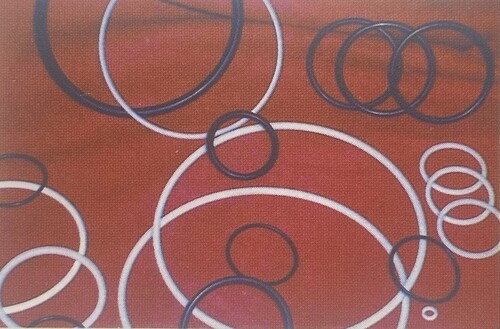

O-RING_GM
Material : PTFE、TFM、VITION//COATING PTFE、SILICONE//COATING PTFE、HMER、EPDM、NBR

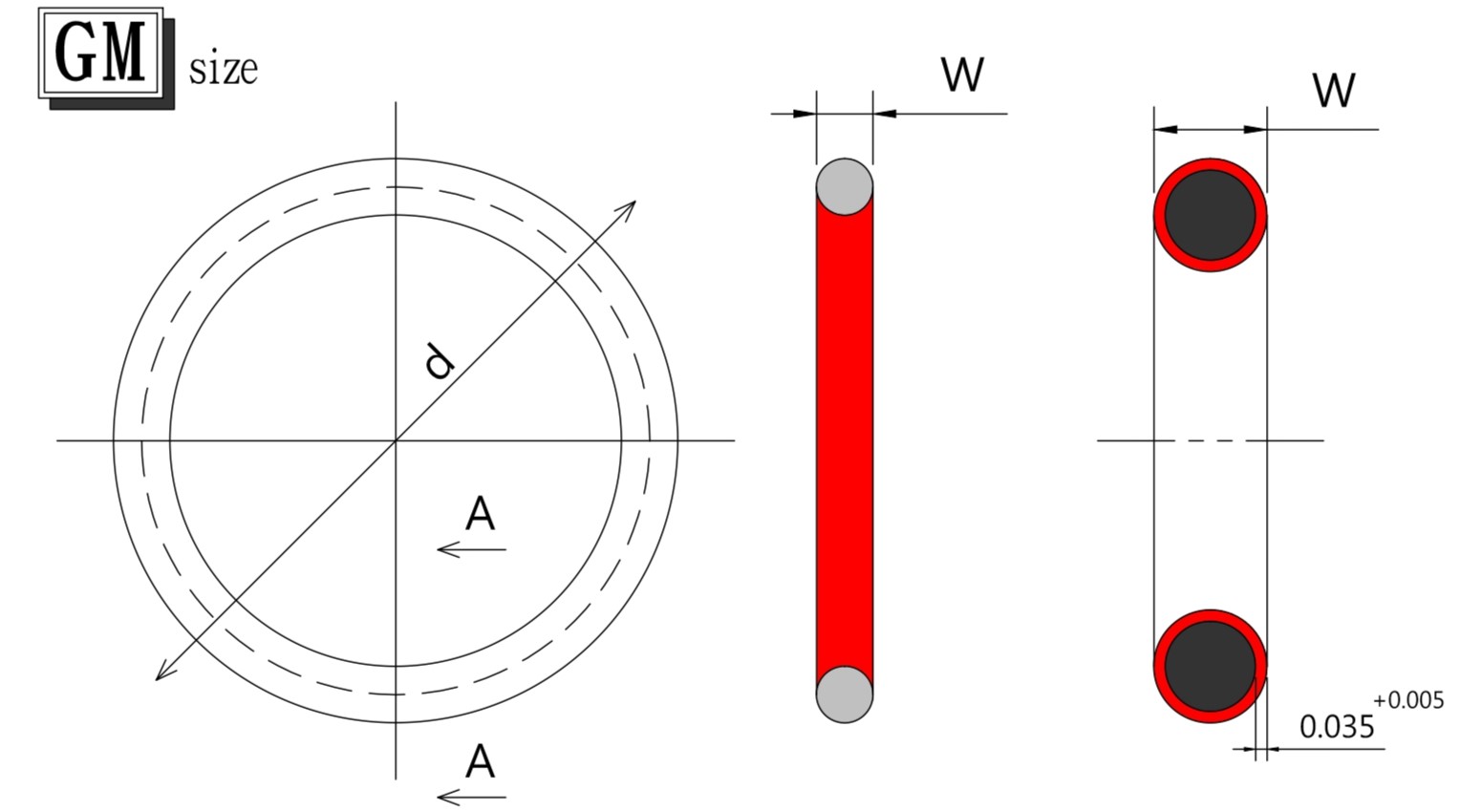

| 產品編號 | 規格 | W | ID |
|---|---|---|---|
| LS000 | M5 | W×5 | 4.8 |
| LS001 | M10 | W×5 | 9.8 |
| LS002 | M15 | W×5 | 14.8 |
| LS003 | M20 | W×5 | 19.8 |
| LS004 | M25 | W×5 | 24.8 |
| LS005 | M30 | W×5 | 29.8 |
| LS006 | M35 | W×5 | 34.8 |
| LS007 | M40 | W×5 | 39.8 |
| LS008 | M45 | W×5 | 44.8 |
| LS009 | M50 | W×5 | 49.8 |
| LS010 | M55 | W×5 | 54.8 |
| LS011 | M60 | W×5 | 59.8 |
| LS012 | M65 | W×5 | 64.8 |
| LS013 | M70 | W×5 | 69.8 |
| LS014 | M75 | W×5 | 74.8 |
| LS015 | M80 | W×5 | 79.8 |
| LS016 | M85 | W×5 | 84.8 |
| LS017 | M90 | W×5 | 89.8 |
| LS018 | M95 | W×5 | 94.8 |
| LS019 | M100 | W×5 | 99.8 |
| LS020 | M105 | W×5 | 104.8 |
| LS021 | M110 | W×5 | 109.8 |
| LS022 | M115 | W×5 | 114.8 |
| LS023 | M120 | W×5 | 119.8 |
| LS024 | M125 | W×5 | 124.8 |
| LS025 | M130 | W×5 | 129.8 |
| LS026 | M135 | W×5 | 134.8 |
| LS027 | M140 | W×5 | 139.8 |
| LS028 | M145 | W×5 | 144.8 |
| LS029 | M150 | W×5 | 149.8 |
| LS030 | M155 | W×5 | 154.8 |
| LS031 | M160 | W×5 | 159.8 |
| LS032 | M165 | W×5 | 164.8 |
| LS033 | M170 | W×5 | 169.8 |
| LS034 | M175 | W×5 | 174.8 |
| LS035 | M180 | W×5 | 179.8 |
| LS036 | M185 | W×5 | 184.8 |
| LS037 | M190 | W×5 | 189.8 |
| LS038 | M195 | W×5 | 194.8 |
| LS039 | M200 | W×5 | 199.8 |
| LS040 | M205 | W×5 | 204.8 |
| LS041 | M210 | W×5 | 209.8 |
| LS042 | M215 | W×5 | 214.8 |
| LS043 | M220 | W×5 | 219.8 |
| LS044 | M225 | W×5 | 224.8 |
| LS045 | M230 | W×5 | 229.8 |
| LS046 | M235 | W×5 | 234.8 |
| LS047 | M240 | W×5 | 239.8 |
| LS048 | M245 | W×5 | 244.8 |
| LS049 | M250 | W×5 | 249.8 |
| LS050 | M255 | W×5 | 254.8 |
| LS051 | M260 | W×5 | 259.8 |
| LS052 | M265 | W×5 | 264.8 |
| LS053 | M270 | W×5 | 269.8 |
| LS054 | M275 | W×5 | 274.8 |
| LS055 | M280 | W×5 | 279.8 |
| LS056 | M285 | W×5 | 284.8 |
| LS057 | M290 | W×5 | 289.8 |
| LS058 | M295 | W×5 | 294.8 |
| LS059 | M300 | W×5 | 299.8 |
