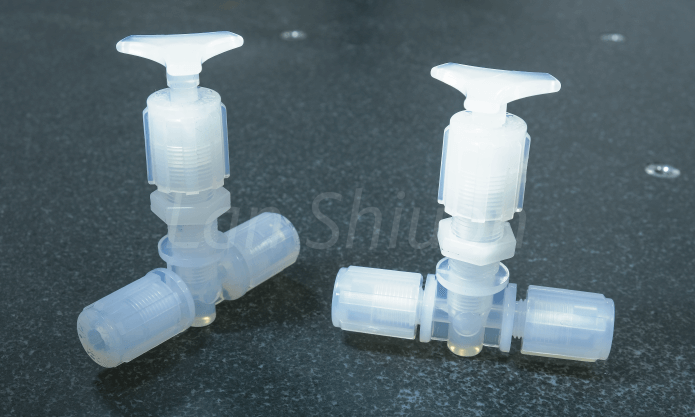

PFA Needle Valve
Material : PFA

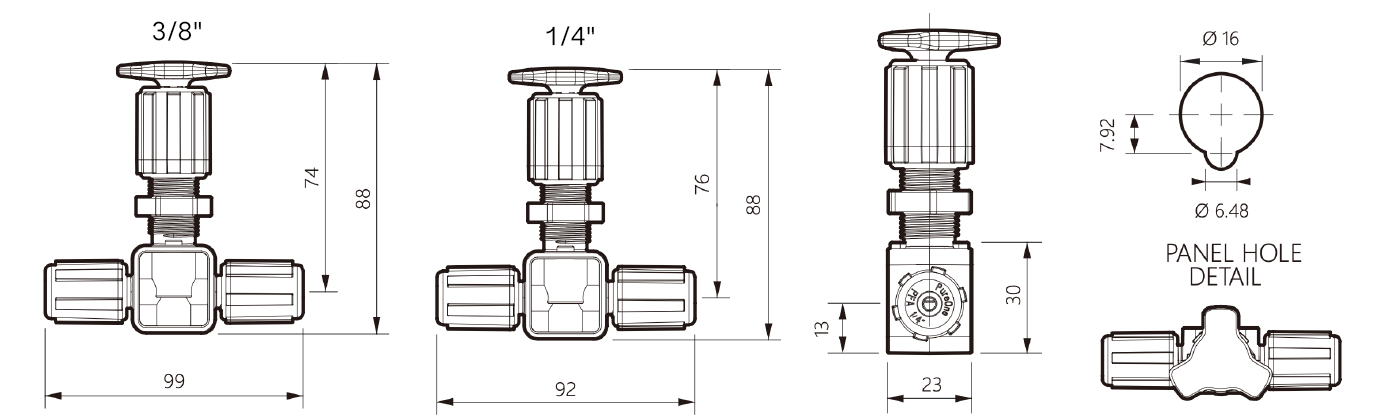

Specifications

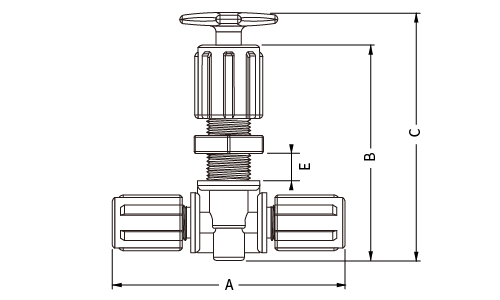

| inch Tube Type | |||||||
|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | A (mm) | B (mm) | C (mm) | E (mm) | ||
| 1/4" | 77.5 | 84.5 | 89 | 0~12 | |||
| 3/8" | 77.5 | 86 | 89 | 0~12 | |||
| 1/2" | 77.5 | 89 | 89 | 0~12 | |||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Max. Operating Pressure: 7 Bar
Pressure / Temperature Ratings Chart
