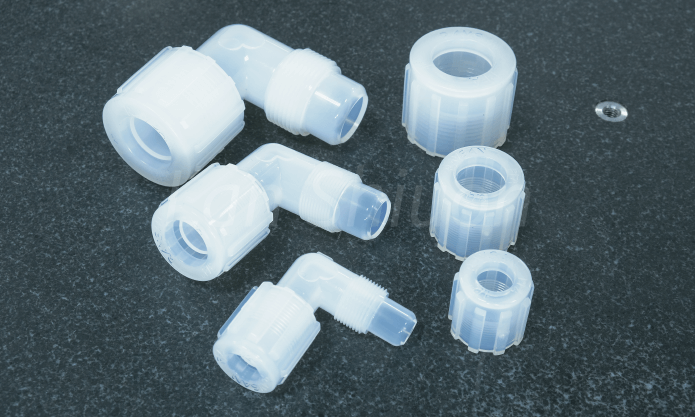

PFA 90°Fitting
Material : PFA
| Mm Tube type | ||||||
|---|---|---|---|---|---|---|
| NO. | Outer diameter in | Inner diameter mm | A mm | B mm | ||
| 04 | 1/4" | 3.81 | 42.16 | 42.16 | ||
| 06 | 3/8" | 6.35 | 44.70 | 44.70 | ||
| 08 | 1/2" | 9.65 | 47.50 | 47.50 | ||
| 12 | 3/4" | 16.00 | 56.39 | 56.39 | ||
| 16 | 1" | 22.10 | 68.58 | 68.58 | ||
• Material: PFA (Perfluoroalkoxy alkanes）,
known for its excellent corrosion resistance and high purity characteristics.
• Applications:
• Semiconductor industry requiring high purity
• Ultrapure water applications
• Handling of corrosive chemicals
• Temperature Range: -40°C to 200°C, maintaining good dimensional stability and corrosion resistance within this range.
• Mechanical Properties: Exhibits good mechanical strength and wear resistance.
Interface Types:
• Flanged Connection: Provides reliable connections suitable for various installation needs.
Maximum Operating Conditions:
• Temperature: Up to 200°C
• Pressure: 0.7 MPa
Media Transport:
• Liquid: Suitable for transporting various liquid media, including ultrapure water and corrosive chemicals.
