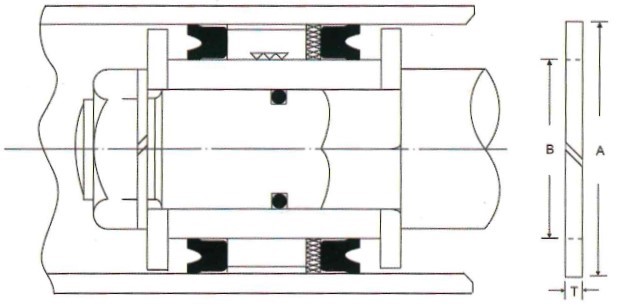

SEAL_BRT
MATERISL:GLASS+PTFE、BRONZE+PTFE、BRASS+PTFE、GLASS FIBER20%+GRAPHITE5%+PTFE
| ITEM/NO | A | B | T |
|---|---|---|---|
| LSBRT-001 | 35 | 22 | 2 |
| LSBRT-002 | 30 | 22.4 | 2 |
| LSBRT-003 | 33 | 22.4 | 2 |
| LSBRT-004 | 31.5 | 23.5 | 2 |
| LSBRT-005 | 35 | 25 | 2 |
| LSBRT-006 | 38 | 25 | 2 |
| LSBRT-007 | 35.5 | 25.5 | 2 |
| LSBRT-008 | 40 | 27 | 2 |
| LSBRT-009 | 35.5 | 28 | 2 |
| LSBRT-010 | 40 | 28 | 3 |
| LSBRT-011 | 41 | 28 | 3 |
| LSBRT-012 | 40 | 30 | 3 |
| LSBRT-013 | 43 | 30 | 3 |
| LSBRT-014 | 41.5 | 31.5 | 3 |
| LSBRT-015 | 44.5 | 31.5 | 3 |
| LSBRT-016 | 50 | 34 | 3 |
| LSBRT-017 | 45 | 35 | 3 |
| LSBRT-018 | 50 | 35 | 3 |
| LSBRT-019 | 45 | 35.5 | 3 |
| LSBRT-020 | 51.5 | 35.5 | 3 |
| LSBRT-021 | 50 | 40 | 3 |
| LSBRT-022 | 56 | 40 | 3 |
| LSBRT-023 | 55 | 45 | 3 |
| LSBRT-024 | 56 | 45 | 3 |
| LSBRT-025 | 61 | 45 | 3 |
| LSBRT-026 | 61 | 47 | 3 |
| LSBRT-027 | 63 | 47 | 3 |
| LSBRT-028 | 60 | 50 | 3 |
| LSBRT-029 | 66 | 50 | 3 |
| LSBRT-030 | 63 | 53 | 3 |
| LSBRT-031 | 65 | 55 | 3 |
| LSBRT-032 | 71 | 55 | 3 |
| LSBRT-033 | 66 | 56 | 3 |
| LSBRT-034 | 70 | 60 | 3 |
| LSBRT-035 | 71 | 60 | 3 |
| LSBRT-036 | 76 | 60 | 3 |
| LSBRT-037 | 73 | 60 | 3 |
| LSBRT-038 | 80 | 63 | 3 |
| LSBRT-039 | 75 | 64 | 3 |
| LSBRT-040 | 77 | 65 | 3 |
| LSBRT-041 | 80 | 67 | 3 |
| LSBRT-042 | 90 | 70 | 3 |
| LSBRT-043 | 80 | 70 | 3 |
| LSBRT-044 | 81 | 71 | 3 |
| LSBRT-045 | 95 | 71 | 3 |
| LSBRT-046 | 90 | 75 | 3 |
| LSBRT-047 | 100 | 80 | 3 |
| LSBRT-048 | 100 | 80 | 3 |
| LSBRT-049 | 105 | 85 | 3 |
| LSBRT-050 | 105 | 85 | 3 |
| LSBRT-051 | 110 | 90 | 3 |
| LSBRT-052 | 110 | 90 | 3 |
| LSBRT-053 | 115 | 95 | 3 |
| LSBRT-054 | 112 | 98 | 3 |
| LSBRT-055 | 115 | 100 | 3 |
| LSBRT-056 | 120 | 100 | 3 |
| LSBRT-057 | 125 | 105 | 3 |
| LSBRT-058 | 120 | 106 | 3 |
| LSBRT-059 | 125 | 112 | 3 |
| LSBRT-060 | 132 | 112 | 3 |
| LSBRT-061 | 140 | 120 | 3 |
| LSBRT-062 | 140 | 125 | 3 |
| LSBRT-063 | 150 | 125 | 3 |
| LSBRT-064 | 160 | 135 | 3 |
| LSBRT-065 | 150 | 136 | 3 |
| LSBRT-066 | 165 | 140 | 3 |
| LSBRT-066 | 170 | 155 | 4 |
| LSBRT-066 | 180 | 155 | 4 |
| LSBRT-067 | 160 | 145 | 3 |
| LSBRT-067 | 175 | 160 | 4 |
| LSBRT-068 | 170 | 145 | 3 |
| LSBRT-068 | 185 | 160 | 4 |
| LSBRT-069 | 165 | 150 | 3 |
| LSBRT-069 | 180 | 165 | 4 |
| LSBRT-070 | 170 | 155 | 4 |
| LSBRT-070 | 180 | 165 | 4 |
| LSBRT-071 | 200 | 170 | 4 |
| LSBRT-072 | 190 | 175 | 4 |
| LSBRT-073 | 200 | 175 | 4 |
| LSBRT-074 | 200 | 180 | 4 |
| LSBRT-075 | 205 | 180 | 4 |
| LSBRT-076 | 200 | 190 | 4 |
| LSBRT-077 | 210 | 190 | 4 |
| LSBRT-078 | 220 | 200 | 4 |
| LSBRT-079 | 225 | 200 | 4 |
| LSBRT-080 | 224 | 204 | 4 |
| LSBRT-081 | 220 | 205 | 4 |
| LSBRT-082 | 230 | 210 | 4 |
| LSBRT-083 | 240 | 220 | 4 |
| LSBRT-084 | 245 | 225 | 4 |
| LSBRT-085 | 250 | 225 | 4 |
| LSBRT-086 | 250 | 230 | 4 |
| LSBRT-087 | 260 | 240 | 4 |
| LSBRT-088 | 270 | 250 | 4 |
| LSBRT-089 | 275 | 250 | 4 |
| LSBRT-090 | 280 | 255 | 4 |
| LSBRT-091 | 285 | 260 | 4 |
| LSBRT-092 | 290 | 265 | 4 |
| LSBRT-093 | 297 | 265 | 4 |
| LSBRT-094 | 295 | 270 | 4 |
| LSBRT-095 | 300 | 270 | 4 |
| LSBRT-096 | 300 | 275 | 4 |
| LSBRT-097 | 305 | 280 | 4 |
| LSBRT-098 | 312 | 280 | 4 |
| LSBRT-099 | 315 | 290 | 4 |
| LSBRT-100 | 325 | 300 | 4 |
| LSBRT-101 | 332 | 300 | 4 |
