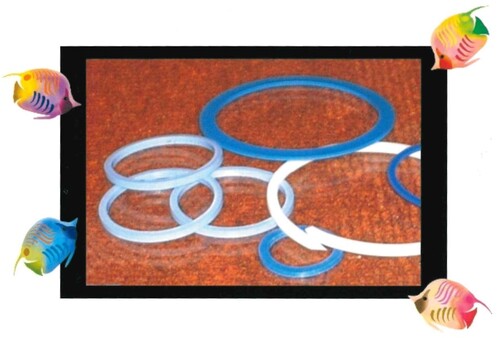

SEAL_G-BACK
MATERISL:PTFE、CARBON+FIBER+PTFE、GLASS FIBER20%+GARPHITE5%+PTFE

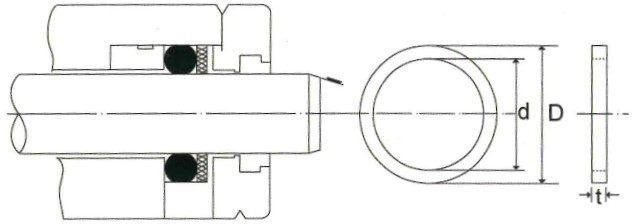

| ITEM/NO | 名稱 | d +0.2 |
D -0.2 |
t ±0.1 |
|---|---|---|---|---|
| GB-001 | G-5 | 5.2 | 10 | 1.25 |
| GB-002 | G-10 | 10 | 15 | 1.25 |
| GB-003 | G-15 | 15 | 20 | 1.25 |
| GB-004 | G-20 | 20 | 25 | 1.25 |
| GB-005 | G-25 | 25 | 30 | 1.25 |
| GB-006 | G-28 | 28 | 33 | 1.25 |
| GB-007 | G-30 | 30 | 35 | 1.25 |
| GB-008 | G-35 | 35 | 40 | 1.25 |
| GB-009 | G-40 | 40 | 45 | 1.25 |
| GB-010 | G-45 | 45 | 60 | 1.25 |
| GB-011 | G-50 | 50 | 55 | 1.25 |
| GB-012 | G-52 | 52 | 57 | 1.25 |
| GB-013 | G-55 | 55 | 60 | 1.25 |
| GB-014 | G-58 | 58 | 63 | 1.25 |
| GB-015 | G-60 | 60 | 65 | 1.25 |
| GB-016 | G-62 | 62 | 67 | 1.25 |
| GB-017 | G-63 | 63 | 68 | 1.25 |
| GB-018 | G-64 | 64 | 69 | 1.25 |
| GB-019 | G-65 | 65 | 70 | 1.25 |
| GB-020 | G-67 | 67 | 72 | 1.25 |
| GB-021 | G-70 | 70 | 75 | 1.25 |
| GB-022 | G-72 | 72 | 77 | 1.25 |
| GB-023 | G-75 | 75 | 80 | 1.25 |
| GB-024 | G-80 | 80 | 85 | 1.25 |
| GB-025 | G-85 | 85 | 90 | 1.25 |
| GB-026 | G-90 | 90 | 95 | 1.25 |
| GB-027 | G-95 | 95 | 100 | 1.25 |
| GB-028 | G-100 | 100 | 105 | 1.25 |
| GB-029 | G-25 | 25 | 30 | 1.25 |
| GB-030 | G-30 | 30 | 35 | 1.25 |
| GB-031 | G-35 | 35 | 40 | 1.25 |
| GB-032 | G-40 | 40 | 45 | 1.25 |
| GB-033 | G-45 | 45 | 50 | 1.25 |
| GB-034 | G-50 | 50 | 55 | 1.25 |
| GB-035 | G-55 | 55 | 60 | 1.25 |
| GB-036 | G-60 | 60 | 65 | 1.25 |
| GB-037 | G-65 | 65 | 70 | 1.25 |
| GB-038 | G-70 | 70 | 75 | 1.25 |
| GB-039 | G-75 | 75 | 80 | 1.25 |
| GB-040 | G-80 | 80 | 85 | 1.9 |
| GB-041 | G-85 | 85 | 90 | 1.9 |
| GB-042 | G-90 | 90 | 95 | 1.9 |
| GB-043 | G-95 | 95 | 100 | 1.9 |
| GB-044 | G-205 | 205 | 215 | 1.9 |
| GB-045 | G-210 | 210 | 220 | 1.9 |
| GB-046 | G-215 | 215 | 225 | 1.9 |
| GB-047 | G-220 | 220 | 230 | 1.9 |
| GB-048 | G-225 | 225 | 235 | 1.9 |
| GB-049 | G-230 | 230 | 240 | 1.9 |
| GB-050 | G-235 | 235 | 245 | 1.9 |
| GB-051 | G-240 | 240 | 250 | 1.9 |
| GB-052 | G-245 | 245 | 255 | 1.9 |
| GB-053 | G-250 | 250 | 260 | 1.9 |
| GB-054 | G-255 | 255 | 265 | 1.9 |
| GB-055 | G-260 | 260 | 270 | 1.9 |
| GB-056 | G-265 | 265 | 275 | 1.9 |
| GB-057 | G-270 | 270 | 280 | 1.9 |
| GB-058 | G-275 | 275 | 285 | 1.9 |
| GB-059 | G-280 | 280 | 290 | 1.9 |
| GB-060 | G-285 | 285 | 295 | 1.9 |
| GB-061 | G-290 | 290 | 300 | 1.9 |
| GB-062 | G-295 | 295 | 305 | 1.9 |
| GB-063 | G-300 | 300 | 310 | 1.9 |
| GB-064 | G-305 | 305 | 315 | 2 |
| GB-065 | G-310 | 310 | 320 | 2 |
| GB-066 | G-315 | 315 | 325 | 2 |
| GB-067 | G-320 | 320 | 330 | 2 |
| GB-068 | G-325 | 325 | 335 | 2 |
| GB-069 | G-330 | 330 | 340 | 2 |
| GB-070 | G-335 | 335 | 345 | 2 |
| GB-071 | G-340 | 340 | 350 | 2 |
| GB-072 | G-345 | 345 | 355 | 2 |
| GB-073 | G-350 | 350 | 360 | 2 |
| GB-074 | G-355 | 355 | 365 | 2 |
| GB-075 | G-360 | 360 | 370 | 2 |
| GB-076 | G-365 | 365 | 375 | 2 |
| GB-077 | G-370 | 370 | 380 | 2 |
| GB-078 | G-375 | 375 | 385 | 2 |
| GB-079 | G-380 | 380 | 390 | 2 |
| GB-080 | G-385 | 385 | 395 | 2 |
| GB-081 | G-390 | 390 | 400 | 2 |
| GB-082 | G-395 | 395 | 405 | 2 |
| GB-083 | G-400 | 400 | 410 | 2 |
| GB-084 | G-405 | 405 | 415 | 2 |
| GB-085 | G-410 | 410 | 420 | 2 |
| GB-086 | G-415 | 415 | 425 | 2 |
| GB-087 | G-420 | 420 | 430 | 2 |
| GB-088 | G-425 | 425 | 435 | 2 |
| GB-089 | G-430 | 430 | 440 | 2 |
| GB-090 | G-435 | 435 | 445 | 2 |
| GB-091 | G-440 | 440 | 450 | 2 |
| GB-092 | G-445 | 445 | 455 | 2 |
| GB-093 | G-450 | 450 | 460 | 2 |
| GB-094 | G-455 | 455 | 465 | 2 |
| GB-095 | G-460 | 460 | 470 | 2 |
| GB-096 | G-465 | 465 | 475 | 2 |
| GB-097 | G-470 | 470 | 480 | 2 |
| GB-098 | G-475 | 475 | 485 | 2 |
| GB-099 | G-480 | 480 | 490 | 2 |
| GB-100 | G-485 | 485 | 495 | 2 |
| GB-101 | G-490 | 490 | 500 | 2 |
| GB-102 | G-495 | 495 | 505 | 2 |
| GB-103 | G-500 | 500 | 510 | 2 |
| GB-104 | G-505 | 505 | 515 | 2 |
| GB-105 | G-510 | 510 | 520 | 2 |
| GB-106 | G-515 | 515 | 525 | 2 |
| GB-107 | G-520 | 520 | 530 | 2 |
| GB-108 | G-525 | 525 | 535 | 2 |
| GB-109 | G-530 | 530 | 540 | 2 |
| GB-110 | G-535 | 535 | 545 | 2 |
| GB-111 | G-540 | 540 | 550 | 2 |
| GB-112 | G-545 | 545 | 555 | 2 |
| GB-113 | G-550 | 550 | 560 | 2 |
| GB-114 | G-555 | 555 | 565 | 2 |
| GB-115 | G-560 | 560 | 570 | 2 |
| GB-116 | G-565 | 565 | 575 | 2 |
| GB-117 | G-570 | 570 | 580 | 2 |
| GB-118 | G-575 | 575 | 585 | 2 |
| GB-119 | G-580 | 580 | 590 | 2 |
| GB-120 | G-585 | 585 | 595 | 2 |
| GB-121 | G-590 | 590 | 600 | 2 |
| GB-122 | G-595 | 595 | 605 | 2 |
| GB-123 | G-600 | 600 | 610 | 2 |
| GB-124 | G-605 | 605 | 615 | 2 |
| GB-125 | G-610 | 610 | 620 | 2 |
| GB-126 | G-615 | 615 | 625 | 2 |
| GB-127 | G-620 | 620 | 630 | 2 |
| GB-128 | G-625 | 625 | 635 | 2 |
| GB-129 | G-630 | 630 | 640 | 2 |
| GB-130 | G-635 | 635 | 645 | 2 |
| GB-131 | G-640 | 640 | 650 | 2 |
| GB-132 | G-645 | 645 | 655 | 2 |
| GB-133 | G-650 | 650 | 660 | 2 |
| GB-134 | G-655 | 655 | 665 | 2 |
| GB-135 | G-660 | 660 | 670 | 2 |
| GB-136 | G-665 | 665 | 675 | 2 |
| GB-137 | G-670 | 670 | 680 | 2 |
| GB-138 | G-675 | 675 | 685 | 2 |
| GB-139 | G-680 | 680 | 690 | 2 |
| GB-140 | G-685 | 685 | 695 | 2 |
| GB-141 | G-690 | 690 | 700 | 2 |
| GB-142 | G-695 | 695 | 705 | 2 |
| GB-143 | G-700 | 700 | 710 | 2 |
| GB-144 | G-705 | 705 | 715 | 2 |
| GB-145 | G-710 | 710 | 720 | 2 |
| GB-146 | G-715 | 715 | 725 | 2 |
| GB-147 | G-720 | 720 | 730 | 2 |
| GB-148 | G-725 | 725 | 735 | 2 |
| GB-149 | G-730 | 730 | 740 | 2 |
| GB-150 | G-735 | 735 | 745 | 2 |
| GB-151 | G-740 | 740 | 750 | 2 |
| GB-152 | G-745 | 745 | 755 | 2 |
| GB-153 | G-750 | 750 | 760 | 2 |
| GB-154 | G-755 | 755 | 765 | 2 |
| GB-155 | G-760 | 760 | 770 | 2 |
| GB-156 | G-765 | 765 | 775 | 2 |
| GB-157 | G-770 | 770 | 780 | 2 |
| GB-158 | G-775 | 775 | 785 | 2 |
| GB-159 | G-780 | 780 | 790 | 2 |
| GB-160 | G-785 | 785 | 795 | 2 |
| GB-161 | G-790 | 790 | 800 | 2 |
| GB-162 | G-795 | 795 | 805 | 2 |
| GB-163 | G-800 | 800 | 810 | 2 |
| GB-164 | G-810 | 810 | 815 | 2 |
| GB-165 | G-820 | 820 | 825 | 2 |
| GB-166 | G-830 | 830 | 835 | 2 |
| GB-167 | G-840 | 840 | 845 | 2 |
| GB-168 | G-850 | 850 | 855 | 2 |
| GB-169 | G-860 | 860 | 865 | 2 |
| GB-170 | G-870 | 870 | 875 | 2 |
| GB-171 | G-880 | 880 | 885 | 2 |
| GB-172 | G-890 | 890 | 895 | 2 |
| GB-173 | G-900 | 900 | 905 | 2 |
| GB-174 | G-910 | 910 | 915 | 2 |
| GB-175 | G-915 | 915 | 925 | 2 |
