SEAL_GSR
MATERISL:GLASS+PTFE、BRONZE+PTFE、BRASS+PTFE、GLASS FIBER20%+GRAPHITE5%+PTFE

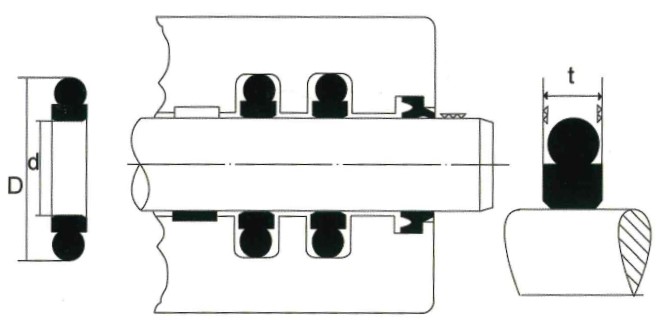

| ITEM/NO | d | D | t | RING |
|---|---|---|---|---|
| LSGSR-001 | 4 | 9 | 2.2 | 010 |
| LSGSR-002 | 5 | 10 | 2.2 | 010 |
| LSGSR-003 | 6 | 11 | 2.2 | 011 |
| LSGSR-004 | 7 | 12 | 2.2 | 012 |
| LSGSR-005 | 8 | 15.5 | 3.2 | 111 |
| LSGSR-006 | 8A | 13 | 2.2 | 012 |
| LSGSR-007 | 10 | 17.5 | 3.2 | 012 |
| LSGSR-008 | 10A | 15 | 2.2 | 013 |
| LSGSR-009 | 12 | 19.5 | 3.2 | 114 |
| LSGSR-010 | 12A | 17 | 2.2 | 015 |
| LSGSR-011 | 14 | 21.5 | 3.2 | 115 |
| LSGSR-012 | 14A | 19 | 2.2 | 016 |
| LSGSR-013 | 16 | 23.5 | 3.2 | 116 |
| LSGSR-014 | 16A | 21 | 2.2 | 017 |
| LSGSR-015 | 18 | 25.5 | 3.2 | 117 |
| LSGSR-016 | 18A | 23 | 2.2 | 018 |
| LSGSR-017 | 20 | 31 | 4.2 | 214 |
| LSGSR-018 | 20A | 27.5 | 3.2 | 118 |
| LSGSR-019 | 22 | 33 | 4.2 | 215 |
| LSGSR-020 | 22A | 29.5 | 3.2 | 120 |
| LSGSR-021 | 22.4 | 30 | 3.2 | 216 |
| LSGSR-022 | 25 | 36 | 4.2 | 217 |
| LSGSR-023 | 25A | 32.5 | 3.2 | 122 |
| LSGSR-024 | 25B | 33 | 3.2 | 218 |
| LSGSR-025 | 28 | 36 | 3.2 | 220 |
| LSGSR-026 | 30 | 41 | 4.2 | 220 |
| LSGSR-027 | 30A | 37.5 | 3.2 | 125 |
| LSGSR-028 | 30B | 40 | 4.2 | 221 |
| LSGSR-029 | 31.5 | 41.5 | 4.2 | 222 |
| LSGSR-030 | 32 | 43 | 4.2 | 221 |
| LSGSR-031 | 32A | 39.5 | 3.2 | 127 |
| LSGSR-032 | 32B | 42 | 4.2 | 222 |
| LSGSR-033 | 35 | 45 | 4.2 | 123 |
| LSGSR-034 | 36 | 47 | 4.2 | 223 |
| LSGSR-035 | 36A | 43.5 | 3.2 | 129 |
| LSGSR-036 | 40 | 55 | 6.2 | 328 |
| LSGSR-037 | 40A | 51 | 4.2 | 224 |
| LSGSR-038 | 40B | 50 | 4.2 | 224 |
| LSGSR-039 | 45 | 61 | 6.2 | 329 |
| LSGSR-040 | 45A | 56 | 4.2 | 225 |
| LSGSR-041 | 45B | 55 | 4.2 | 226 |
| LSGSR-042 | 50 | 65.5 | 6.2 | 331 |
| LSGSR-043 | 50A | 61 | 4.2 | 227 |
| LSGSR-044 | 53 | 60 | 4.2 | 228 |
| LSGSR-045 | 55 | 63 | 4.2 | 229 |
| LSGSR-046 | 55A | 65 | 4.2 | 230 |
| LSGSR-047 | 55B | 70 | 6.8 | 333 |
| LSGSR-048 | 56 | 71.5 | 6.2 | 333 |
| LSGSR-049 | 56A | 67 | 4.2 | 229 |
| LSGSR-050 | 60 | 75 | 6.2 | 334 |
| LSGSR-051 | 60A | 71 | 4.2 | 230 |
| LSGSR-052 | 60B | 70 | 4.2 | 230 |
| LSGSR-053 | 60C | 75 | 6.8 | 334 |
| LSGSR-054 | 63 | 78 | 6.2 | 335 |
| LSGSR-055 | 63A | 73 | 4.2 | 232 |
| LSGSR-056 | 65 | 80 | 6.2 | 335 |
| LSGSR-057 | 65A | 75 | 4.2 | 233 |
| LSGSR-058 | 65B | 80 | 6.8 | 336 |
| LSGSR-059 | 67 | 77 | 4.2 | 233 |
| LSGSR-060 | 70 | 85 | 6.2 | 337 |
| LSGSR-061 | 70A | 80 | 4.2 | 234 |
| LSGSR-062 | 70B | 85 | 6.8 | 341 |
| LSGSR-063 | 75 | 90 | 6.2 | 339 |
| LSGSR-064 | 75A | 85 | 4.2 | 235 |
| LSGSR-065 | 75B | 90 | 6.8 | 339 |
| LSGSR-066 | 80 | 95 | 6.2 | 340 |
| LSGSR-067 | 80A | 90 | 4.2 | 236 |
| LSGSR-068 | 80B | 95 | 6.8 | 341 |
| LSGSR-069 | 85 | 100.5 | 6.2 | 342 |
| LSGSR-070 | 85A | 100 | 6.8 | 342 |
| LSGSR-071 | 90 | 105.5 | 6.2 | 343 |
| LSGSR-072 | 90A | 105 | 6.8 | 344 |
| LSGSR-073 | 95 | 110.5 | 6.2 | 345 |
| LSGSR-074 | 95A | 110 | 6.8 | 346 |
| LSGSR-075 | 100 | 115 | 6.2 | 346 |
| LSGSR-076 | 100A | 115 | 6.8 | 346 |
| LSGSR-077 | 105 | 120 | 6.2 | 348 |
| LSGSR-078 | 106 | 120 | 6.8 | 349 |
| LSGSR-079 | 110 | 125 | 6.2 | 350 |
| LSGSR-080 | 110A | 125 | 6.8 | 350 |
| LSGSR-081 | 112 | 125 | 6.2 | 351 |
| LSGSR-082 | 115 | 130 | 6.2 | 351 |
| LSGSR-083 | 115 | 130 | 6.8 | 352 |
| LSGSR-084 | 120 | 135 | 6.2 | 353 |
| LSGSR-085 | 120A | 135 | 6.8 | 353 |
| LSGSR-086 | 125 | 140 | 6.2 | 354 |
| LSGSR-087 | 125A | 140 | 6.8 | 355 |
| LSGSR-088 | 130 | 145 | 6.2 | 356 |
| LSGSR-089 | 130A | 145 | 6.8 | 357 |
| LSGSR-90 | 135 | 150 | 6.2 | 357 |
| LSGSR-91 | 135A | 150 | 6.8 | 358 |
| LSGSR-92 | 136 | 150 | 6.8 | 358 |
| LSGSR-93 | 140 | 155 | 6.2 | 359 |
| LSGSR-94 | 140A | 155 | 6.8 | 360 |
| LSGSR-95 | 145 | 160 | 6.8 | 361 |
| LSGSR-96 | 150 | 165 | 6.2 | 361 |
| LSGSR-97 | 150A | 165 | 6.8 | 362 |
| LSGSR-98 | 155 | 170 | 6.8 | 363 |
| LSGSR-99 | 160 | 175 | 6.2 | 363 |
| LSGSR-100 | 160A | 175 | 6.8 | 363 |
| LSGSR-101 | 165 | 180 | 6.8 | 364 |
| LSGSR-102 | 170 | 185 | 6.2 | 365 |
| LSGSR-103 | 170A | 185 | 6.8 | 365 |
| LSGSR-104 | 175 | 190 | 6.8 | 366 |
| LSGSR-105 | 180 | 195 | 6.2 | 366 |
| LSGSR-106 | 180A | 200 | 8.0 | 443 |
| LSGSR-107 | 185 | 205 | 8.0 | 443 |
| LSGSR-108 | 190 | 205 | 8.0 | 368 |
| LSGSR-109 | 190A | 210 | 8.0 | 444 |
| LSGSR-110 | 195 | 215 | 8.0 | 445 |
| LSGSR-111 | 200 | 221 | 8.0 | 445 |
| LSGSR-112 | 200A | 220 | 8.0 | 445 |
| LSGSR-113 | 205 | 225 | 8.0 | 446 |
| LSGSR-114 | 210 | 231 | 8.0 | 446 |
| LSGSR-115 | 210A | 230 | 8.0 | 446 |
| LSGSR-116 | 215 | 235 | 8.0 | 446 |
| LSGSR-117 | 220 | 241 | 8.0 | 447 |
| LSGSR-118 | 220A | 240 | 8.0 | 447 |
| LSGSR-119 | 225 | 245 | 8.0 | 447 |
| LSGSR-120 | 230 | 251 | 8.0 | 448 |
| LSGSR-121 | 230A | 250 | 8.0 | 448 |
| LSGSR-122 | 235 | 255 | 8.0 | 448 |
| LSGSR-123 | 240 | 261 | 8.0 | 448 |
| LSGSR-124 | 240A | 260 | 8.0 | 448 |
| LSGSR-125 | 245 | 265 | 8.0 | 449 |
| LSGSR-126 | 250 | 271 | 8.0 | 449 |
| LSGSR-127 | 250A | 270 | 8.0 | 449 |
| LSGSR-128 | 255 | 275 | 8.0 | 450 |
| LSGSR-129 | 260 | 284 | 8.0 | 450 |
| LSGSR-130 | 260A | 280 | 8.0 | 450 |
| LSGSR-131 | 265 | 285 | 8.0 | 450 |
| LSGSR-132 | 270 | 294 | 8.0 | 451 |
| LSGSR-133 | 270A | 290 | 8.0 | 451 |
| LSGSR-134 | 275 | 295 | 8.0 | 451 |
| LSGSR-135 | 280 | 304 | 8.0 | 452 |
| LSGSR-136 | 280A | 300 | 8.0 | 452 |
| LSGSR-137 | 285 | 310 | 9.5 | P-295 |
| LSGSR-138 | 290 | 314 | 8.0 | 453 |
| LSGSR-139 | 290A | 315 | 9.5 | P300 |
| LSGSR-140 | 295 | 320 | 9.5 | P-305 |
| LSGSR-141 | 300 | 324 | 8.0 | 453 |
| LSGSR-142 | 300A | 325 | 9.5 | P-310 |
| LSGSR-143 | 310 | 334 | 8.0 | 454 |
| LSGSR-144 | 310A | 335 | 9.5 | P-320 |
| LSGSR-145 | 320 | 344 | 8.0 | 455 |
| LSGSR-146 | 320A | 345 | 9.5 | P-330 |
| LSGSR-147 | 330 | 354 | 8.0 | 456 |
| LSGSR-148 | 330A | 355 | 9.5 | P-340 |
| LSGSR-149 | 340 | 364 | 8.0 | 457 |
| LSGSR-150 | 340A | 365 | 9.5 | P-350 |
| LSGSR-151 | 350 | 374 | 8.0 | 457 |
| LSGSR-152 | 350A | 375 | 9.5 | P-360 |
| LSGSR-153 | 360 | 384 | 8.0 | 458 |
| LSGSR-154 | 360A | 385 | 9.5 | P-370 |
| LSGSR-155 | 370 | 394 | 8.0 | 459 |
| LSGSR-156 | 370A | 395 | 9.5 | P-380 |
| LSGSR-157 | 380 | 404 | 8.0 | 460 |
| LSGSR-158 | 380A | 405 | 9.5 | P-390 |
| LSGSR-159 | 390 | 414 | 8.0 | 461 |
| LSGSR-160 | 390A | 415 | 9.5 | P-400 |
| LSGSR-161 | 400 | 424 | 8.0 | 461 |
| LSGSR-162 | 400A | 425 | 9.5 | P-410 |
| LSGSR-163 | 410 | 434 | 8.0 | 462 |
| LSGSR-164 | 410A | 435 | 9.5 | P-420 |
| LSGSR-165 | 420 | 444 | 8.0 | 463 |
| LSGSR-166 | 420A | 445 | 9.5 | 430 |
| LSGSR-167 | 430 | 454 | 8.0 | 464 |
| LSGSR-168 | 430A | 455 | 9.5 | 440 |
| LSGSR-169 | 440 | 464 | 8.0 | 464 |
| LSGSR-170 | 440A | 465 | 9.5 | 450 |
| LSGSR-171 | 450 | 474 | 8.0 | 465 |
| LSGSR-172 | 450A | 475 | 9.5 | 460 |
| LSGSR-173 | 460 | 484 | 8.0 | 466 |
| LSGSR-174 | 460A | 485 | 9.5 | 470 |
| LSGSR-175 | 470 | 494 | 8.0 | 467 |
| LSGSR-176 | 470A | 495 | 9.5 | 480 |
| LSGSR-177 | 480 | 504 | 8.0 | 468 |
| LSGSR-178 | 480A | 504 | 9.5 | 490 |
| LSGSR-179 | 490 | 514 | 8.0 | 469 |
| LSGSR-180 | 490A | 515 | 9.5 | 500 |
| LSGSR-181 | 500 | 524 | 8.0 | 469 |
| LSGSR-182 | 500A | 525 | 9.5 | 510 |
| LSGSR-183 | 510 | 535 | 8.0 | 469 |
| LSGSR-184 | 510A | 535 | 9.5 | 520 |
| LSGSR-185 | 520 | 545 | 8.0 | 470 |
| LSGSR-186 | 520A | 545 | 9.5 | 530 |
| LSGSR-187 | 530 | 555 | 8.0 | 470 |
| LSGSR-188 | 530A | 555 | 9.5 | 540 |
| LSGSR-189 | 540 | 565 | 8.0 | 471 |
| LSGSR-190 | 540A | 565 | 9.5 | 550 |
| LSGSR-191 | 550 | 575 | 8.0 | 471 |
| LSGSR-192 | 550A | 575 | 9.5 | 560 |
| LSGSR-193 | 560 | 585 | 8.0 | 471 |
| LSGSR-194 | 560A | 585 | 9.5 | 570 |
| LSGSR-195 | 570 | 595 | 8.0 | 472 |
| LSGSR-196 | 570A | 595 | 9.5 | 580 |
| LSGSR-197 | 580 | 605 | 8.0 | 472 |
| LSGSR-198 | 580A | 605 | 9.5 | 590 |
| LSGSR-199 | 590 | 615 | 8.0 | 473 |
| LSGSR-200 | 590A | 615 | 9.5 | 600 |
| LSGSR-201 | 600 | 625 | 8.0 | 473 |
| LSGSR-202 | 600A | 625 | 9.5 | 610 |
| LSGSR-203 | 610 | 635 | 8.0 | 473 |
| LSGSR-204 | 610A | 635 | 9.5 | 620 |
| LSGSR-205 | 620 | 645 | 8.0 | 474 |
| LSGSR-206 | 620A | 645 | 9.5 | 630 |
| LSGSR-207 | 630 | 655 | 8.0 | 474 |
| LSGSR-208 | 630A | 655 | 9.5 | P640 |
| LSGSR-209 | 640 | 665 | 8.0 | 475 |
| LSGSR-210 | 640A | 665 | 9.5 | P650 |
| LSGSR-211 | 650 | 678 | 9.5 | P660 |
| LSGSR-212 | 650A | 675 | 9.5 | P660 |
| LSGSR-213 | 660 | 688 | 9.5 | P670 |
| LSGSR-214 | 660A | 685 | 9.5 | P670 |
| LSGSR-215 | 670 | 698 | 9.5 | P680 |
| LSGSR-216 | 670A | 695 | 9.5 | P680 |
| LSGSR-217 | 680 | 708 | 9.5 | P690 |
| LSGSR-218 | 680A | 705 | 9.5 | P690 |
| LSGSR-219 | 690 | 718 | 9.5 | P700 |
| LSGSR-220 | 690A | 715 | 9.5 | P700 |
| LSGSR-221 | 700 | 728 | 9.5 | P710 |
| LSGSR-222 | 700A | 725 | 9.5 | P710 |
| LSGSR-223 | 710 | 738 | 9.5 | P720 |
| LSGSR-224 | 710A | 735 | 9.5 | P720 |
| LSGSR-225 | 720 | 748 | 9.5 | P730 |
| LSGSR-226 | 720A | 745 | 9.5 | P730 |
| LSGSR-227 | 730 | 758 | 9.5 | P740 |
| LSGSR-228 | 730A | 755 | 9.5 | P740 |
| LSGSR-229 | 740 | 768 | 9.5 | P750 |
| LSGSR-230 | 740A | 765 | 9.5 | P750 |
| LSGSR-231 | 750 | 778 | 9.5 | P760 |
| LSGSR-232 | 750A | 775 | 9.5 | P760 |
| LSGSR-233 | 760 | 788 | 9.5 | P770 |
| LSGSR-234 | 760A | 785 | 9.5 | P770 |
| LSGSR-235 | 770 | 798 | 9.5 | P780 |
| LSGSR-236 | 770A | 795 | 9.5 | P780 |
| LSGSR-237 | 780 | 808 | 9.5 | P790 |
| LSGSR-238 | 780A | 805 | 9.5 | P790 |
| LSGSR-239 | 790 | 818 | 9.5 | P800 |
| LSGSR-240 | 790A | 815 | 9.5 | P800 |
| LSGSR-241 | 800 | 828 | 9.5 | P810 |
| LSGSR-242 | 800A | 825 | 9.5 | P810 |
| LSGSR-243 | 810 | 838 | 9.5 | P820 |
| LSGSR-244 | 810A | 835 | 9.5 | P820 |
| LSGSR-245 | 820 | 848 | 9.5 | P830 |
| LSGSR-246 | 820A | 845 | 9.5 | P830 |
| LSGSR-247 | 830 | 858 | 9.5 | P840 |
| LSGSR-248 | 830A | 855 | 9.5 | P840 |
