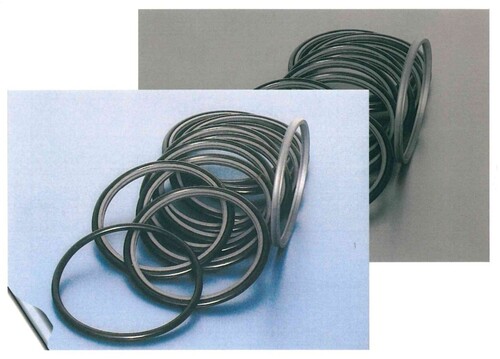

SEAL_PNC

MATERISL:GLASS+PTFE、BRONZE+PTFE、BRASS+PTFE、GLASS FIBER20%+GRAPHITE5%+PTFE

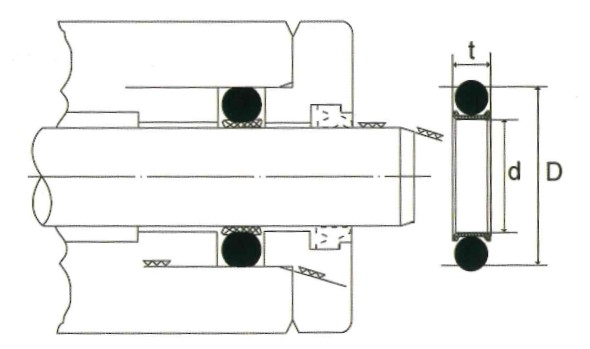

ITEM/NO	d	D	t	RING
LSPNC-001	P3	5.6	2.5	2.7×1.7
LSPNC-002	P4	6.6	2.5	3.7×1.7
LSPNC-003	P5	7.6	2.5	4.7×1.7
LSPNC-004	P6	8.6	2.5	5.7×1.7
LSPNC-005	P7	9.6	2.5	6.7×1.7
LSPNC-006	P8	10.6	2.5	7.7×1.7
LSPNC-007	P9	11.6	2.5	87×1.7
LSPNC-008	P10	12.6	2.5	9.7×1.7
LSPNC-009	P10A	13.6	3.2	P-10A
LSPNC-010	P11	14.6	3.2	P-11
LSPNC-011	P11.2	14.8	3.2	P11.2
LSPNC-012	P12	15.6	3.2	P-12
LSPNC-013	P12.5	16.1	3.2	P-12.5
LSPNC-014	P14	17.6	3.2	P-14
LSPNC-015	P15	18.6	3.2	P-15
LSPNC-016	P16	19.6	3.2	P-16
LSPNC-017	P18	21.6	3.2	P-18
LSPNC-018	P20	23.6	3.2	P-20
LSPNC-019	P21	24.6	3.2	P-21
LSPNC-020	P22	25.6	3.2	P-22
LSPNC-021	P22A	27.5	4.6	P-22A
LSPNC-022	P22.4	27.9	4.6	P-22.4
LSPNC-023	P24	29.5	4.6	P-24
LSPNC-024	P25	30.5	4.6	P-25
LSPNC-025	P25.5	31	4.6	P-25.5
LSPNC-026	P26	31.5	4.6	P-26
LSPNC-027	P28	33.5	4.6	P-28
LSPNC-028	P29.5	34.5	4.6	P-29.5
LSPNC-029	P29.5	35.0	4.6	P-29.5
LSPNC-030	P30	35.5	4.6	P-30
LSPNC-031	P31	36.5	4.6	P-31
LSPNC-032	P31.5	37.0	4.6	P-31.5
LSPNC-033	P32	37.5	4.6	P-32
LSPNC-034	P34	39.5	4.6	P-34
LSPNC-035	P35	40.5	4.6	P-35
LSPNC-036	P35.5	41.0	4.6	P-35.5
LSPNC-037	P36	41.5	4.6	P-36
LSPNC-038	P38	43.5	4.6	P-38
LSPNC-039	P39	44.5	4.6	P-39
LSPNC-040	P40	45.5	4.6	P-40
LSPNC-041	P41	46.5	4.6	P-41
LSPNC-042	P42	47.5	4.6	P-42
LSPNC-043	P44	49.5	4.6	P-44
LSPNC-044	P45	50.5	4.6	P-45
LSPNC-045	P46	51.5	4.6	P-46
LSPNC-046	P48	53.5	4.6	P-48
LSPNC-047	P49	54.5	4.6	P-49
LSPNC-048	P50	55	4.6	P-50
LSPNC-049	P48A	57	7.2	P-48A
LSPNC-050	P50A	59	7.2	P-50A
LSPNC-051	P52	61	7.2	P-52
LSPNC-052	P53	62	7.2	P-53
LSPNC-053	P55	64	7.2	P-55
LSPNC-054	P56	65	7.2	P-56
LSPNC-055	P58	67	7.2	P-58
LSPNC-056	P60	69	7.2	P-60
LSPNC-057	P62	71	7.2	P-62
LSPNC-058	P63	72	7.2	P-63
LSPNC-059	P65	74	7.2	P-65
LSPNC-060	P67	76	7.2	P-67
LSPNC-061	P70	79	7.2	P-70
LSPNC-062	P71	80	7.2	P-71
LSPNC-063	P75	84	7.2	P-75
LSPNC-064	P80	89	7.2	P-80
LSPNC-065	P85	94	7.2	P-85
LSPNC-066	P90	99	7.2	P-90
LSPNC-067	P95	104	7.2	P-95
LSPNC-068	P100	109	7.2	P-100
LSPNC-069	P102	111	7.2	P-102
LSPNC-070	P105	114	7.2	P-105
LSPNC-071	P110	119	7.2	P-110
LSPNC-072	P112	121	7.2	P-112
LSPNC-073	P115	124	7.2	P-115
LSPNC-074	P120	129	7.2	P-120
LSPNC-075	P125	134	7.2	P-125
LSPNC-076	P130	139	7.2	P-130
LSPNC-077	P132	141	7.2	P-132
LSPNC-078	P135	144	7.2	P-135
LSPNC-079	P140	149	7.2	P-140
LSPNC-080	P145	154	7.2	P-145
LSPNC-081	P150	159	7.2	P-150
LSPNC-082	P150A	163.5	10.2	P150A
LSPNC-083	P155	168.5	10.2	P155
LSPNC-084	P160	173.5	10.2	P160
LSPNC-085	P165	178.5	10.2	P165
LSPNC-086	P170	183.5	10.2	P170
LSPNC-087	P175	188.5	10.2	P175
LSPNC-088	P180	193.5	10.2	P180
LSPNC-089	P185	198.5	10.2	P185
LSPNC-090	P190	203.5	10.2	P190
LSPNC-091	P195	208.5	10.2	P195
LSPNC-092	P200	213.5	10.2	P200
LSPNC-093	P205	218.5	10.2	P205
LSPNC-094	P209	222	10.2	P209
LSPNC-095	P210	223.5	10.2	P210
LSPNC-096	P215	228.5	10.2	P215
LSPNC-097	P220	233.5	10.2	P220
LSPNC-098	P225	238.5	10.2	P225
LSPNC-099	P230	243.5	10.2	P230
LSPNC-100	P235	248.5	10.2	P235
LSPNC-101	P240	253.5	10.2	P240
LSPNC-102	P245	258.5	10.2	P245
LSPNC-103	P250	263.5	10.2	P250
LSPNC-104	P255	268.5	10.2	P255
LSPNC-105	P260	273.5	10.2	P260
LSPNC-106	P265	278.5	10.2	P265
LSPNC-107	P270	283.5	10.2	P270
LSPNC-108	P275	288.5	10.2	P275
LSPNC-109	P280	293.5	10.2	P280
LSPNC-110	P285	298.5	10.2	P285
LSPNC-111	P290	303.5	10.2	P290
LSPNC-112	P295	308.5	10.2	P295
LSPNC-113	P300	313.5	10.2	P300
LSPNC-114	P305	318.5	10.2	P305
LSPNC-115	P310	323.5	10.2	P310
LSPNC-116	P315	328.5	10.2	P315
LSPNC-117	P320	333.5	10.2	P320
LSPNC-118	P325	338.5	10.2	P325
LSPNC-119	P330	343.5	10.2	P330
LSPNC-120	P335	348.5	10.2	P335
LSPNC-121	P340	353.5	10.2	P340
LSPNC-122	P345	358.5	10.2	P345
LSPNC-123	P350	363.5	10.2	P350
LSPNC-124	P355	368.5	10.2	P355
LSPNC-125	P360	373.5	10.2	P360
LSPNC-126	P365	378.5	10.2	P365
LSPNC-127	P370	383.5	10.2	P370
LSPNC-128	P375	388.5	10.2	P375
LSPNC-129	P380	393.5	10.2	P380
LSPNC-130	P385	398.5	10.2	P385
LSPNC-131	P390	403.5	10.2	P390
LSPNC-132	P395	408.5	10.2	P395
LSPNC-133	P400	413.5	10.2	P400
LSPNC-134	P405	418.5	10.2	P405
LSPNC-135	P410	423.5	10.2	P410
LSPNC-136	P415	428.5	10.2	P415
LSPNC-137	P420	433.5	10.2	P420
LSPNC-138	P425	438.5	10.2	P425
LSPNC-139	P430	443.5	10.2	P430
LSPNC-140	P435	448.5	10.2	P435
LSPNC-141	P440	453.5	10.2	P440
LSPNC-142	P445	458.5	10.2	P445
LSPNC-143	P450	463.5	10.2	P450
LSPNC-144	P455	468.5	10.2	P455
LSPNC-145	P460	473.5	10.2	P460
LSPNC-146	P465	478.5	10.2	P465
LSPNC-147	P470	483.5	10.2	P470
LSPNC-148	P475	493.5	10.2	P475
LSPNC-149	P480	498.5	10.2	P480
LSPNC-150	P485	503.5	10.2	P485
LSPNC-151	P490	508.5	10.2	P490
LSPNC-152	P495	513.5	10.2	P495
LSPNC-153	P500	518.5	10.2	P500

SEAL_PNC
