SEAL_SPGI  |Specifications|WEAR RING

SEAL_SPGI


MATERISL:GLASS+PTFE、BRONZE+PTFE、BRASS+PTFE、GLASS FIBER20%+GRAPHITE5%+PTFE

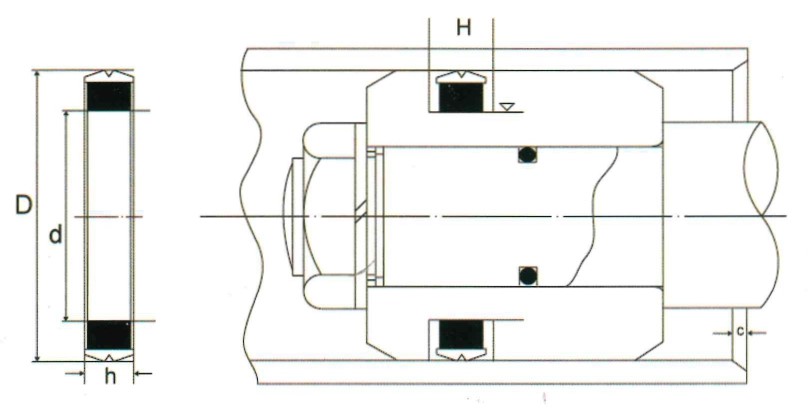

ITEM D d h H C
LSSPGI-001 30 20.5 4.3 4.5 2
LSSPGI-002 31.5 22 4.3 4.5 3.5
LSSPGI-003 32 22.5 43 4.5 3.5
LSSPGI-004 40 30 4.3 4.5 3.5
LSSPGI-005 50 40 4.3 4.5 4
LSSPGI-006 63 48 7.3 7.5 4
LSSPGI-007 80 65 7.3 7.5 5
LSSPGI-008 100 85 7.3 7.5 5
LSSPGI-009 125 109 7.3 7.5 6.5
LSSPGI-010 140 124 7.3 7.5 6.5
LSSPGI-011 160 144 7.3 7.5 6.5
LSSPGI-012 180 158 10.8 11 6.5
LSSPGI-013 200 178 10.8 11 6.5
LSSPGI-014 220 198 10.8 11 6.5
LSSPGI-015 224 202 10.8 11 6.5
LSSPGI-016 250 228 10.8 11 6.5
