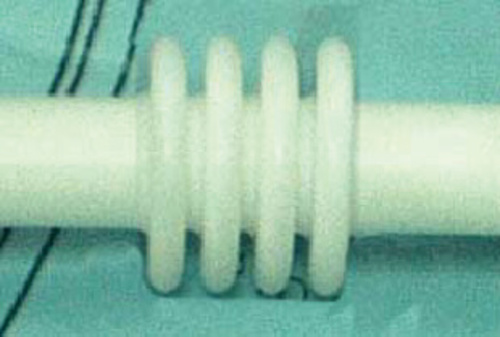

PTFE shockproof tube
Material : PTFE、PFA、FEP

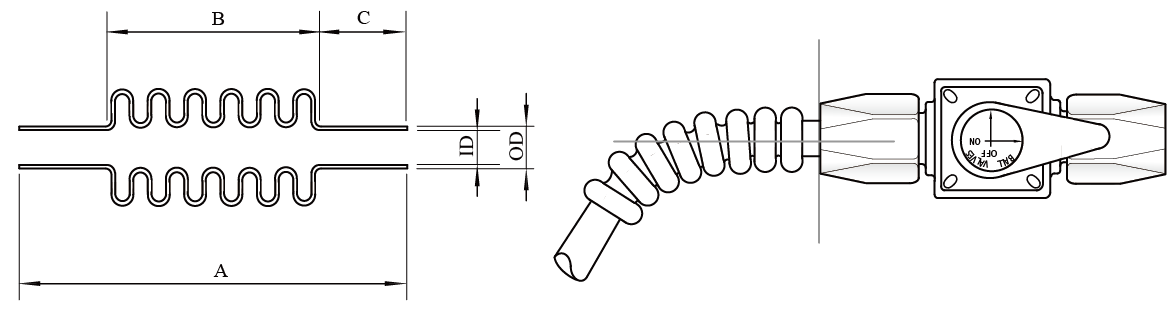

| Mm Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| S-N0006 | 8×6 | 40 | 15 | 12 |
| S-N0008 | 10×8 | 40 | 15 | 12 |
| S-N0010 | 12×10 | 55 | 25 | 15 |
| S-N0016 | 19×15.8 | 85 | 35 | 25 |
| S-N0022 | 25×22 | 110 | 50 | 30 |
| Inch Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| S-N0008 | 3/8"×1/4" | 40 | 15 | 12 |
| S-N0010 | 1/2"×3/8" | 55 | 20 | 15 |
| S-N0016 | 3/4"×5/8" | 85 | 35 | 25 |
| S-N0022 | 1"×7/8" | 110 | 50 | 30 |
