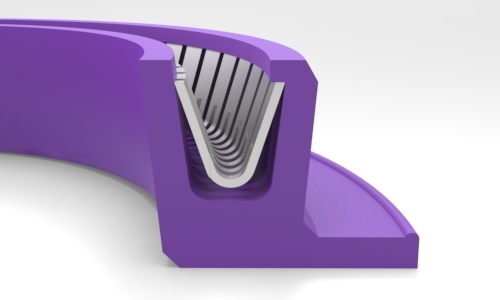

SpringSeal101-Metric units
Product number |
(D) Bore diameter |
(d) Shaft diameter |
h(t) |
H |
10101 |
30 |
20.5 |
4.3 |
3.3 |
10102 |
31.5 |
22 |
4.3 |
3.3 |
10103 |
32 |
22.5 |
4.3 |
3.3 |
10104 |
35 |
25.5 |
4.3 |
3.3 |
10105 |
35.5 |
26 |
4.3 |
3.3 |
10106 |
40 |
30 |
4.3 |
3.3 |
10107 |
45 |
35 |
4.3 |
3.3 |
10108 |
50 |
40 |
4.3 |
5 |
10109 |
55 |
45 |
4.3 |
5 |
10110 |
56 |
46 |
4.3 |
5 |
10111 |
60 |
50 |
4.3 |
5 |
10112 |
63 |
48 |
7.3 |
5 |
10113 |
65 |
50 |
7.3 |
5 |
10114 |
69 |
54 |
7.3 |
5 |
10115 |
70 |
55 |
7.3 |
5 |
10116 |
71 |
56 |
7.3 |
5 |
10117 |
75 |
60 |
7.3 |
5 |
10118 |
80 |
65 |
7.3 |
5 |
10119 |
85 |
70 |
7.3 |
5 |
10120 |
90 |
75 |
7.3 |
5 |
10121 |
95 |
80 |
7.3 |
5 |
10122 |
100 |
85 |
7.3 |
5 |
10123 |
108 |
92 |
7.3 |
5 |
10124 |
110 |
94 |
7.3 |
5 |
10125 |
112 |
96 |
7.3 |
5 |
10126 |
120 |
104 |
7.3 |
6 |
10127 |
125 |
109 |
7.3 |
6 |
10128 |
130 |
114 |
7.3 |
6 |
10129 |
140 |
124 |
7.3 |
6 |
10130 |
145 |
129 |
7.3 |
6 |
10131 |
150 |
134 |
7.3 |
6 |
10132 |
155 |
139 |
7.3 |
6 |
10133 |
160 |
144 |
7.3 |
6 |
10134 |
170 |
148 |
10.8 |
7.5 |
10135 |
180 |
158 |
10.8 |
7.5 |
10136 |
190 |
168 |
10.8 |
7.5 |
10137 |
200 |
178 |
10.8 |
7.5 |
10138 |
201 |
182 |
10.8 |
7.5 |
10139 |
210 |
188 |
10.8 |
7.5 |
10140 |
220 |
192 |
10.8 |
7.5 |
10141 |
224 |
202 |
10.8 |
7.5 |
10142 |
225 |
203 |
10.8 |
7.5 |
10143 |
230 |
208 |
10.8 |
7.5 |
10144 |
240 |
218 |
10.8 |
7.5 |
10145 |
250 |
228 |
10.8 |
7.5 |
10146 |
260 |
236 |
11.7 |
8 |
10147 |
270 |
246 |
11.7 |
8 |
10148 |
280 |
256 |
11.7 |
8 |
10149 |
290 |
266 |
11.7 |
8 |
10150 |
300 |
276 |
11.7 |
8 |
10151 |
310 |
286 |
11.7 |
8 |
10152 |
320 |
296 |
11.7 |
8 |
10153 |
330 |
308 |
9.75 |
8 |
10154 |
360 |
336 |
11.7 |
8 |
10155 |
485 |
455 |
14.8 |
10 |
10156 |
500 |
470 |
14.8 |
10 |
10157 |
550 |
515 |
17.2 |
10 |
10158 |
600 |
570 |
14.8 |
10 |
10159 |
650 |
620 |
14.8 |
10 |
10160 |
720 |
690 |
14.8 |
10 |
10161 |
800 |
785 |
12.7 |
10 |
10162 |
900 |
870 |
24.5 |
10 |
10163 |
930 |
980 |
19 |
15 |
10164 |
935 |
920 |
12.7 |
15 |
10165 |
950 |
925 |
17.7 |
15 |
10166 |
1000 |
960 |
19.7 |
15 |
