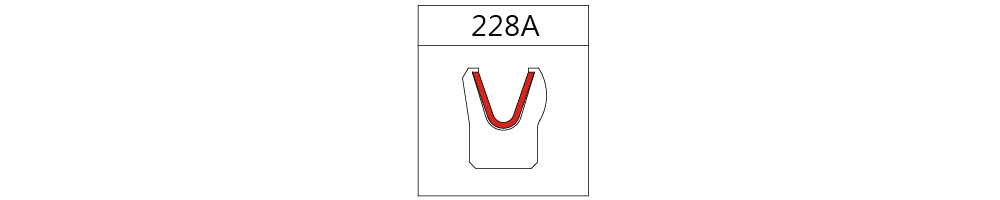

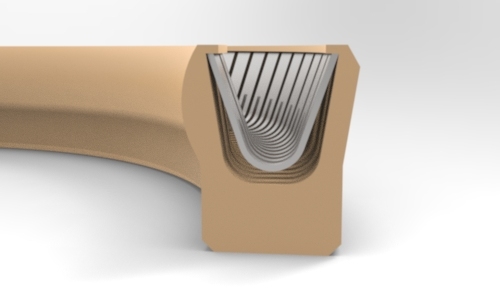

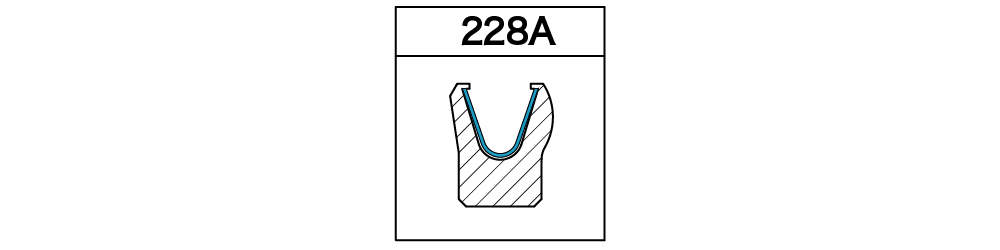

SpringSeal228-Metric units
We can also manufacture gaskets according to customer-specified dimensions or technical drawings.
| Product number | (D) Bore diameter | (d) Shaft diameter | h(t) |
|---|---|---|---|
| 22801 | 35 | 27 | 4 |
| 22802 | 35.5 | 27.5 | 4 |
| 22803 | 40 | 32 | 4 |
| 22804 | 41.5 | 33.5 | 4 |
| 22805 | 45 | 37 | 4 |
| 22806 | 50 | 42 | 4 |
| 22807 | 55 | 45 | 5 |
| 22808 | 56 | 46 | 5 |
| 22809 | 60 | 50 | 5 |
| 22810 | 63 | 53 | 5 |
| 22811 | 65 | 55 | 5 |
| 22812 | 66 | 56 | 5 |
| 22813 | 70 | 60 | 5 |
| 22814 | 71 | 61 | 5 |
| 22815 | 73 | 63 | 5 |
| 22816 | 75 | 65 | 5 |
| 22817 | 77 | 67 | 5 |
| 22818 | 80 | 70 | 5 |
| 22819 | 85 | 75 | 5 |
| 22820 | 90 | 80 | 5 |
| 22821 | 100 | 86 | 7 |
| 22822 | 105 | 91 | 7 |
| 22823 | 110 | 96 | 7 |
| 22824 | 112 | 98 | 7 |
| 22825 | 115 | 101 | 7 |
| 22826 | 120 | 106 | 7 |
| 22827 | 125 | 111 | 7 |
| 22828 | 130 | 116 | 7 |
| 22829 | 140 | 126 | 7 |
| 22830 | 150 | 136 | 7 |
| 22831 | 155 | 141 | 7 |
| 22832 | 160 | 146 | 7 |
| 22833 | 170 | 156 | 7 |
| 22834 | 175 | 161 | 7 |
| 22835 | 180 | 166 | 7 |
| 22836 | 190 | 176 | 7 |
| 22837 | 200 | 182 | 9 |
| 22838 | 210 | 192 | 9 |
| 22839 | 220 | 202 | 9 |
| 22840 | 224 | 206 | 9 |
| 22841 | 225 | 207 | 9 |
| 22842 | 230 | 212 | 9 |
| 22843 | 240 | 222 | 9 |
| 22844 | 250 | 232 | 9 |
| 22845 | 260 | 242 | 9 |
| 22846 | 270 | 252 | 9 |
| 22847 | 280 | 262 | 9 |
| 22848 | 290 | 272 | 9 |
| 22849 | 300 | 282 | 9 |
