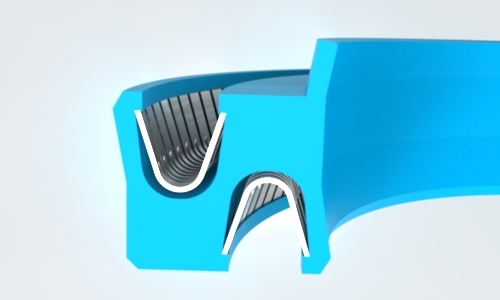

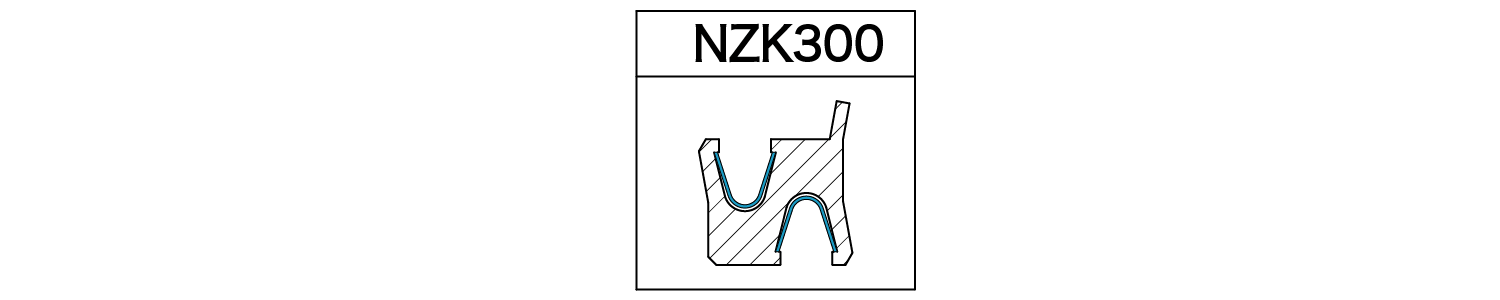

SpringSeal300-Metric units
Product number |
(D) Bore diameter |
(d) Shaft diameter |
h(t) |
30001 |
21 |
10 |
4.2 |
30002 |
23 |
12 |
4.2 |
30003 |
26 |
15 |
4.2 |
30004 |
28 |
17 |
4.2 |
30005 |
31 |
19.05 |
4.4 |
30006 |
31 |
20 |
4.2 |
30007 |
38 |
25 |
5.4 |
30008 |
43 |
28.58 |
5.6 |
30009 |
43 |
30 |
5.4 |
30010 |
43 |
30.16 |
5.4 |
30011 |
48 |
31.75 |
5.9 |
30012 |
48 |
34.92 |
5.5 |
30013 |
48 |
35 |
5.4 |
30014 |
53 |
38.1 |
5.7 |
30015 |
53 |
40 |
5.4 |
30016 |
58 |
44.45 |
5.5 |
30017 |
58 |
45 |
5.4 |
30018 |
67 |
49.21 |
7.1 |
30019 |
67 |
50 |
6.9 |
30020 |
67 |
50.8 |
6.9 |
30021 |
72 |
55 |
6.9 |
30022 |
77 |
57.15 |
7.2 |
30023 |
77 |
60 |
6.8 |
30024 |
77 |
60.32 |
6.9 |
30025 |
82 |
63.5 |
7.1 |
30026 |
82 |
65 |
6.8 |
30027 |
89 |
69.85 |
8.2 |
30028 |
89 |
70 |
8.1 |
30029 |
94 |
74.61 |
8.2 |
30030 |
94 |
75 |
8.1 |
30031 |
99 |
79.38 |
8.2 |
30032 |
99 |
80 |
8.1 |
30033 |
104 |
85 |
8.1 |
30034 |
111 |
88.9 |
9.5 |
30035 |
111 |
90 |
9.3 |
30036 |
116 |
95 |
9.3 |
30037 |
116 |
95.25 |
9.3 |
30038 |
125 |
100 |
10.8 |
30039 |
125 |
100.01 |
10.8 |
30040 |
130 |
105 |
10.8 |
30041 |
135 |
110 |
10.7 |
30042 |
140 |
114.3 |
10.9 |
30043 |
140 |
115 |
10.7 |
30044 |
146 |
120 |
12.2 |
30045 |
154 |
125 |
12.2 |
30046 |
154 |
125.41 |
12.3 |
30047 |
159 |
130 |
12.2 |
30048 |
164 |
135 |
12.2 |
30049 |
173 |
139.7 |
13.8 |
30050 |
173 |
140 |
13.7 |
30051 |
183 |
150 |
13.7 |
30052 |
193 |
160 |
13.7 |
30053 |
203 |
170 |
13.7 |
30054 |
213 |
180 |
13.7 |
30055 |
223 |
190 |
13.7 |
30056 |
240 |
200 |
15.5 |
30057 |
250 |
210 |
15.5 |
30058 |
260 |
220 |
15.5 |
30059 |
286 |
240 |
17.3 |
30060 |
296 |
250 |
17.3 |
30061 |
306 |
260 |
17.3 |
30062 |
332 |
280 |
19 |
30063 |
352 |
300 |
19 |
30064 |
372 |
320 |
20 |
30065 |
432 |
380 |
20 |
