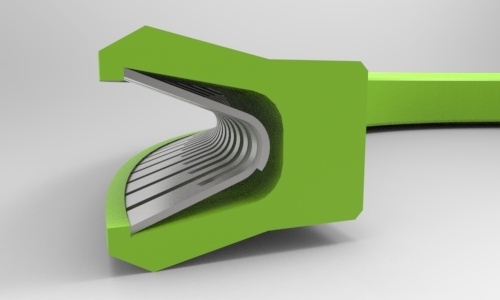

SpringSeal760-Metric units
Product number |
(D) Bore diameter |
(d) Shaft diameter |
h(t) |
76001 |
14.3 |
6.3 |
5 |
76002 |
16.3 |
6.3 |
6 |
76003 |
16.3 |
6.3 |
7.5 |
76004 |
16.3 |
6.3 |
8 |
76005 |
16 |
8 |
5 |
76006 |
18 |
8 |
6 |
76007 |
18 |
8 |
7.5 |
76008 |
18 |
8 |
8 |
76009 |
17 |
9 |
5 |
76010 |
19 |
9 |
6 |
76011 |
19 |
9 |
7.5 |
76012 |
19 |
9 |
8 |
76013 |
18 |
10 |
5 |
76014 |
20 |
10 |
6 |
76015 |
20 |
10 |
7.5 |
76016 |
20 |
10 |
8 |
76017 |
19.2 |
12 |
5 |
76018 |
21.2 |
12 |
6 |
76019 |
21.2 |
12 |
7.5 |
76020 |
21.2 |
12 |
8 |
76021 |
20.5 |
12.5 |
5 |
76022 |
22.5 |
12.5 |
6 |
76023 |
22.5 |
12.5 |
7.5 |
76024 |
22.5 |
12.5 |
8 |
76025 |
22 |
14 |
5 |
76026 |
24 |
14 |
6 |
76027 |
24 |
14 |
7.5 |
76028 |
24 |
14 |
8 |
76029 |
23 |
15 |
5 |
76030 |
25 |
15 |
6 |
76031 |
25 |
15 |
8 |
76032 |
28 |
15 |
8 |
76033 |
28 |
15 |
10 |
76034 |
24 |
16 |
5 |
76035 |
26 |
16 |
6 |
76036 |
26 |
16 |
7.5 |
76037 |
26 |
16 |
8 |
76038 |
28 |
18 |
6 |
76039 |
28 |
18 |
8 |
76040 |
31 |
18 |
8 |
76041 |
31 |
18 |
10 |
76042 |
30 |
20 |
6 |
76043 |
30 |
20 |
8 |
76044 |
33 |
20 |
8 |
76045 |
33 |
20 |
10 |
76046 |
35 |
22 |
10 |
76047 |
32.4 |
22.4 |
6 |
76048 |
32.4 |
22.4 |
8 |
76049 |
35.4 |
22.4 |
8 |
76050 |
35.4 |
22.4 |
10 |
76051 |
35 |
25 |
6 |
76052 |
35 |
25 |
8 |
76053 |
38 |
25 |
8 |
76054 |
38 |
25 |
10 |
76055 |
40 |
27 |
9 |
76056 |
40 |
27 |
10 |
76057 |
40 |
27 |
10 |
76058 |
38 |
27 |
6 |
76059 |
38 |
27 |
8 |
76060 |
41 |
27 |
8 |
76061 |
41 |
28 |
10 |
76062 |
43 |
30 |
9 |
76063 |
43 |
30 |
10 |
76064 |
40 |
30 |
8 |
76065 |
43 |
30 |
10 |
76066 |
45 |
30 |
9 |
76067 |
45 |
30 |
10 |
76068 |
41.5 |
31.5 |
8 |
76069 |
44.5 |
31.5 |
8 |
76070 |
44.5 |
31.5 |
10 |
76071 |
46.5 |
31.5 |
9 |
76072 |
46.5 |
34 |
10 |
76073 |
50 |
34 |
12 |
76074 |
45 |
34 |
8 |
76075 |
50 |
34 |
9 |
76076 |
50 |
34 |
10 |
76077 |
50 |
35 |
12 |
76078 |
45.5 |
35.5 |
8 |
76079 |
50.5 |
35.5 |
9 |
76080 |
50.5 |
35.5 |
10 |
76081 |
51.5 |
35.5 |
10 |
76082 |
51.5 |
40 |
12 |
76083 |
50 |
40 |
8 |
76084 |
55 |
40 |
9 |
76085 |
55 |
40 |
10 |
76086 |
56 |
40 |
10 |
76087 |
56 |
40 |
12 |
76088 |
55 |
45 |
8 |
76089 |
60 |
45 |
9 |
76090 |
60 |
45 |
10 |
76091 |
61 |
45 |
10 |
76092 |
61 |
45 |
12 |
76093 |
63 |
47 |
12 |
76094 |
60 |
50 |
8 |
76095 |
65 |
50 |
9 |
76096 |
65 |
50 |
10 |
76097 |
66 |
50 |
10 |
76098 |
66 |
50 |
12 |
76099 |
70 |
50 |
12 |
76100 |
69 |
53 |
12 |
76101 |
65 |
55 |
8 |
76102 |
70 |
55 |
9 |
76103 |
70 |
55 |
10 |
76104 |
71 |
55 |
10 |
76105 |
71 |
55 |
12 |
76106 |
75 |
55 |
12 |
76107 |
66 |
56 |
8 |
76108 |
71 |
56 |
9 |
76109 |
71 |
56 |
10 |
76110 |
72 |
56 |
10 |
76111 |
72 |
56 |
12 |
76112 |
76 |
56 |
12 |
76113 |
70 |
60 |
8 |
76114 |
75 |
60 |
9 |
76115 |
75 |
60 |
10 |
76116 |
76 |
60 |
10 |
76117 |
76 |
60 |
12 |
76118 |
80 |
60 |
12 |
76119 |
73 |
63 |
8 |
76120 |
78 |
63 |
9 |
76121 |
78 |
63 |
10 |
76122 |
79 |
63 |
10 |
76123 |
79 |
63 |
12 |
76124 |
83 |
63 |
12 |
