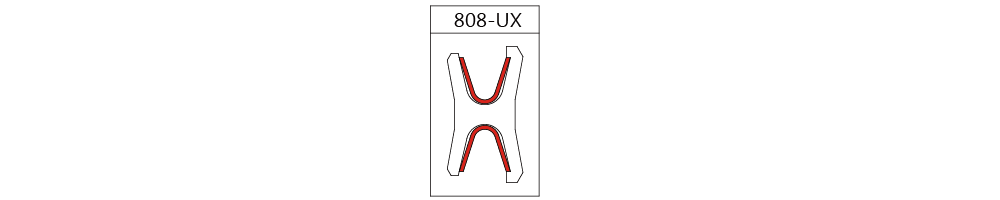

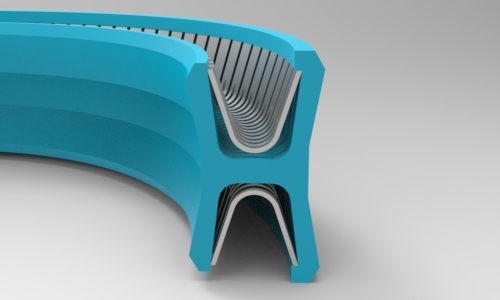

SpringSeal808-Metric units
Product number |
(D) Bore diameter |
(d) Shaft diameter |
h(t) |
80801 |
22 |
14 |
10 |
80802 |
24 |
16 |
10 |
80803 |
26 |
18 |
10 |
80804 |
28 |
20 |
10 |
80805 |
30 |
22 |
10 |
90806 |
30 |
22.4 |
10 |
80807 |
31.5 |
23.5 |
10 |
80808 |
32 |
24 |
10 |
80809 |
33 |
25 |
10 |
80810 |
35 |
27 |
10 |
80811 |
35.5 |
28 |
10 |
80812 |
36 |
28 |
10 |
80813 |
40 |
30 |
12 |
80814 |
41.5 |
31.5 |
12 |
80815 |
42 |
32 |
12 |
80816 |
45 |
35 |
12 |
80817 |
45 |
35.5 |
12 |
80818 |
45.5 |
35.5 |
12 |
80819 |
46 |
36 |
12 |
80820 |
50 |
40 |
12 |
80821 |
55 |
45 |
12 |
80822 |
56 |
45 |
14 |
80823 |
60 |
50 |
12 |
80824 |
63 |
53 |
12 |
80825 |
65 |
55 |
12 |
80826 |
66 |
56 |
12 |
80827 |
68 |
58 |
12 |
80828 |
70 |
60 |
12 |
80829 |
71 |
60 |
14 |
80830 |
73 |
63 |
12 |
80831 |
75 |
65 |
12 |
80832 |
77 |
67 |
12 |
80833 |
80 |
70 |
12 |
80834 |
80 |
71 |
12 |
80835 |
85 |
75 |
12 |
80836 |
90 |
80 |
12 |
80837 |
95 |
85 |
12 |
80838 |
100 |
85 |
18 |
80839 |
105 |
90 |
17 |
80840 |
110 |
95 |
17 |
80841 |
112 |
98 |
17 |
80842 |
115 |
100 |
18 |
80843 |
120 |
106 |
17 |
80844 |
125 |
112 |
17 |
80845 |
125 |
112 |
18 |
80846 |
132 |
118 |
17 |
80847 |
140 |
125 |
18 |
80848 |
145 |
130 |
18 |
80849 |
145 |
132 |
17 |
80850 |
150 |
136 |
17 |
80851 |
155 |
140 |
18 |
80852 |
160 |
145 |
18 |
80853 |
165 |
150 |
18 |
80854 |
170 |
155 |
18 |
80855 |
175 |
160 |
18 |
80856 |
180 |
165 |
18 |
80857 |
190 |
175 |
18 |
80858 |
200 |
180 |
24 |
80859 |
210 |
190 |
24 |
80860 |
220 |
200 |
24 |
80861 |
224 |
204 |
24 |
80862 |
244 |
224 |
24 |
80863 |
250 |
230 |
24 |
80864 |
260 |
240 |
24 |
80865 |
270 |
250 |
24 |
80866 |
280 |
260 |
28 |
80867 |
300 |
280 |
28 |
80868 |
315 |
295 |
28 |
