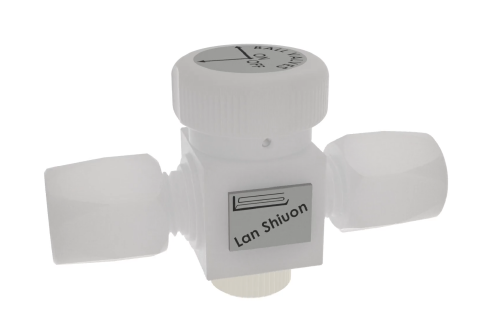

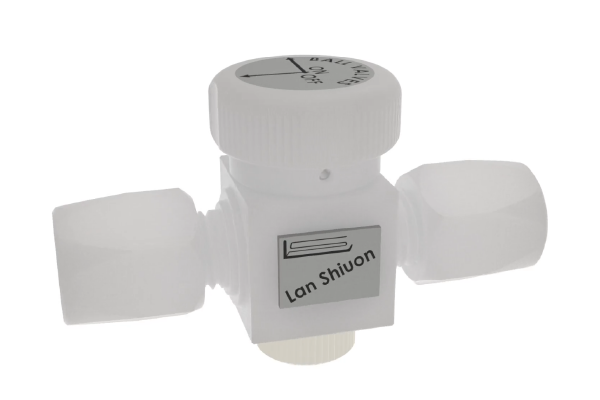

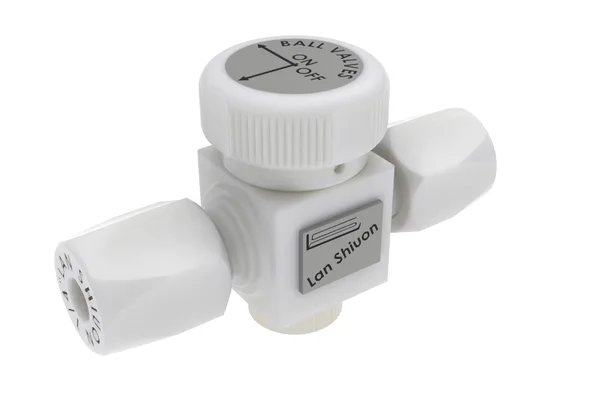

TAPER VALVE
Material : TFM
The design bottom nut on the cone valve,the function has tow charcters:
1.It can fix the rotational position of the cone valve.
2.The cone shaft will away and loose when using for a pariod.Our design can adjust the nut to be tightly.Let you can use the cone valve again.
1.It can fix the rotational position of the cone valve.
2.The cone shaft will away and loose when using for a pariod.Our design can adjust the nut to be tightly.Let you can use the cone valve again.
| Model | |
|---|---|
| How to use | Handes |
| Action | Stem90° |
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |

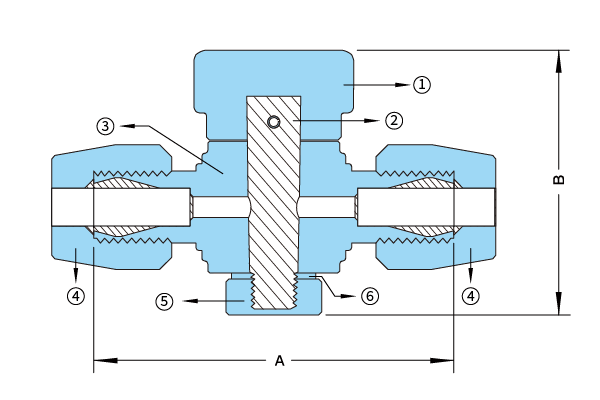

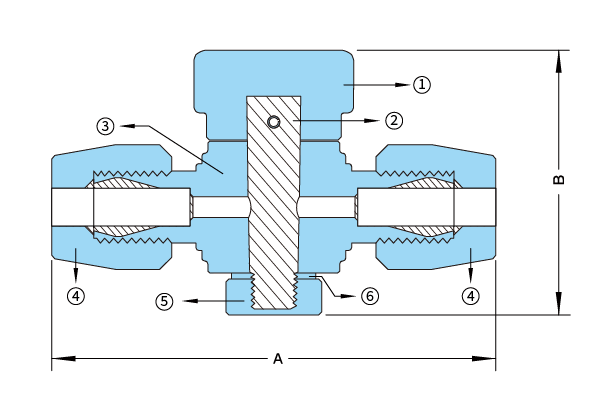

| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
|
It's the part of
contacting of liquid. |
1 | HANDLE | POM |
| 2 | STEM | TFM | |
| 3 | BODY | TFM | |
| 4 | UNION NUT | TFM | |
| 5 | WASHER | POM | |
| 6 | NUT | POM |
| Mm Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | ||
| 2PV-T002 | 4×2 | 57 | 46 | ||
| 2PV-T004 | 6×4 | 57 | 46 | ||
| 2PV-T006 | 8×6 | 64 | 53 | ||
| 2PV-T008 | 10×8 | 64 | 53 | ||
| 2PV-T0010 | 12×10 | 64 | 53 | ||
| 2PV-T0016 | 19×15.8 | 108 | 65 | ||
| 2PV-T0022 | 25×22 | 108 | 65 | ||
| Inch Tube type | |||
|---|---|---|---|
| NO. | OD×ID | A | B |
| 2PV-T004 | 1/8"×0.086" | 57 | 46 |
| 2PV-T006 | 1/4"×5/32" | 57 | 46 |
| 2PV-T008 | 3/8"×1/4" | 64 | 53 |
| 2PV-T0010 | 1/2"×3/8" | 64 | 53 |
| 2PV-T0016 | 3/4"×5/8" | 108 | 65 |
| 2PV-T0022 | 1"×7/8" | 108 | 65 |
