PFA tubing  |Specifications|SPIRAL PTFE TUBE

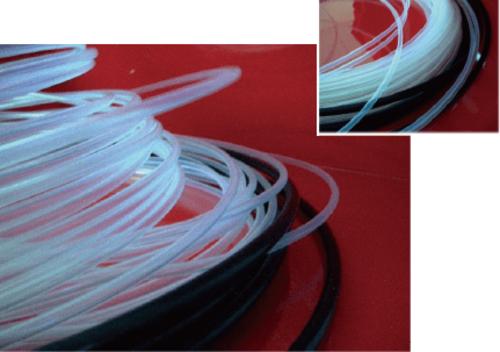

PFA tubing


Material : PTFE、PFA、FEP




Mm Tube Type                    單位:mm

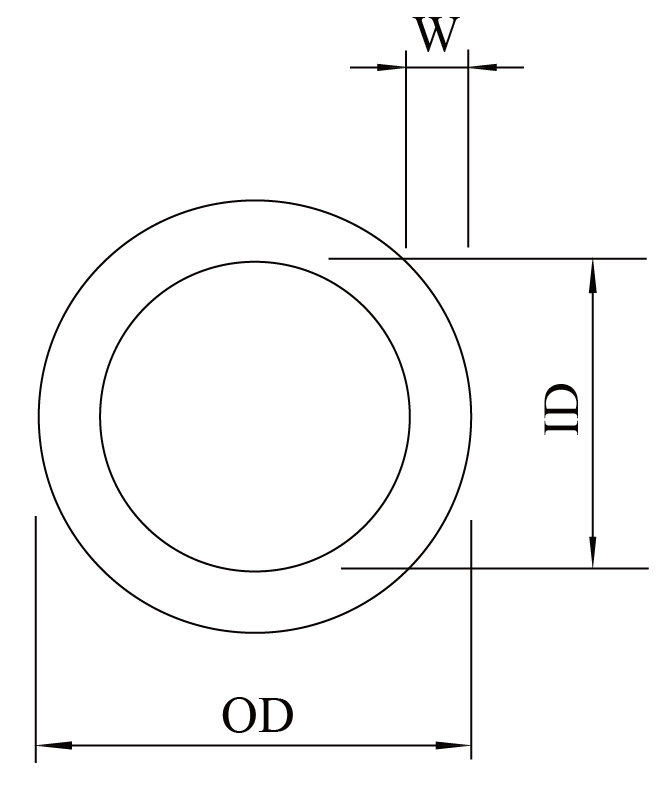

外徑×內徑
Tube size
O.D×I.D
W
Thickness
容許誤差 Tolerance
外徑
O.D
管壁
Thickness
3×2 0.5 ±0.10 ±0.1
4×3 0.5 ±0.10 ±0.1
4×2 1.0 ±0.10 ±0.1
6×4 1.0 ±0.10 ±0.1
8×6 1.0 ±0.12 ±0.1
10×8 1.0 ±0.12 ±0.1
12×10 1.0 ±0.12 ±0.1
19×15.8 1.6 ±0.12 ±0.15
25×22 1.5 ±0.20 ±0.15

Inch Tube Type                    單位:mm
外徑×內徑
Tube size
O.D×I.D
W
Thickness
容許誤差 Tolerance
外徑
O.D
管壁
Thickness
3.18×2.18
(1/8"×0.086)
0.5 ±0.2 ±0.1
6.35×3.95
(1/4"×5/32")
1.2 ±0.2 ±0.1
9.5×6.35
(3/8"×1/4")
1.6
(1/16")
±0.25 ±0.15
12.7×9.5
(1/2"×3/8")
1.6
(1/16")
±0.25 ±0.15
19×15.8
(3/4"×5/8")
1.6
(1/16")
±0.25 ±0.15
25.4×22.2
(1"×7/8")
1.6
(1/16")
±0.25 ±0.15
