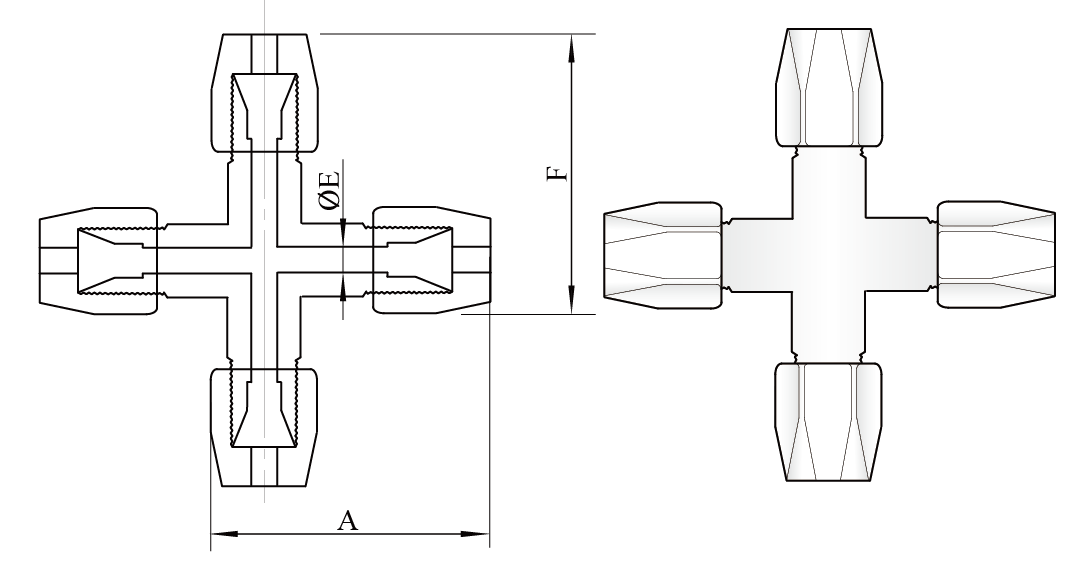

X-TYPE-UNION
Material : TFM
| Mm Tube type | ||||||
|---|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | F | ||
| X-WY111 | 3×2 | 22.8 | 2.1 | 22.8 | ||
| X-WY112 | 4×3 | 22.8 | 3.1 | 22.8 | ||
| X-WY113 | 6×4 | 30 | 4.3 | 30 | ||
| X-WY114 | 8×6 | 35 | 6.3 | 35 | ||
| X-WY115 | 10×8 | 38 | 8.2 | 38 | ||
| X-WY116 | 12×10 | 47 | 10.2 | 47 | ||
| X-WY117 | 19×15.8 | 60 | 16 | 60 | ||
| X-WY118 | 25×22 | 69 | 22.2 | 69 | ||
| Inch Tube type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | ØE | F |
| X-WY119 | 1/8"×0.086" | 22.8 | 2.1 | 22.8 |
| X-WY120 | 1/4"×5/32" | 30 | 4.3 | 30 |
| X-WY121 | 3/8"×1/4" | 38 | 7.6 | 38 |
| X-WY122 | 1/2"×3/8" | 47 | 9.6 | 47 |
| X-WY123 | 3/4"×5/8" | 60 | 16 | 60 |
| X-WY124 | 1"×7/8" | 69 | 22.2 | 69 |
