Y-TYPE-UNION-TEE-INDISE-LYHREAD  |Specifications|TFM Fitting

Y-TYPE-UNION-TEE-INDISE-LYHREAD


Material : TFM



You can count on us to finish all the needs of design for sure.
Mm Tube type

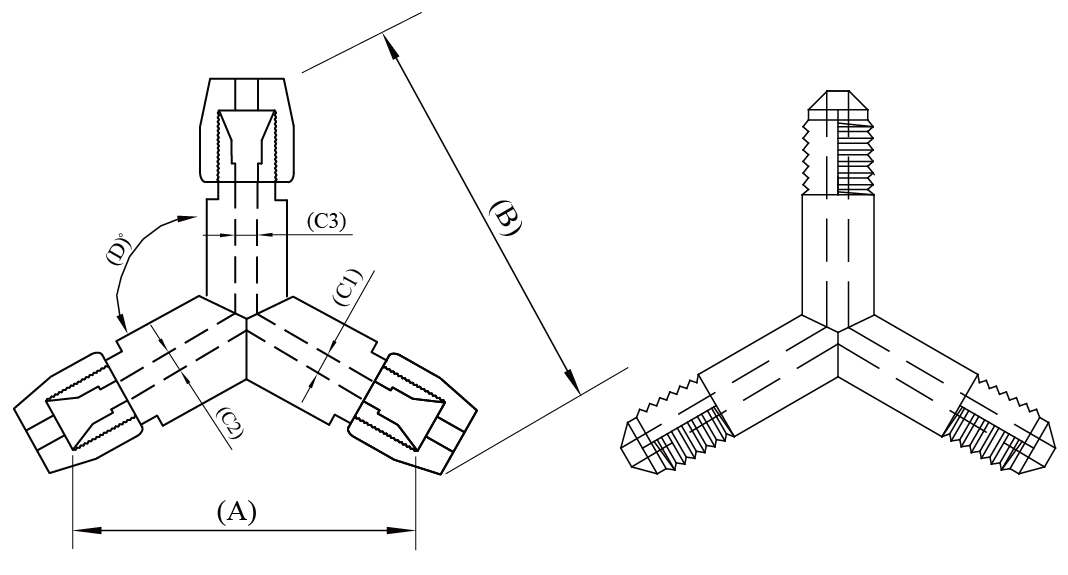

NO. OD×ID (A) (B) ID Ø(C1.C2.C3) (D)
Y–WY801 3×2 24 24 2.1 120°
Y–WY802 4×3 24 24 3.1 120°
Y–WY803 6×4 36 36 4.4 120°
Y–WY804 8×6 42 42 6.5 120°
Y–WY805 10×8 48 48 8 120°
Y–WY806 12×10 56 56 10 120°
Y–WY807 19×15.8 78 78 16 120°
Y–WY808 25×22 69 69 22.2 120°

Inch Tube type
NO. OD×ID (A) (C) ID Ø(C1.C2.C3) (D)
Y–WY809 1/8"×0.086" 24 24 2.1 120°
Y–WY810 1/4"×5/32" 36 36 4.4 120°
Y–WY811 3/8"×1/4" 48 48 8 120°
Y–WY812 1/2"×3/8" 56 56 10 120°
Y–WY813 3/4"×5/8" 66 66 16 120°
Y–WY814 1"×7/8" 78 78 22.2 120°
