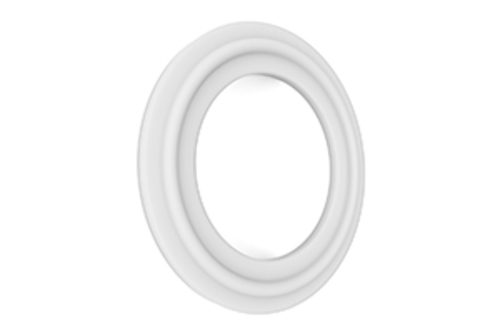

AS TYPE

AS TYPE

Material : PTFE / TFM

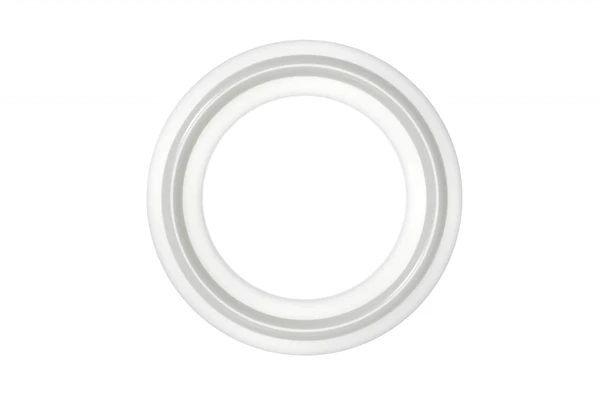

AS-TYPE CLAMP GASKET Product Structure Drawing

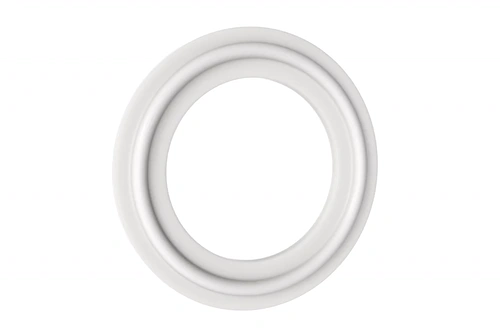

AS-TYPE CLAMP GASKET Appearance Specification

Material : 100% PTFE / TFM

DN	OD	ID	T+0.3
10	34	10	5.5
15	34	16	5.5
20	34	20	5.5
25	50.5	26	5.5
32	50.5	32	5.5
40	50.5	38	5.5
50	64	50	5.5
65	91	66	5.5
80	106	81	5.5
100	119	100	5.5
