PTFE CLAMP GASKET
.webp)
Key Features of Sanitary Clamp Gaskets
Engineered for rapid assembly/disassembly, exceptional cleanability, and superior chemical resistance, our sanitary clamp gaskets are widely utilized across food & beverage, biotechnology, semiconductor, and chemical processing industries. They provide the ultimate sealing solution for high-purity fluid systems where hygiene, process stability, and uncompromising cleanliness are critical.
Key Advantages
- Rapid Connection & Disassembly: Replaces tedious boltings to significantly reduce downtime and streamline maintenance schedules.
- Exceptional Chemical & Thermal Resistance: Formulated to withstand highly corrosive media and extreme temperatures across diverse applications.
- Strict Sanitary Compliance: Engineered in accordance with stringent hygienic standards, making it ideal for food, beverage, and pharmaceutical processes.
- High-Pressure Compatibility: Delivers rock-solid sealing integrity and leak-free performance even under high-pressure fluid conditions.

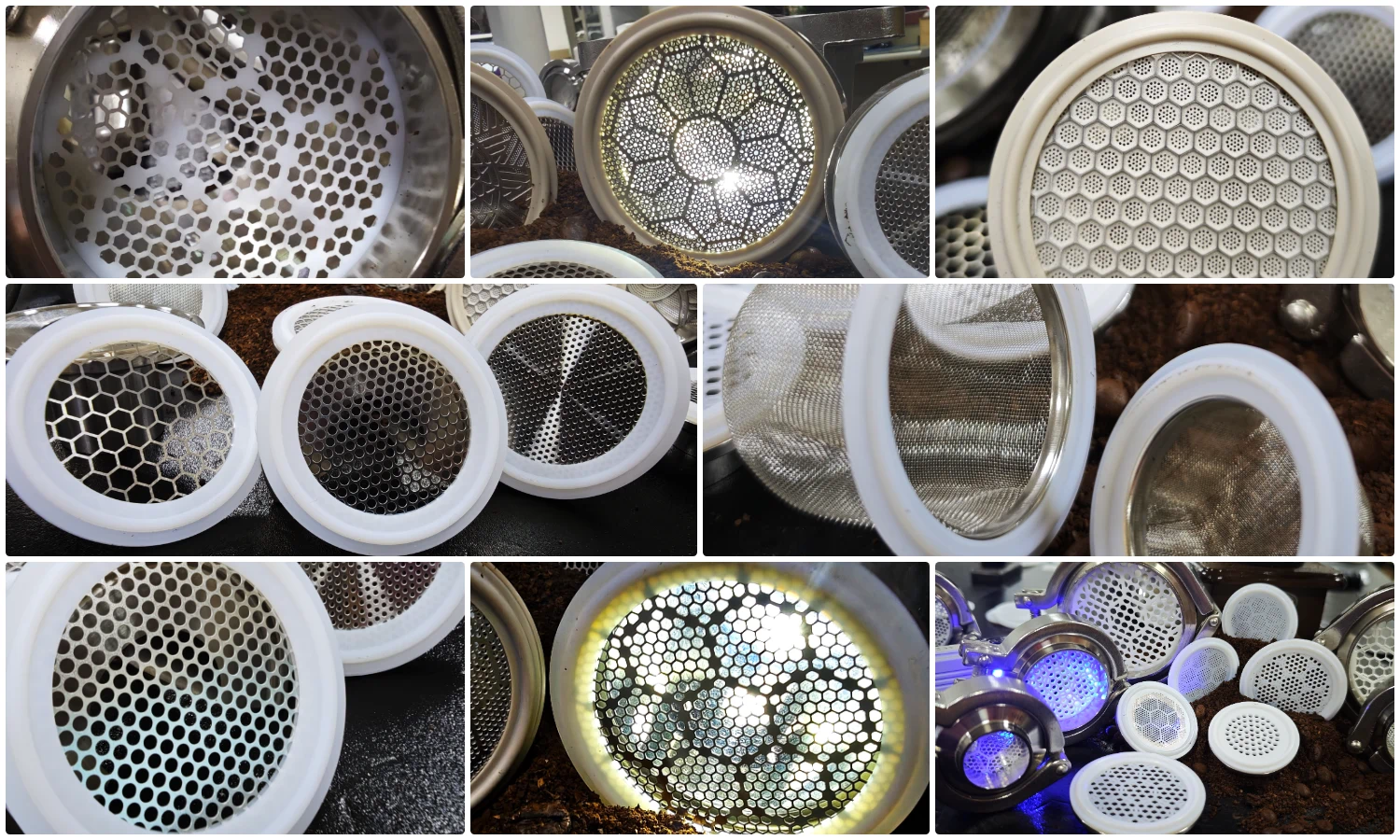

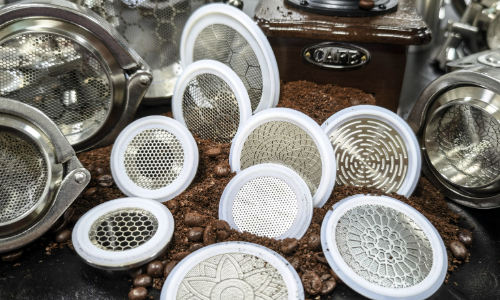

Stainless Steel Mesh Screen Sanitary Gaskets
Stainless steel mesh screen sanitary gaskets are the ideal solution for applications requiring simultaneous sealing and filtration, particularly in high-purity systems highly prone to particulate sedimentation or scaling. Designed for rapid removal, thorough cleaning, and effortless replacement, these gaskets are widely adopted in demanding sectors such as food & beverage, chemical processing, semiconductor manufacturing, and advanced water treatment—significantly boosting maintenance efficiency and long-term system stability.
Material Configurations
- PTFE
- PTFE + EPDM（enhance resilience, elasticity, and sealing integrity）
- PTFE + SUS316 Mesh（dual functionality of premium sealing and particle filtration）
Typical Applications
- Food & Beverage Processing Equipment
- Pharmaceutical & Biotech Process Piping
- Semiconductor & Electronics Manufacturing Systems
- Chemical Processing & Fluid Transfer Pipelines
Flange Gaskets vs. Sanitary Clamp Gaskets
Flange gaskets are engineered for large-diameter, permanent piping installations that require infrequent disassembly. Conversely, sanitary clamp gaskets are the premier choice for environments demanding frequent cleaning, rapid teardown, and reassembly—such as food, beverage, and pharmaceutical manufacturing. To mitigate contamination risks and maximize CIP/SIP (Clean-in-Place/Sterilize-in-Place) efficiency, selecting sanitary clamp fittings along with their corresponding gaskets is highly critical.
LanShiuon Main Product Series

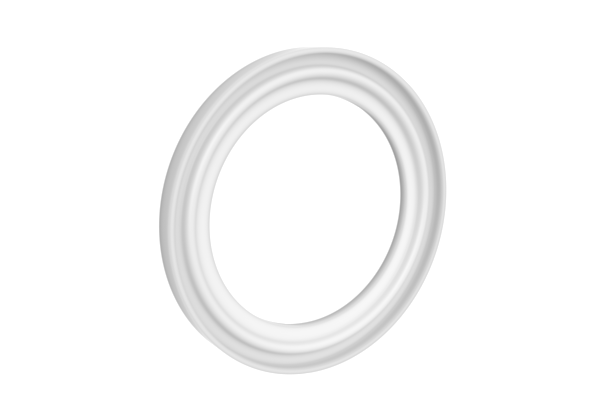

- AS / ES：Single-component PTFE construction offering a streamlined design and cost-effective solution, though with relatively lower elastic recovery.
- BS：PTFE + Rubber Elastomer Composite enhance elastic recovery and sealing service life; reusable across multiple maintenance cycles.

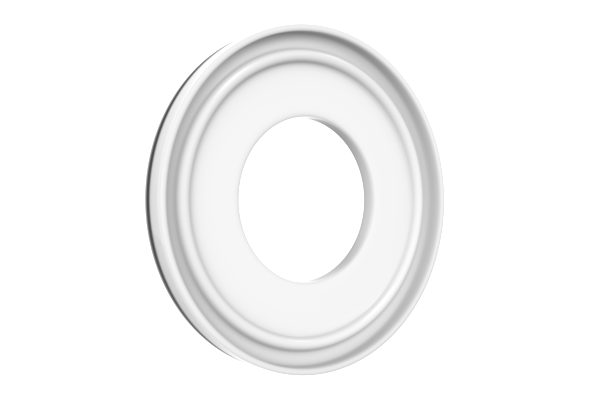

- CS：Features an additional outer PTFE layer to effectively bridge fitting gaps, improve surface conformity, and ensure precision sealing integrity.
- DS：Specially engineered for critical vacuum applications combining sintered PTFE with rubber, delivering superior durability and long-term reusability under repeated assembly.

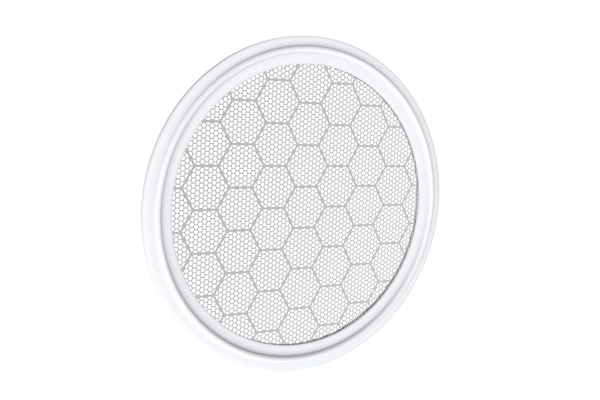

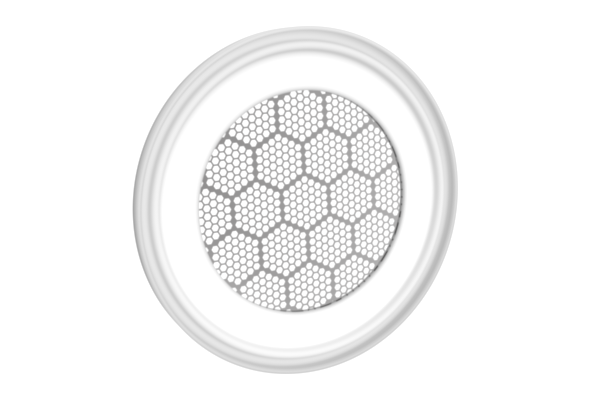

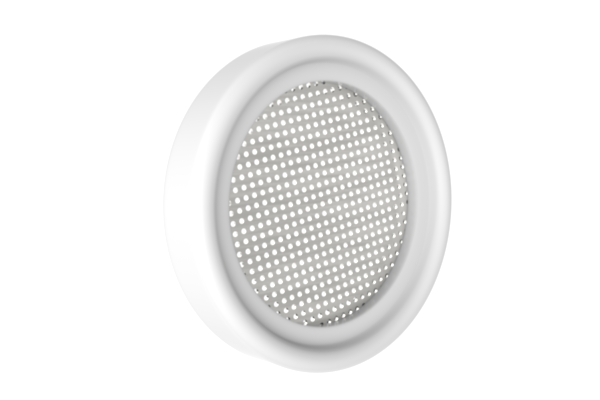

- ASH / ESH / FSH: Integrated with an internal SUS304 precision etched mesh screen to deliver reliable particulate filtration alongside robust sealing.
Product Specifications
Compliant with international ISO / DIN sanitary standards, available in a comprehensive range of nominal pipe sizes：
1/2"、3/4"、1"、1-1/4"、1-1/2"、2"、2-1/2"、3"、3-1/2"、 4"、5"、6"、8"、10"。
