FSH-TYPE

FSH-TYPE

Material : TFM+SUS304 or SUS316

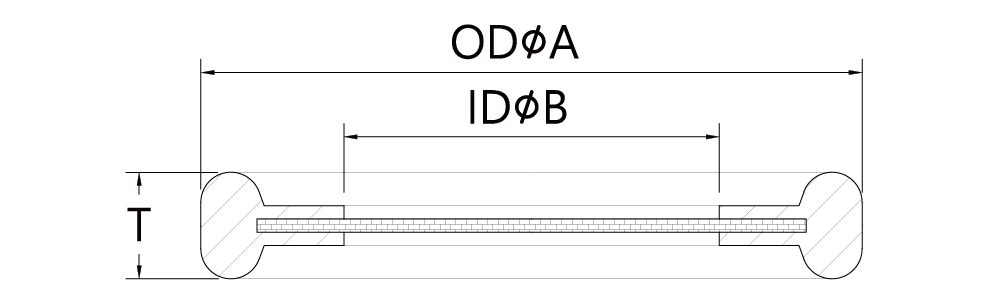

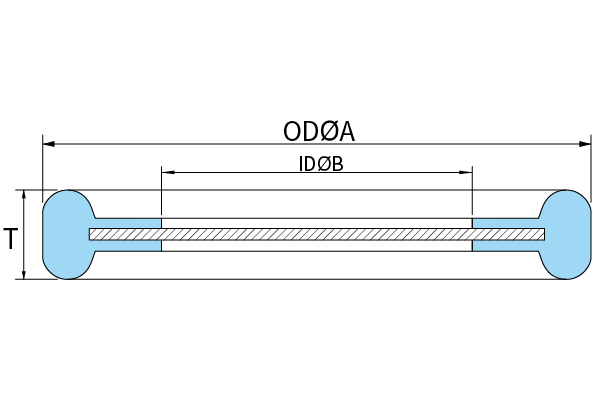

FSH-TYPE CLAMP GASKET Product Structure Drawing

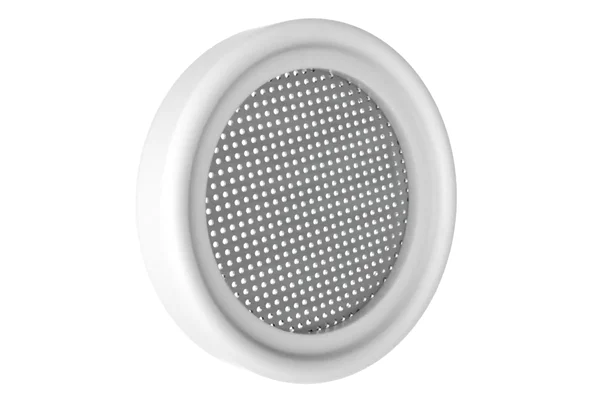

FSH-TYPE CLAMP GASKET Appearance Specification

Material : 100% PTFE / TFM+SUS304 or SUS316
Filter Disc : SUS304 or SUS316

Circular Holes : 0.2 / 0.5 / 0.8 mm

DN	OD	ID	T+0.3
1/4"	21.8	6.35	4.5
1/2"	21.8	9.6	4.5
3/4"	21.8	16	4.5
