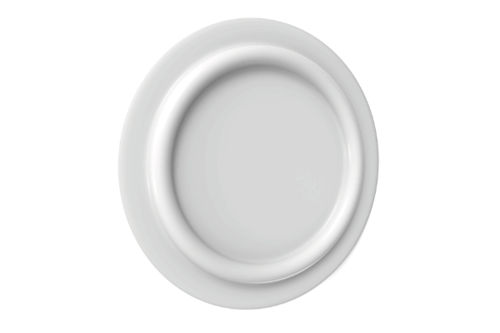

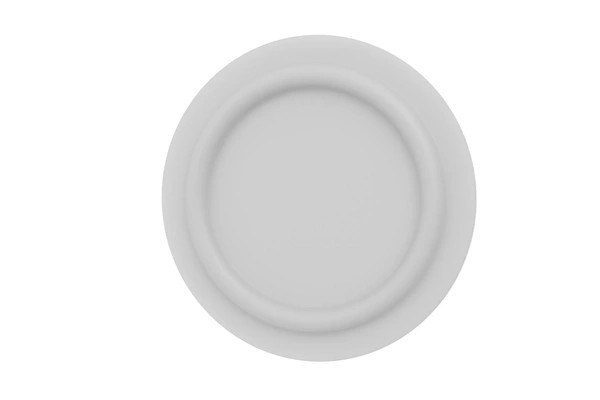

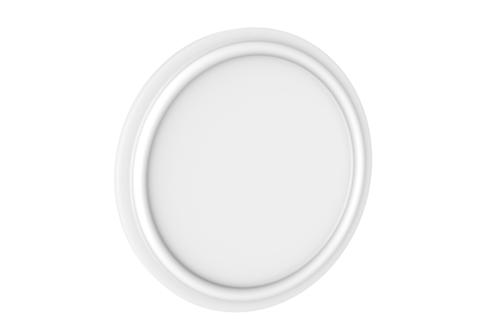

HS TYPE

HS TYPE

Material : PTFE / TFM

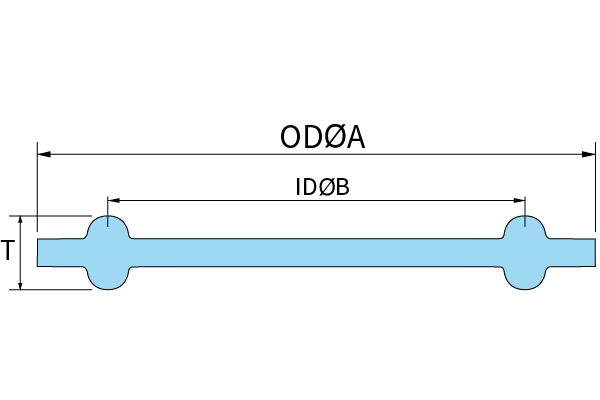

HS-TYPE CLAMP GASKET Product Structure Drawing

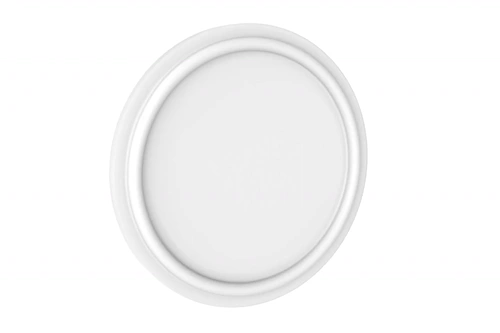

HS-TYPE CLAMP GASKET Appearance Specification

Material : 100% PTFE / TFM

DN	ODØA	ØB	T+0.3
1"	50.5	43.5	5.5
2"	64	56.5	5.5
2.5"	77.5	70.5	5.5
3"	91	83.5	5.5
4"	119	110	5.5
6"	167	156.5	5.5
