PTFE O-RING

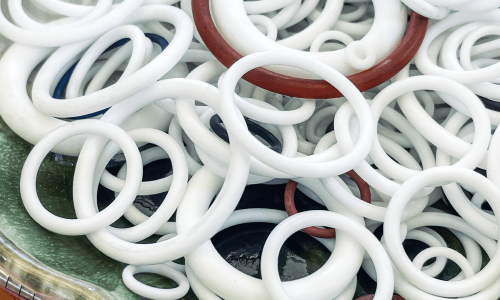

Introduction to PTFE O-Rings

PTFE O-Rings:
Known for outstanding chemical resistance, high temperature endurance, and low friction. Ideal sealing solution for use in chemical, food, semiconductor, and automation industries. Enhances system efficiency and reduces maintenance costs.

Applications

  • Chemical and pharmaceutical industries
  • Semiconductor processes
  • Food and beverage processing
  • Automation systems

Lanshiuon Industrial Co., Ltd. provides high-performance, reliable PTFE O-Ring solutions for various industries.

Comparison of PTFE, Rubber, and PFA Encapsulated O-Rings
Property PTFE O-Ring Rubber O-Ring PFA Encapsulated O-Ring (316L Spring)
Chemical Resistance Excellent (resistant to most chemicals) Moderate (depends on rubber type) Excellent (PFA provides full barrier)
Temperature Range -60°C to +260°C -40°C to +200°C -60°C to +200°C
Elasticity & Compression Set Low (requires design compensation) High (good sealing rebound) High (316L spring supports recovery)
Friction Coefficient Very low (excellent sliding) High (wear-prone) Medium (PFA exterior with spring core)
Cleanliness Level High (ideal for semiconductor use) Moderate (can attract particles) Ultra-high (suitable for ultrapure processes)
Wear Resistance Good (non-elastic contact type) Moderate (varies by application) Good (PFA shell is wear-resistant)
Metal Corrosion Protection None (fully polymer) None (fully elastomer) Yes (316L stainless steel spring)
Recommended Use Semiconductor, food, chemical, vacuum equipment General sealing, low-pressure applications High purity chemicals, vacuum, high pressure

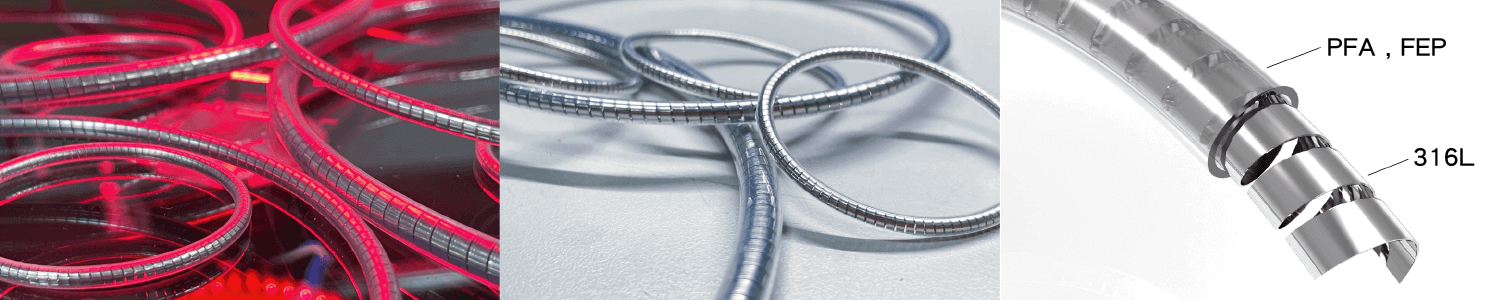

PFA Encapsulated O-Ring

PFA Encapsulation (316L Spring Core)

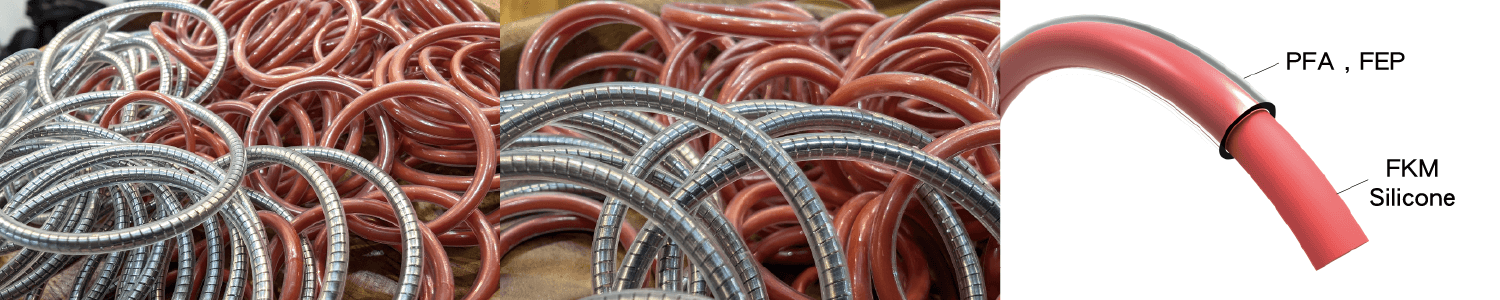

PFA Encapsulation with FKM/Silicone

PFA Encapsulation (FKM / Silicone Core)
