PFA Reducing Union Flare Type
Material : PFA
P·RE-TYPE PFA Reducing Union Fitting
Specifications

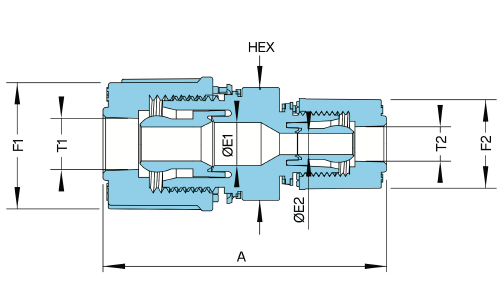

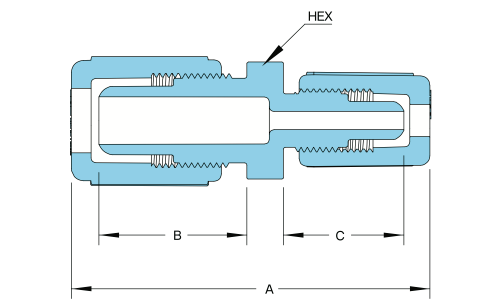

| PFA Flare-Type Reducing Union Fitting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||
| NO. | Tube O.D. | Tube O.D. | Orifice | A | B | C | HEX | ||
| P·RE-WY525 | 3/8" | 1/4" | 3 | 69 | 26 | 24 | 17 | ||
| P·RE-WY526 | 1/2" | 1/4" | 3 | 73 | 30 | 24 | 23 | ||
| P·RE-WY527 | 1/2" | 3/8" | 6 | 73 | 30 | 26 | 23 | ||
| P·RE-WY528 | 3/4" | 1/4" | 3 | 76 | 32 | 24 | 30 | ||
| P·RE-WY529 | 3/4" | 3/8" | 6 | 70 | 32 | 26 | 26 | ||
| P·RE-WY530 | 3/4" | 1/2" | 9 | 80 | 30 | 32 | 30 | ||
| P·RE-WY531 | 1" | 1/4" | 3 | 81 | 24 | 36 | 36 | ||
| P·RE-WY532 | 1" | 3/8" | 6 | 85 | 36 | 26 | 36 | ||
| P·RE-WY533 | 1" | 1/2" | 9 | 89 | 37 | 30 | 36 | ||
| P·RE-WY534 | 1" | 3/4" | 16 | 90 | 36 | 32 | 36 | ||
| P·RE-WY535 | 1-1/4" | 1" | 22 | 110 | 44 | 38 | 44 | ||
| P·RE-WY536 | 1-1/2" | 1" | 22 | 144 | 55 | 38 | 61 | ||
| P·RE-WY537 | 1-1/2" | 1-1/4" | 28 | 155 | 55 | 47 | 61 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Fusion-welded design ensures highly stable and robust joints with excellent sealing integrity.
Pressure / Temperature Ratings Chart
