PFA Union Elbow
Material : PFA
P·L-TYPE PFA Equal Elbow Union Fitting
Flare Type, Insert Type
Specifications

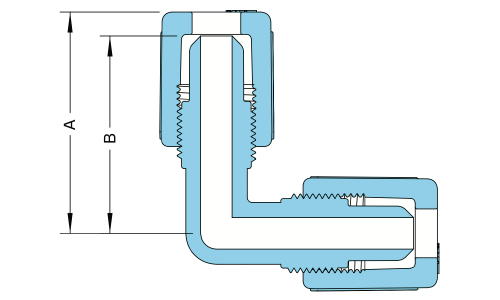

| PFA Flare-Type Equal Elbow Union Fitting | |||||||
|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||
| NO. | Tube O.D. | Orifice | A | B | |||
| P·L-WY018 | 6mm | 4 | 42 | 37 | |||
| P·L-WY019 | 1/4" | 3 | 42 | 37 | |||
| P·L-WY020 | 3/8" | 6 | 44 | 39 | |||
| P·L-WY021 | 1/2" | 9 | 45 | 41 | |||
| P·L-WY022 | 3/4" | 16 | 56 | 50 | |||
| P·L-WY023 | 1" | 22 | 69 | 60 | |||
| P·L-WY024 | 1-1/4" | 28 | 88 | 78 | |||
| P·L-WY025 | 1-1/2" | 33 | 109 | 94 | |||
Specifications

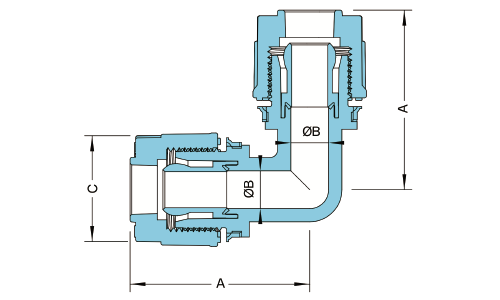

| PFA Insert-Type Equal Elbow Union Fitting | |||||||
|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||
| NO. | Tube O.D. | A | B | C | |||
| P·L-WY026 | 1/8" | 22 | 2.2 | 11 | |||
| P·L-WY027 | 1/4" | 33 | 4 | 15 | |||
| P·L-WY028 | 3/8" | 40 | 8 | 22 | |||
| P·L-WY029 | 1/2" | 47 | 10 | 27 | |||
| P·L-WY030 | 3/4" | 55 | 16 | 37 | |||
| P·L-WY031 | 1" | 70 | 22 | 47 | |||
| P·L-WY032 | 1-1/2" | 106 | 33 | 67 | |||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
