PFA Male NPT Elbow
Material : PFA

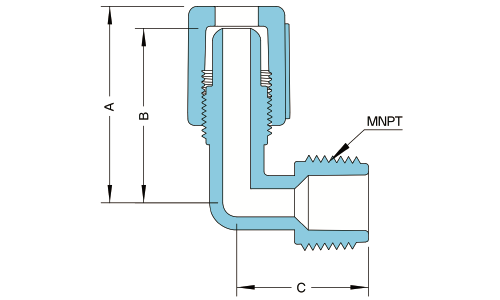

P·LNPT-TYPE PFA Male NPT Elbow Fitting
Specifications
| inch Tube Type | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | NPT Size | Orifice | A | B | C | ||
| P·LNPT-WY0010 | 1/4" | 1/8" | 3 | 42 | 37 | 26 | ||
| P·LNPT-WY0011 | 1/4" | 1/4" | 3 | 42 | 37 | 27 | ||
| P·LNPT-WY0012 | 1/4" | 3/8" | 3 | 42 | 37 | 27 | ||
| P·LNPT-WY0013 | 1/4" | 1/2" | 3 | 42 | 37 | 32 | ||
| P·LNPT-WY0014 | 3/8" | 1/8" | 3 | 44 | 39 | 26 | ||
| P·LNPT-WY0015 | 3/8" | 1/4" | 3 | 44 | 39 | 27 | ||
| P·LNPT-WY0016 | 3/8" | 3/8" | 6 | 44 | 39 | 27 | ||
| P·LNPT-WY0017 | 3/8" | 3/8" | 6 | 44 | 39 | 30 | ||
| P·LNPT-WY0018 | 3/8" | 1/2" | 6 | 44 | 39 | 34 | ||
| P·LNPT-WY0019 | 1/2" | 1/8" | 3 | 45 | 41 | 26 | ||
| P·LNPT-WY0020 | 1/2" | 1/4" | 3 | 45 | 41 | 27 | ||
| P·LNPT-WY0021 | 1/2" | 3/8" | 6 | 45 | 41 | 27 | ||
| P·LNPT-WY0022 | 1/2" | 1/2" | 9 | 45 | 41 | 30 | ||
| P·LNPT-WY0023 | 1/2" | 3/4" | 9 | 45 | 41 | 34 | ||
| P·LNPT-WY0024 | 1/2" | 1" | 9 | 45 | 41 | 45 | ||
| P·LNPT-WY0025 | 3/4" | 3/8" | 6 | 56 | 50 | 32 | ||
| P·LNPT-WY0026 | 3/4" | 1/2" | 9 | 56 | 50 | 34 | ||
| P·LNPT-WY0027 | 3/4" | 3/4" | 16 | 56 | 50 | 35 | ||
| P·LNPT-WY0028 | 3/4" | 1" | 16 | 56 | 50 | 45 | ||
| P·LNPT-WY0029 | 1" | 1/2" | 9 | 69 | 60 | 41 | ||
| P·LNPT-WY0030 | 1" | 3/4" | 16 | 69 | 60 | 41 | ||
| P·LNPT-WY0031 | 1" | 1" | 22 | 69 | 60 | 45 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Fusion-welded design ensures highly stable and robust joints with excellent sealing integrity.
