PFA Equal Bulkhead Union
Material : PFA
P·P-TYPE PFA Panel Through Equal Union Fitting
Flare Type, Insert Type

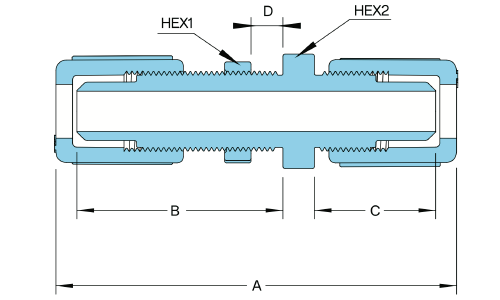

Specifications
| PFA Flare-Type Panel Through Equal Union Fitting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||||
| NO. | Tube O.D. | Orifice | A | B | C | D(Max) | Hex1 | Hex2 | MinimuPanel HoleDiameter |
|
| P·P-WY120 | 1/4" | 3 | 85 | 44 | 24 | 12 | 19 | 16 | 12 | |
| P·P-WY121 | 3/8" | 6 | 90 | 46 | 26 | 12 | 21 | 20 | 16 | |
| P·P-WY122 | 1/2" | 9 | 96 | 49 | 29 | 12 | 23 | 23 | 19 | |
| P·P-WY123 | 3/4" | 16 | 103 | 52 | 33 | 12 | 33 | 30 | 25 | |
| P·P-WY124 | 1" | 22 | 117 | 56 | 37 | 12 | 44 | 41 | 36 | |

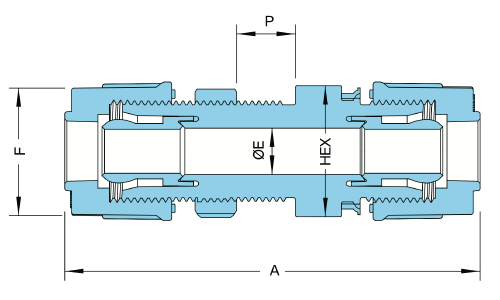

Specifications
| PFA Insert-Type Panel Through Equal Union Fitting | ||||||||
|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||
| NO. | Tube O.D. | A | ØE | F | P(Max) | Hex | MinimuPanel HoleDiameter |
|
| P·P-WY125 | 4mm | 53 | 3 | 12 | 7 | 14 | 8 | |
| P·P-WY126 | 1/4" | 60 | 4 | 15 | 7 | 15 | 12 | |
| P·P-WY127 | 3/8" | 74 | 8 | 22 | 7 | 21 | 18 | |
| P·P-WY128 | 1/2" | 90 | 10 | 27 | 12 | 25 | 22 | |
| P·P-WY129 | 3/4" | 95 | 16 | 37 | 12 | 33 | 31 | |
| P·P-WY130 | 1" | 125 | 22 | 47 | 10 | 43 | 40 | |
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
