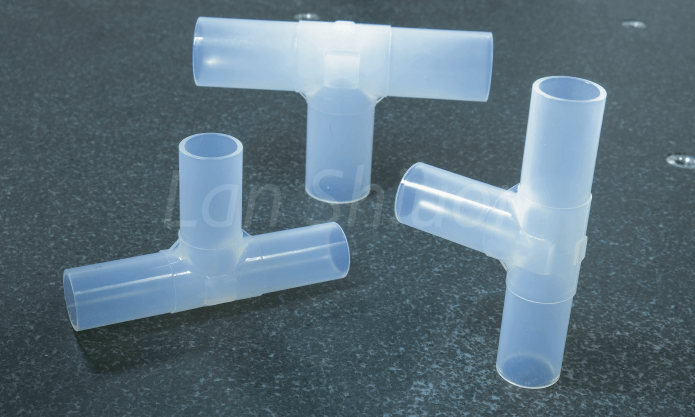

PFA Fusible Union Tee
Material : PFA
P·TW-TYPE PFA Welded Equal Tee Fitting
Specifications
| inch Tube Type | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | A | ØB | ØC | D | E | ||
| P·TW-WY820 | 1/4" | 77 | 6 | 3 | 25 | 38 | ||
| P·TW-WY821 | 3/8" | 81 | 9 | 6 | 27 | 40 | ||
| P·TW-WY822 | 1/2" | 95 | 12 | 9 | 34 | 45 | ||
| P·TW-WY823 | 3/4" | 105 | 19 | 15 | 35 | 52 | ||
| P·TW-WY824 | 1" | 127 | 25 | 22 | 39 | 63 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Fusion-welded design ensures highly stable and robust joints with excellent sealing integrity.
| Material | PFA | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Operating Temperature |
+200℃ | |||||||||
| Maximum Working Pressure |
Nominal Diameter (inch) | 1-1/2" | 1-1/4" | 1" | 3/4" | 1/2" | 3/8" | 1/4" | ||
| +20℃ (Mpa) | 0.4 | 0.6 | 0.4 | 0.6 | 0.9 | 1.0 | 1.0 | |||
| +200℃ (Mpa) | 0.15 | 0.26 | 0.15 | 0.26 | 0.39 | 0.43 | 0.43 | |||
