PFA Reducing Bulkhead Union
Material : PFA
P·RP-TYPE PFA Panel Reducing Straight Union
Flare Type, Insert Type
Specifications

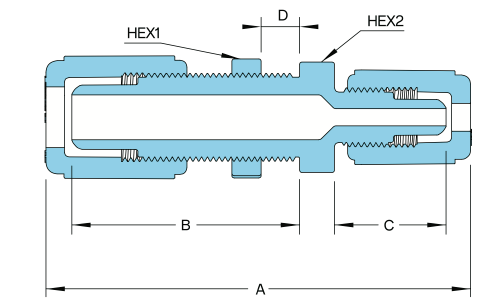

| PFA Flare-Type Panel Reducing Straight Union | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||||||
| NO. | Tube O.D. | Tube O.D. | Orifice | A | B | C | D(Max) | Hex1 | Hex2 | MinimuPanel HoleDiameter |
||
| P·RP-WY120 | 3/8" | 1/4" | 3 | 90 | 46 | 24 | 12 | 21 | 20 | 16 | ||
| P·RP-WY121 | 1/2" | 1/4" | 3 | 92 | 49 | 24 | 12 | 23 | 23 | 19 | ||
| P·RP-WY122 | 1/2" | 3/8" | 6 | 93 | 49 | 26 | 12 | 23 | 23 | 19 | ||
| P·RP-WY123 | 3/4" | 1/2" | 9 | 102 | 52 | 29 | 12 | 33 | 30 | 25 | ||
| P·RP-WY124 | 1" | 3/4" | 16 | 113 | 58 | 33 | 12 | 44 | 41 | 36 | ||
Specifications

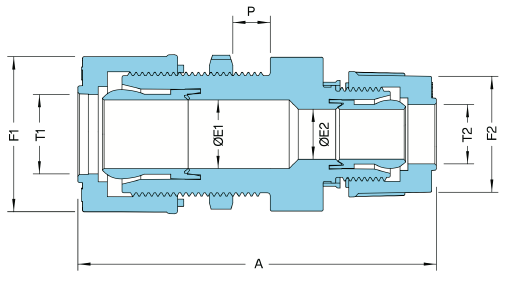

| PFA Insert-Type Panel Reducing Straight Union | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||||||
| NO. | Tube O.D. | Tube O.D. | A | F1 | F2 | ØE1 | ØE2 | T1 | T2 | P(Max) | MinimuPanel HoleDiameter |
||
| P·RP-WY125 | 1" | 3/4" | 110 | 47 | 37 | 22 | 16 | 25 | 19 | 12 | 40 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
