PFA Male BSPT(R/RC) Elbow
Material : PFA
P·LRC-TYPE PFA Male RC Elbow Fitting
Flare Type, Insert Type
Specifications

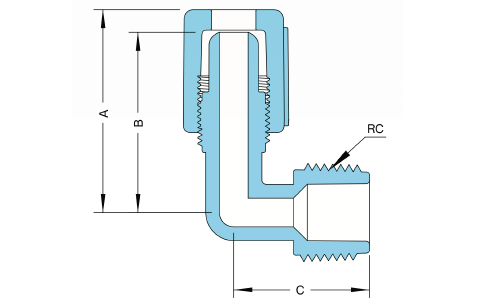

| PFA Flare-Type Male RC Elbow Fitting | ||||||||
|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||
| NO. | Tube O.D. | RC Size | Orifice | A | B | C | ||
| P·LRC-WY0010 | 1/4" | 1/8" | 3 | 42 | 37 | 22 | ||
| P·LRC-WY0011 | 1/4" | 1/4" | 3 | 42 | 37 | 27 | ||
| P·LRC-WY0012 | 1/4" | 3/8" | 3 | 42 | 37 | 27 | ||
| P·LRC-WY0013 | 1/4" | 1/2" | 3 | 42 | 37 | 32 | ||
| P·LRC-WY0014 | 3/8" | 1/4" | 3 | 44 | 39 | 27 | ||
| P·LRC-WY0015 | 3/8" | 3/8" | 6 | 44 | 39 | 27 | ||
| P·LRC-WY0016 | 3/8" | 1/2" | 6 | 44 | 39 | 27 | ||
| P·LRC-WY0017 | 1/2" | 1/4" | 3 | 45 | 41 | 27 | ||
| P·LRC-WY0018 | 1/2" | 3/8" | 6 | 45 | 41 | 27 | ||
| P·LRC-WY0019 | 1/2" | 1/2" | 9 | 45 | 41 | 30 | ||
| P·LRC-WY0020 | 1/2" | 3/4" | 9 | 45 | 41 | 34 | ||
| P·LRC-WY0021 | 3/4" | 1/2" | 9 | 56 | 50 | 34 | ||
| P·LRC-WY0022 | 3/4" | 3/4" | 16 | 56 | 50 | 35 | ||
| P·LRC-WY0023 | 3/4" | 1" | 16 | 56 | 50 | 45 | ||
| P·LRC-WY0024 | 1" | 3/4" | 16 | 69 | 60 | 41 | ||
| P·LRC-WY0025 | 1" | 1" | 22 | 69 | 60 | 45 | ||
Specifications

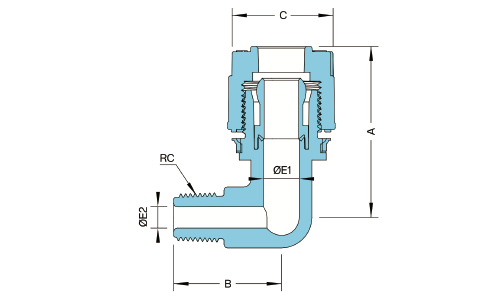

| PFA Insert-Type Male RC Elbow Fitting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||
| NO. | Tube O.D. | RC Size | A | B | C | ØE1 | ØE2 | ||
| P·LRC-WY0026 | 1/4" | 1/8" | 33 | 20 | 15 | 4 | 4 | ||
| P·LRC-WY0027 | 1/4" | 1/4" | 33 | 25 | 15 | 4 | 4 | ||
| P·LRC-WY0028 | 3/8" | 1/4" | 40 | 27 | 27 | 8 | 8 | ||
| P·LRC-WY0029 | 3/8" | 3/8" | 40 | 27 | 22 | 8 | 8 | ||
| P·LRC-WY0030 | 3/8" | 1/2" | 40 | 32 | 22 | 8 | 8 | ||
| P·LRC-WY0031 | 1/2" | 1/4" | 47 | 30 | 27 | 10 | 6 | ||
| P·LRC-WY0032 | 1/2" | 1/2" | 47 | 34 | 27 | 10 | 10 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Fusion-welded design ensures highly stable and robust joints with excellent sealing integrity.
Pressure / Temperature Ratings Chart
