PFA Female NPT Connector
Material : PFA
P·DFNPT-TYPE PFA Female NPT Straight Fitting
Flare Type, Insert Type

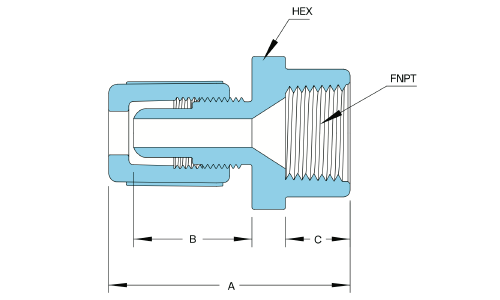

Specifications
| PFA Flare-Type Female NPT Straight Fitting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||
| NO. | Tube O.D. | NPT Size | Orifice | A | B | C | HEX | ||
| P·DFNPT-WY0010 | 1/4" | 1/4" | 3 | 50 | 24 | 14 | 19 | ||
| P·DFNPT-WY0011 | 1/4" | 3/8" | 3 | 53 | 24 | 16 | 23 | ||
| P·DFNPT-WY0012 | 1/4" | 1/2" | 3 | 52 | 24 | 14 | 30 | ||
| P·DFNPT-WY0013 | 3/8" | 1/4" | 3 | 52 | 26 | 14 | 19 | ||
| P·DFNPT-WY0014 | 3/8" | 3/8" | 6 | 56 | 26 | 16 | 23 | ||
| P·DFNPT-WY0015 | 3/8" | 1/2" | 6 | 54 | 26 | 14 | 30 | ||
| P·DFNPT-WY0016 | 1/2" | 1/4" | 3 | 56 | 29 | 14 | 19 | ||
| P·DFNPT-WY0017 | 1/2" | 3/8" | 6 | 58 | 29 | 16 | 23 | ||
| P·DFNPT-WY0018 | 1/2" | 1/2" | 9 | 56 | 28 | 14 | 30 | ||
| P·DFNPT-WY0019 | 1/2" | 3/4" | 9 | 58 | 29 | 16 | 35 | ||
| P·DFNPT-WY0020 | 3/4" | 1/4" | 3 | 63 | 32 | 16 | 30 | ||
| P·DFNPT-WY0021 | 3/4" | 3/8" | 6 | 63 | 33 | 16 | 30 | ||
| P·DFNPT-WY0022 | 3/4" | 1/2" | 9 | 60 | 32 | 14 | 34 | ||
| P·DFNPT-WY0023 | 3/4" | 3/4" | 16 | 62 | 32 | 16 | 35 | ||

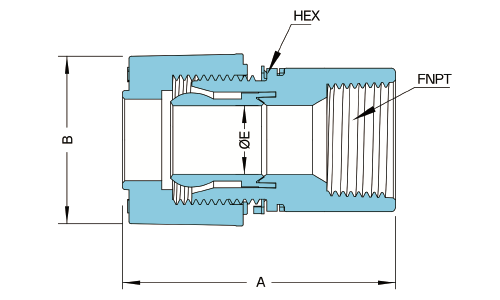

Specifications
| PFA Insert-Type Female NPT Straight Fitting | ||||||||
|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||
| NO. | Tube O.D. | NPT Size | A | B | HEX | ØE | ||
| P·DFNPT-WY0024 | 1" | 3/4" | 73 | 49 | 43 | 22 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
