PFA Male NPT Connector
Material : PFA

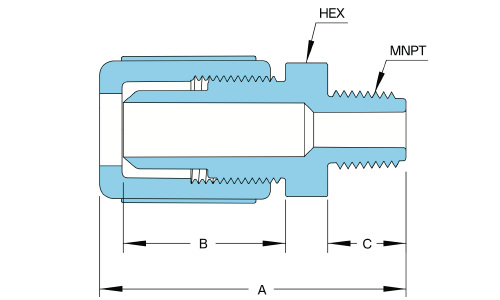

P·DNPT-TYPE PFA Male NPT Straight Fitting
Specifications
| inch Tube Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | NPT Size | Orifice | A | B | C | HEX | ||
| P·DNPT-WY0010 | 1/4" | 1/8" | 3 | 48 | 24 | 11 | 15 | ||
| P·DNPT-WY0011 | 1/4" | 1/4" | 3 | 50 | 24 | 14 | 15 | ||
| P·DNPT-WY0012 | 1/4" | 3/8" | 3 | 51 | 24 | 14 | 17 | ||
| P·DNPT-WY0013 | 1/4" | 1/2" | 3 | 53 | 24 | 16 | 23 | ||
| P·DNPT-WY0014 | 1/4" | 3/4" | 3 | 53 | 24 | 17 | 30 | ||
| P·DNPT-WY0015 | 1/4" | 1" | 3 | 59 | 24 | 21 | 36 | ||
| P·DNPT-WY0016 | 3/8" | 1/8" | 3 | 53 | 26 | 14 | 20 | ||
| P·DNPT-WY0017 | 3/8" | 1/4" | 3 | 53 | 26 | 14 | 20 | ||
| P·DNPT-WY0018 | 3/8" | 3/8" | 6 | 53 | 26 | 14 | 20 | ||
| P·DNPT-WY0019 | 3/8" | 1/2" | 6 | 55 | 26 | 16 | 23 | ||
| P·DNPT-WY0020 | 3/8" | 3/4" | 6 | 56 | 26 | 16 | 30 | ||
| P·DNPT-WY0021 | 3/8" | 1" | 6 | 60 | 26 | 21 | 36 | ||
| P·DNPT-WY0022 | 1/2" | 1/8" | 3 | 56 | 29 | 13 | 23 | ||
| P·DNPT-WY0023 | 1/2" | 1/4" | 3 | 54 | 29 | 14 | 23 | ||
| P·DNPT-WY0024 | 1/2" | 3/8" | 6 | 54 | 29 | 14 | 23 | ||
| P·DNPT-WY0025 | 1/2" | 1/2" | 9 | 57 | 29 | 16 | 23 | ||
| P·DNPT-WY0026 | 1/2" | 3/4" | 9 | 59 | 29 | 17 | 30 | ||
| P·DNPT-WY0027 | 1/2" | 1" | 9 | 64 | 29 | 22 | 36 | ||
| P·DNPT-WY0028 | 3/4" | 3/8" | 6 | 60 | 32 | 14 | 30 | ||
| P·DNPT-WY0029 | 3/4" | 1/2" | 9 | 62 | 32 | 17 | 30 | ||
| P·DNPT-WY0030 | 3/4" | 3/4" | 16 | 63 | 32 | 17 | 30 | ||
| P·DNPT-WY0031 | 3/4" | 1" | 16 | 67 | 32 | 21 | 36 | ||
| P·DNPT-WY0032 | 1" | 1/2" | 9 | 70 | 37 | 17 | 38 | ||
| P·DNPT-WY0033 | 1" | 3/4" | 16 | 70 | 37 | 17 | 38 | ||
| P·DNPT-WY0034 | 1" | 1" | 22 | 75 | 37 | 22 | 38 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
