PFA Male NPT Connector Insert Type
Material : PFA

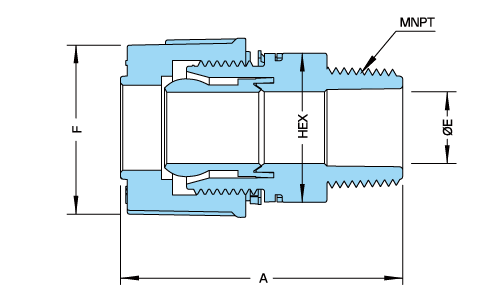

P·DNPT-TYPE PFA Male NPT Straight Fitting
Specifications
| inch Tube Type | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | NPT Size | A | F | HEX | ØE | ||
| 1/8" | 1/8" | 31 | 12 | 12 | 2 | |||
| 1/4" | 1/8" | 36 | 15 | 15 | 4 | |||
| 1/4" | 1/4" | 41 | 15 | 15 | 4 | |||
| 3/8" | 3/8" | 47 | 22 | 21 | 8 | |||
| 3/8" | 1/2" | 49 | 22 | 21 | 8 | |||
| 1/2" | 1/4" | 51 | 27 | 25 | 6 | |||
| 1/2" | 3/8" | 50 | 27 | 25 | 10 | |||
| 1/2" | 1/2" | 53 | 27 | 25 | 10 | |||
| 1/2" | 3/4" | 56 | 27 | 25 | 10 | |||
| 3/4" | 1/2" | 62 | 37 | 33 | 16 | |||
| 3/4" | 3/4" | 62 | 37 | 33 | 16 | |||
| 3/4" | 1" | 69 | 37 | 33 | 16 | |||
| 1" | 3/4" | 73 | 47 | 43 | 16 | |||
| 1" | 1" | 78 | 47 | 43 | 22 | |||
| 1-1/2" | 1-1/2" | 112 | 67 | 62 | 33 | |||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
